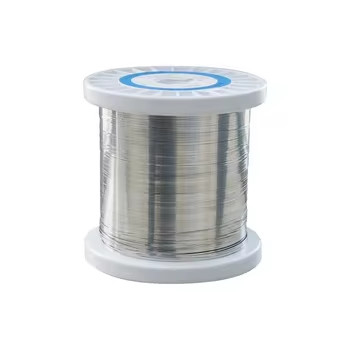

FeCrAl Alloy Wire for High Temperature Heating Elements

Name: FeCrAl Alloy Wire for High Temperature Heating Elements
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 0Cr27Al7Mo2
Price: 4.50 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 0Cr27Al7Mo2

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 3.5-5.5USD/Kg

Packaging Details: On Spool,In Coil

Delivery Time: 5-10 days

Payment Terms: L/C,T/T,Western Union

Supply Ability: 20, 000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                  Long Lifespan FeCrAl Alloy, Bright Surface FeCrAl Alloy


Standard:	GB/ASTM/JIS/BIS/DIN	Product Category:	FeCrAl Alloy
Surface:	Bright, Oxidation	Product Name:	FeCrAl Alloy For High Temperature Applications In Challenging Temperatures
Serves:	Small Order Accepted

Standard:	GB/ASTM/JIS/BIS/DIN
Product Category:	FeCrAl Alloy
Surface:	Bright, Oxidation
Product Name:	FeCrAl Alloy For High Temperature Applications In Challenging Temperatures
Serves:	Small Order Accepted

Description

FeCrAl Alloy Wire for High Temperature Heating Elements

FeCrAl Soft Magnetic Alloy Wire Heating Elements Resistance Wire

Product Specifications

Attribute	Value
Standard	GB/ASTM/JIS/BIS/DIN
Product Category	FeCrAl Alloy
Surface	Bright, Oxidation
Product Name	FeCrAl Alloy for High Temperature Applications in Challenging Temperatures
Serves	Small Order Accepted

Product Description

Fe-Cr-Al alloy wire features high resistance, low temperature coefficient of resistance, high working temperature, and excellent corrosion resistance, especially under high temperature conditions. Widely used in household electrical appliances, electric furnaces, and far infrared ray devices.

Available Fe-Cr-Al Alloy Types

1Cr13Al4, OCr19Al3, OCr21Al4, OCr23Al5, OCr25Al5, OCr21Al6, OCr21Al6Nb, OCr27Al7Mo2

Available Forms & Sizes

Wire: 0.001mm - 10mm diameter
Ribbon: 0.05×0.2mm - 2.0×6.0mm
Strip: 0.5×5.0mm - 5.0×250mm
Custom furnace spring wire/strip according to customer requirements

Key Features of FeCrAl Alloy

High resistance
Low temperature coefficient of resistance
High working temperature capability
Excellent corrosion resistance, especially under high temperature
Superior anti-carburizing performance
Resistance to sulfur pollution in atmosphere and surface
Long service life

Technical Specifications

Grade	Highest Temperature	Resistivity	Melting Point	Tensile Strength (MPa)	Elongation (%)
0Cr21Al4	1100°C	1.23±0.06μΩ.m	1500°C	750	≥12
0Cr25Al5	1250°C	1.42±0.07μΩ.m	1500°C	750	≥12
0Cr23Al5	1300°C	1.35±0.06μΩ.m	1500°C	750	≥12
0Cr21Al6NbCo	1350°C	1.43±0.07μΩ.m	1510°C	750	≥12
0Cr27Al7Mo2	1400°C	1.53±0.07μΩ.m	1520°C	750	≥10

Note: The specific unit price is based on the actual price of iron chromium aluminum on the day.
