Product Details
Brand Name: TANKII
Certification: ISO9001
Payment & Shipping Terms
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements) For the Thermal spray wires , we pack the wires on spools. Then put s
Delivery Time: 7 work days
Payment Terms: T/T, Western Union, L/C
Supply Ability: 2000 tons per month
Place Of Origin: |
China (Mainland) |
Model Number: |
Zn 99.99 |
Application: |
Industry |
Shape: |
Round Wire |
Material: |
Pure Zinc |
Chemical Composition: |
Zinc 99.99 |
Certificate: |
ISO9001 |
Standard: |
GB |
Place Of Origin: |
China (Mainland) |
Model Number: |
Zn 99.99 |
Application: |
Industry |
Shape: |
Round Wire |
Material: |
Pure Zinc |
Chemical Composition: |
Zinc 99.99 |
Certificate: |
ISO9001 |
Standard: |
GB |

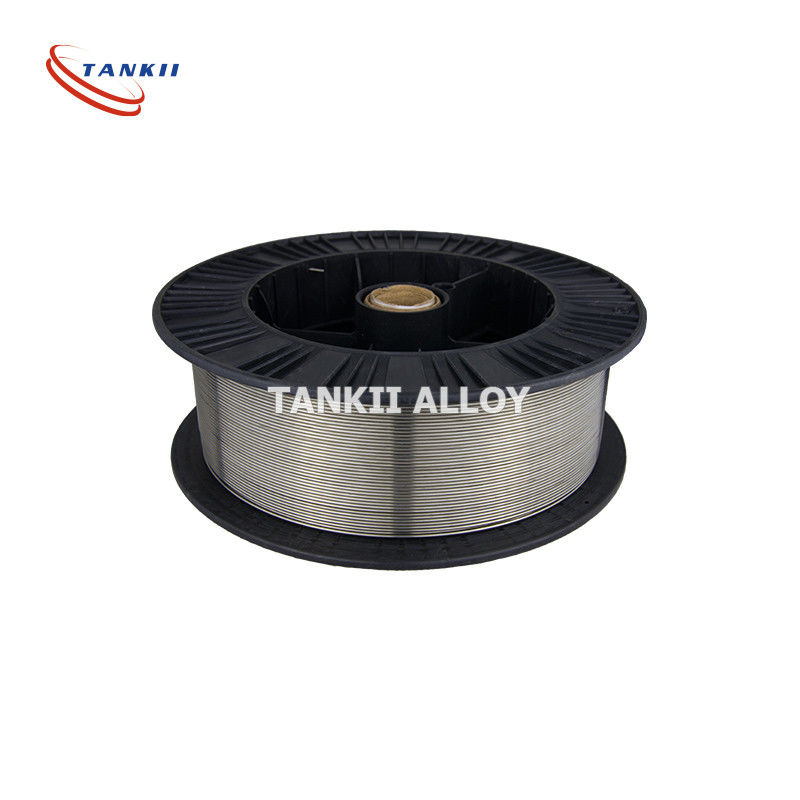

Electric Arc Spray Zinc Wire 99.99% Purity for Thermal Spraying Coating
Production Overview:
Electric arc spray wire / Thermal spraying with pure zinc wire was 99.99%, when the atmospheric conditions is not in serious corrosion (such as dry weather), can reduce the the purity to 99.95%.Zinc has good plasticity, can draw wire material, used for wire arc spraying and flame spraying.When in the flame spraying, purity of zinc in the process of spraying generally will not change.
Specification
Zinc wire for thermal spray
Composition : Zn 99.995%
Diameter : 0.5-4.76mm
Package : 20-50kg/bundle ; 20kg/Spool ;50-250kg/drum ; 500kgs/barrel
Applications
The thermal spraying zinc wire is used in a variety of applications, such as:
1. Galvanized steel pipe (galvanized steel square tube, galvanized round pipe, high frequency welded pipe, greenhouse pipe)
2. Wind power industry (wind turbine, wind turbine hub spray zinc, wind power flange spraying zinc, wind tower, wind turbine components, wind power bearing seat)
3.Iron spray zinc anti-corrosion
4. Ductile iron pipe / underground pipeline
5. Container industry -- refrigerated containers
6. Electric power tower (power pole)
7. Metallized film capacitor spray zinc
8. The surface of the bridge spray zinc corrosion (bridge wind braze spray zinc, steel beam sprayed zinc)
9. Traffic equipment fence spray zinc (road and bridge fence and the connection plate spray zinc, road and bridge fence spray zinc)
10. Spraying zinc on Expressway display rack
11.Water conservancy gate and facilities spraying zinc anti-corrosion (water conservancy facilities pipeline, steel gate spraying zinc, hoist)
12. Steel structure surface
13. Shaped steel parts (zinc spray for casting parts, hot spraying zinc for welded joints)
14. Electro-galvanized steel sheet
15. Car brake clamp body and bracket (automobile tubing and tubing assembly)
16.Marine / dockyard
|
Item
|
Chemical content
|
Zn
|
Cd
|
Pb
|
Fe
|
Cu
|
Balance Total
|
|
pure zinc
|
Nominal value
|
≥99.995
|
≤0.002
|
≤0.003
|
≤0.002
|
≤0.001
|
0.005
|
|
Diameter
|
Package
|
Zinc content
|
|
Φ1.3mm
|
25kg/bundle; 15-20kg/shaft; 50-200/barrel
|
≥99.9953
|
|
Φ1.6mm
|
||
|
Φ2.0mm
|
||
|
Φ2.3mm
|
||
|
Φ2.8mm
|
||
|
Φ3.0mm
|
||
|
Φ3.175mm
|
250kg/barrel
|
|
|
Φ4.0mm
|
200kg/barrel
|
99.99% pure zinc thermal spray wire chemical composition:
| Chemical Composition | Zn | Cd | Pb | Fe | Cu | Total non-zinc |
| Normal Value | Min99.995 | Max0.002 | Max0.003 | Max0.002 | Max0.001 | 0.005 |
| Actual Value | 99.9957 | 0.0017 | 0.0015 | 0.0008 | 0.0003 | 0.0043 |
99.99% pure zinc thermal spray wire Physical Properties:
| Term | Specification |
| Tensile Strength Mpa | 115+/-10 |
| Elongation % | 45+/-5 |
| Melting Point | 419 |
| Density g/cm3 | 7.14 |
Key benefits:
Product Images:
Packaging:
Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires , we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping:
We cooperation with many logistics company,We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
1) We can provide a free sample for testing but the freight at yours.
2) Mill test certificate will be provided after production, If it is necessary.
3) Good packing methods to keep goods no damage during delivery
4) We cooperate with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Skype, Whatsapp or Mobile telephone.
Tel: +86-18017457857
Do you provide free samples?
Yes, we can provide a free sample for testing,buyer should bear all the shipping costs.
What is your payment terms?
T/T,L/C,D/A,D/P,Western Union,Paypal
We are doing the best to match your demand.
What is the lead time?
Usually sample lead time is 7 days after payment has been confirmed.
Normal order is 7-15days,it depends on customers’ quantity.
Anyway,we try to offer good-quality products as soon as possible.
