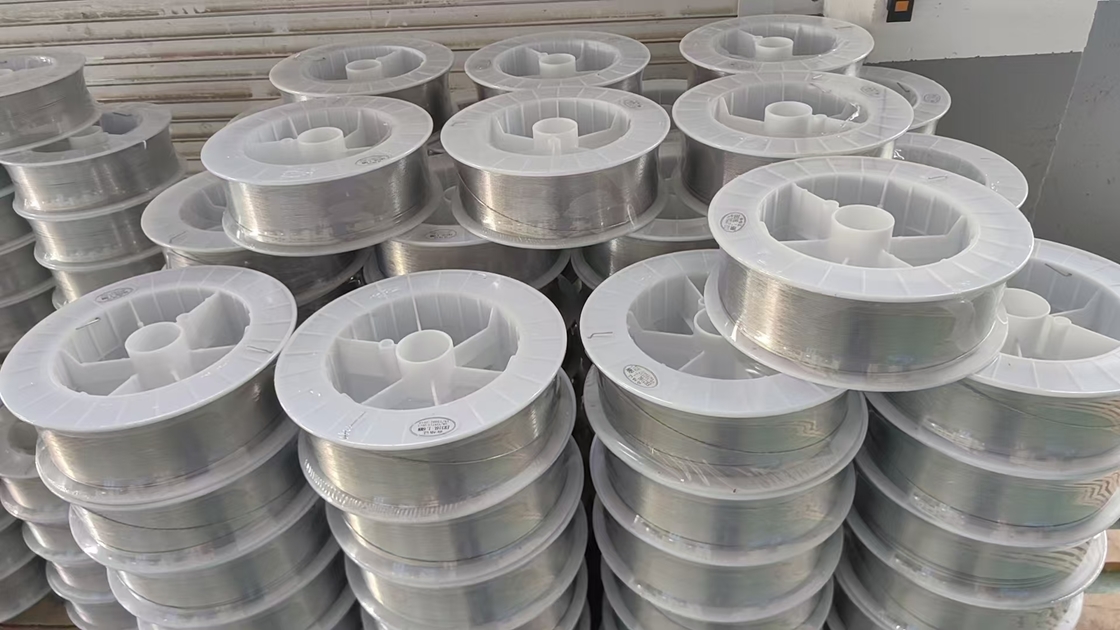

MIG wire er309/ER308/ER316/ER304 welding wire 1.6mm 2.0mm 3.2mm stainless steel filler alloy wire
Features:
stainless steel welding wire is a kind of mild steel copper coated welding wire, suitable for 100% CO2 and Argon& CO2 mixed gas protective welding with stable feasibility, good welding seams, less spatters and excellent welding process properties.
Application:
stainless steel welding wire used to weld ship building steel(A,B,D,E,A36,D36,E36)and equivalent mild steel or 550Mpa grade mild alloy steel, such as container building, construction machine, railway construction, pressure vessel for semi-auto or automatic gas shielded welding.
stainless steel welding wire conform with:
AWS: ER308 YB/T: H0Cr21Ni10 JIS: Y308
AWS: ER308L YB/T: H00Cr21Ni10 JIS: Y308L
AWS: ER308LSi JIS: Y308
| Varieties |
Deposited Metal Mechanical Properties |
Wire Chemical Composition |
| Tensile Strengthσb(Mpa) |
Elongation
δ5(%)
|
C |
Si |
Mn |
Cr |
Ni |
Mo |
| ER308 |
607 |
41 |
0.040 |
0.34 |
1.82 |
20.13 |
9.50 |
- |
| ER308L |
578 |
42 |
0.024 |
0.42 |
1.65 |
20.10 |
10.33 |
- |
| ER308LSi |
585 |
39 |
0.020 |
0.70 |
1.47 |
20.11 |
10.50 |
- |
| Wire Type |
Specification |
Wire Tray |
Weight |
| MIG wire |
Φ0.8~1.6(mm) |
D100mm D200mm
D300mm D270mm
|
1kg 5kg 15kg 20kg |
| TIG wire |
Φ1.6~5.0(mm) |
Length: 1000mm |
5kg 10kg |
