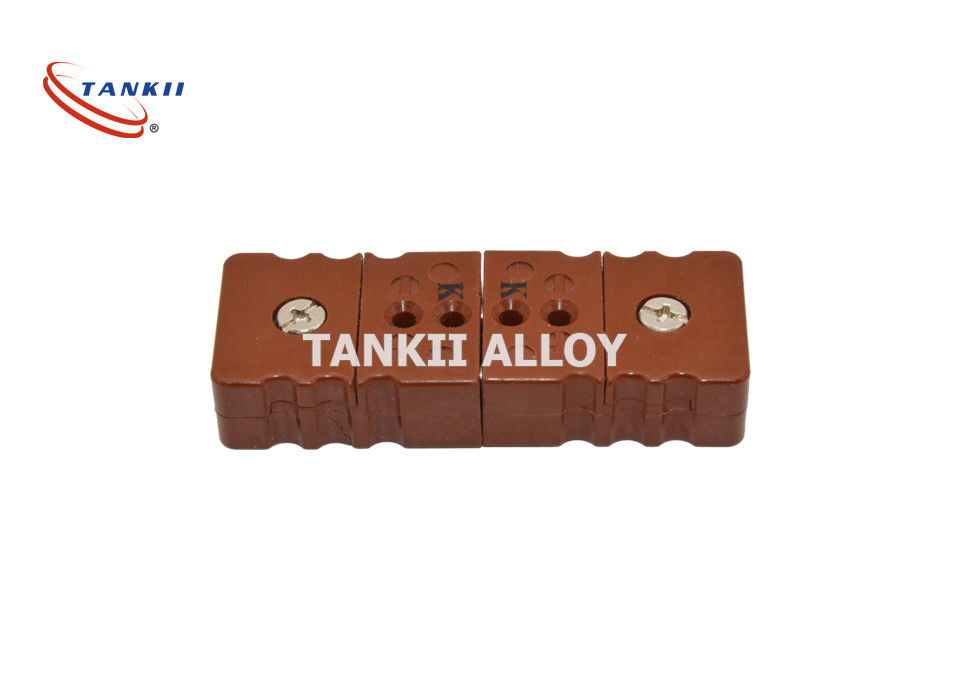

Miniature Type K Male Female Thermocouple Socket Standard

Miniature Type K Male Female Thermocouple Socket Standard
Miniature Type K Male Female Thermocouple Socket Standard Miniature Type K Male Female Thermocouple Socket Standard Miniature Type K Male Female Thermocouple Socket Standard Miniature Type K Male Female Thermocouple Socket Standard

Large Image :  Miniature Type K Male Female Thermocouple Socket Standard

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiation
Packaging Details: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery Time: 3-5 days after getting the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Piece/Pieces per day

Miniature Type K Male Female Thermocouple Socket Standard

Description
Item: Male And Female Orange Color Standard Thermocouple Connector Type K Type: Orange Thermocouple Connector
Standard: IEC/ European Sample MOQ: 1 Set
Available Size: STANDARD Male And Female OEM: Yes
Rated Current: 10A/15A/16A Application: Connect Thermocouple Sensor With Extension Cable
High Light:

Male Female Thermocouple Socket

,

Type K Thermocouple Socket

,

Miniature Thermocouple Socket

Male And Female Orange Color Standard Thermocouple Connector Type K ​



Quick Details for tankii Standard connector :



The Size and Shape of connectors is another important factor in your selection process, for the most part connectors are typically rectangular or circular shaped. The primarily available in a Miniature body design or a larger Standard body design.

The IEC (International Electrotechnical Commission) color code is fairly easy to understand with the Thermocouple Connector color matching both the outer insulating jacket of a thermocouple pair and the insulation of the positive wire. For example the IEC color code for the very popular Type K calibration has a Green thermocouple connector body and Green insulation on the wire.





  • 10pcs Thermocouple Probe Connector in a Pack (5Pcs Male and 5Pcs Female),
  • Material: electronic parts, plastic;
  • The highest tolerable temperature: 250F
  • K-type thermocouple connector, real chromel alumel contacts, miniature or mini k-type connector dimensions, works with all k-type thermocouple wires and extension wires
  • Designed with good insulation, metal pins construct ensures good contact.
  • The plugs have small holes in the center, this allows you to secure them using a cable binder or string, or you can screw them to equipment.
  • This connector is widely used in thermocouple and RTD circuits, best solution for quick and good contact.
  • Connector Type Standard Thermocouple
    Cable Type K-type Thermocouple
    Compatible Devices Digital Thermometer
    Color Green
    Brand Tankii

    Connector Type and Color
    Type Color Conductor Material
    KX yellow ( ANSI ) or green ( IEC) NiCr-NiSi
    NX orange NiCrSi-NiSiMg
    EX purple NiCr-CuNi
    JX black Fe-CuNi
    TX blue Cu-CuNi
    R/S green Cu-CuNi
    PT100 white Cu/Ni

    Miniature Type K Male Female Thermocouple Socket Standard 0



When to use a Thermocouple Connector

Although the simplest of thermocouples end in bare wires (as found in many laboratory and industrial/research applications, for example), there are many other applications where a connector is usually desirable to make life easier.

The connector is usually used to connect the thermocouple sensor to thermocouple or extension cables, then on to the reference junction and the instrumentation concerned. The connectors allow for rapid fitting or exchange of sensors without sacrificing thermocouple conductor uniformity. Plug and jacks are designed so that their installation can be made simply and securely, with designed-in locking mechanisms. Plugs and jacks are polarized by size and are usually marked for negative and positive polarity. Although there is no standard as such, connectors are generally pin compatible with devices from several manufacturers.







Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks.
The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application.


All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.



Standard K-Type Thermocouple Wire Connector Set Of 10 Male Plugs And Female


Pack and delivery:
Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery time : 5-7 days after getting the payment
Delivery: By express

Application:
Miniature Type K Male Female Thermocouple Socket Standard 1
