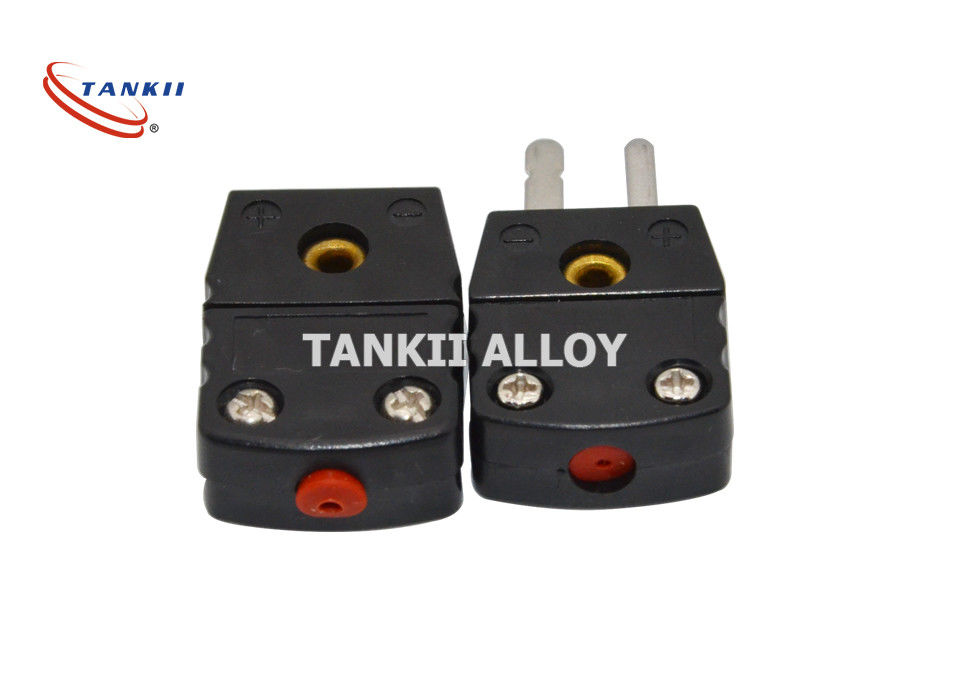

Mini J Type Thermocouple Wire Connector Male Female 10A

Mini J Type Thermocouple Wire Connector Male Female 10A
Mini J Type Thermocouple Wire Connector Male Female 10A
Mini J Type Thermocouple Wire Connector Male Female 10A Mini J Type Thermocouple Wire Connector Male Female 10A Mini J Type Thermocouple Wire Connector Male Female 10A Mini J Type Thermocouple Wire Connector Male Female 10A Mini J Type Thermocouple Wire Connector Male Female 10A

Large Image :  Mini J Type Thermocouple Wire Connector Male Female 10A

Product Details:
Place of Origin: China mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K
Payment & Shipping Terms:
Minimum Order Quantity: 1 Pc
Price: Negotiation
Packaging Details: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery Time: 3-5 days after getting the payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 5000 Piece/Pieces per day

Mini J Type Thermocouple Wire Connector Male Female 10A

Description
Item: Premium Miniature Mini J-Type Connector Plug Set Male/Female Type: J -Black Mini Connector
Available Size: Mini Male And Female Standard: IEC/ European
Sample MOQ: 1 Pair OEM: Yes
Rated Current: 10A/15A/16A Application: Connect Thermocouple Sensor With Extension Cable
High Light:

J Type Thermocouple Wire Connector

,

Mini Thermocouple Wire Connector

,

Male Female Thermocouple Wire Connector

Premium Miniature Mini J-Type Connector Plug Set Male/Female​





About this item

Tankii J-type thermocouple connector conforms to the miniature or mini connector dimensions with two flat prongs and the J-Type Thermocouple Extension Wire specification. You can use this to build your own J-type thermocouple or J-type extension wire.

J-type thermocouples are made from Iron / Constantan metal. This is a high quality connector, the prongs are made from the same Iron / Constantan alloy combination that is used in the wire.

This is also available as a set as well.

Specification:

- for J-Type Thermocouples: Iron / Constantan

- durable glass filled nylon, color coded according to ANSI, J-type black

- captive screws, spring loaded wire terminal and write on label

- stable to 360 degree Fahrenheit or 180 degree Celsius

- transmits the temperature signal over the full J-type range







  • Connector Type Miniature Thermocouple
    Cable Type J-type Thermocouple
    Compatible Devices Digital Thermometer
    Color Black
    Brand Tankii

    Connector Type and Color
    Type Color Conductor Material
    KX yellow ( ANSI ) or green ( IEC) NiCr-NiSi
    NX orange NiCrSi-NiSiMg
    EX purple NiCr-CuNi
    JX black Fe-CuNi
    TX blue Cu-CuNi
    R/S green Cu-CuNi
    PT100 white Cu/Ni





When to use a Thermocouple Connector

Although the simplest of thermocouples end in bare wires (as found in many laboratory and industrial/research applications, for example), there are many other applications where a connector is usually desirable to make life easier.

The connector is usually used to connect the thermocouple sensor to thermocouple or extension cables, then on to the reference junction and the instrumentation concerned. The connectors allow for rapid fitting or exchange of sensors without sacrificing thermocouple conductor uniformity. Plug and jacks are designed so that their installation can be made simply and securely, with designed-in locking mechanisms. Plugs and jacks are polarized by size and are usually marked for negative and positive polarity. Although there is no standard as such, connectors are generally pin compatible with devices from several manufacturers.







Thermocouple connectors can also be ordered in a smaller compact size which are typically called mini thermocouple plugs and jacks.
The male mini thermocouple plugs have smaller flat polarized plugs.
Thermocouple plugs and jacks can be ordered in a variety of body materials with various temperature ratings to suite your application.


All thermocouple Connectors can be ordered in Type E, J, K, N, T, R, S, and B thermocouple calibrations and with ANSI or IEC Color Coded bodies.



Premium Miniature Mini J-Type Connector Plug Set Male/Female​




Mini J Type Thermocouple Wire Connector Male Female 10A 0



Pack and delivery:
Packing: 10pcs/package, 400pcs/ carton, Carton size: 50*32*27cm
Delivery time : 5-7 days after getting the payment
Delivery: By express

Application:
Mini J Type Thermocouple Wire Connector Male Female 10A 1
