Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire

Product Details

Place of Origin: Shanghai

Brand Name: TANKIi

Certification: ISO9001

Model Number: karma

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: negotiable

Packaging Details: wooden case

Delivery Time: 8-15 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 250+ton+month

Get Best Price
Contact Now
Specifications
Highlight:

Resistor Heating Nicr Alloy

,

Karma Resistance Wire

,

Hydrogen Annealing Resistance Wire

Conductor Material:
Ni-Cr-Al-Fe
Application:
Resistor
Conductor Type:
Solid
Surface:
Bright/oxidized/acid White
Treatment:
Hydrogen Annealing
Conductor Material:
Ni-Cr-Al-Fe
Application:
Resistor
Conductor Type:
Solid
Surface:
Bright/oxidized/acid White
Treatment:
Hydrogen Annealing
Description

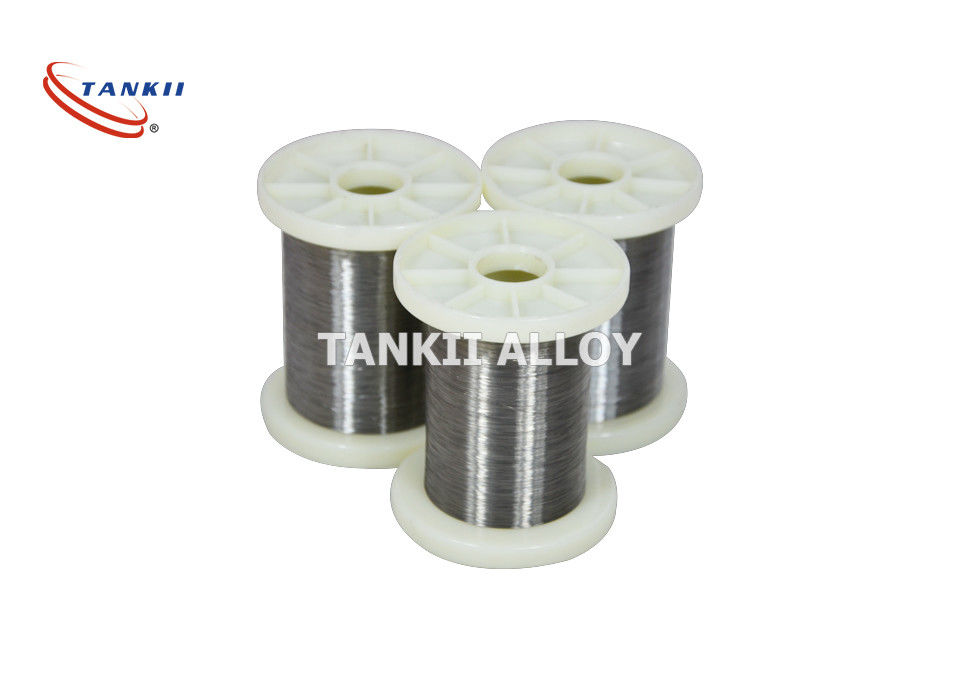

Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire

Karma Resistance Wire nicr alloy for Resistor



Chemical Element: Cr 19~21.5%, Ni: Balance, Al 2.5~3.2%, Fe 2.5~20%

Resistivity: 1.33 ohm mm2/m

Resistivity 800 Ohms Per Circular Mil Foot at 20° C (68° F)
Wt. Per Cubic Inch =. 293 lbs.

Specific Gravity 8.10

Diameter 0.025mm~5mm

Usage: resistor

Distinctive features of Karma resistance wire

1) Starting with Nickel Chromium electric heat wire Class 1, we replaced some of the Ni with
Al and other elements, and thus achieved a precision resistance material with improved
resistance temperature coefficient and heat electromotive force against copper.
With the addition of Al, we have succeeded in making volume resistivity 1.2 times greater
than Nickel Chromium electric heat wire Class 1 and the tensile strength 1.3 times greater.

2) The secondary temperature coefficient β of Karmalloy wire KMW is very small, - 0.03 × 10-6/ K2,
and the resistance temperature curve turns out to be almost a straight line within a wide
temperature range.


Therefore, the temperature coefficient is set to be the average temperature coefficient between
23 ~ 53 °C, but 1 × 10-6/K, the average temperature coefficient between 0 ~ 100 °C, also may
be adopted for the temperature coefficient.


3) Electromotive force against copper between 1 ~ 100 °C is also small, below + 2 μV/K, and
exhibits excellent stability over a period of many years.


4) If this is to be used as a precision resistance material, low temperature heat treatment is
required to eliminate processing distortions just as in the case of Manganin wire CMW.


We also produce other kind of resistance wire such as NiCr 80/20, NiCr 70/30, Nicr 60/15, Cr25Al5, etc.



Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire 0Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire 1Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire 2Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire 3Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire 4Resistor Heating Nicr Alloy Hydrogen Annealing Karma Resistance Wire 5
