TANKII A1 Similar Grade TKA-1 Fecral Alloys Wires Heating Resistance Alloy RESISTOHM 145 / ALLOY 875

Name: TANKII A1 Similar Grade TKA-1 Fecral Alloys Wires Heating Resistance Alloy RESISTOHM 145 / ALLOY 875
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: TKA-1
Price: 42.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: TKA-1

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                            high temperature metal alloys, high temperature wire


Material:	Alloy 875	Purity:	25%Cr, 6%Al
Surface:	Bright / Polished / Oxidation / Golden	Density:	7.1g/cm3
Shape:	Pipe/wire/rod/strip/plate/coil/foil

Material:	Alloy 875
Purity:	25%Cr, 6%Al
Surface:	Bright / Polished / Oxidation / Golden
Density:	7.1g/cm3
Shape:	Pipe/wire/rod/strip/plate/coil/foil

Description

TANKII A1 Similar Grade TKA-1 Fecral Alloys Wires Heating Resistance Alloy RESISTOHM 145 / ALLOY 875

TANKII A1 Similar Grade TKA-1 Fecral Alloys Wires Heating Resistance Alloy RESISTOHM 145 / ALLOY 875

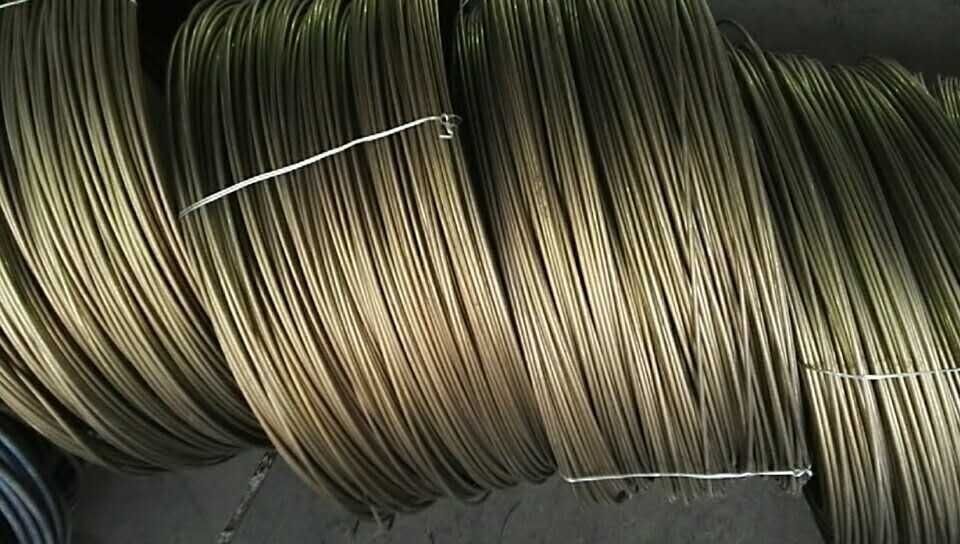

TKA-1 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has

proved that: the product process is stable, integrated performance is good. Has good high temperature oxidation

resistance and longer service life; excellent winding properties at room temperature processing, ease of

processing molding; little rebound resilience and so on. Processing performance is very good; operating

temperature can reach 1400 .

Conventional Product specifications: 0.5 ~ 10 mm

Properties Grade	TKA-1
	Cr	Al	Re	Fe
	25.0	6.0	Suitable	Balance
Max Continuous ServiceTemperature(ºC)	Diameter 1.0-3.0		Diameter large than 3.0,
	1225-1350ºC		1400ºC
Resisivity 20ºC (Omm2/m)	1.45
Density(g/cm 3 )	7.1
Approximate Melting Point( ºC)	1500
Elongation (%)	16-33
Repeatedly Bend Frequency(F/R)20ºC	7-12
Continuous Service Time under 1350ºC	More than 60 hours
Micrographic Structure	Ferrite

The relationship between the maximum operating temperature and the furnace atmosphere

Furnace atmosphere	Dry Air	Humid Air	hydrogen-argon gas	Argon	Decomposition ammonia gas
Temp( ºC)	1400	1200	1400	950	1200

User Manual

Rated Voltage: 220V/380V
The installation process to avoid knocking, to avoid the damp, hand-held stove wire, they should wear gloves. Wire should be installed after the furnace has remained flat, and prevent surface scratches, dirt, corrosion, or improper installation, by affecting the life of
In the rated voltage to use. In strong reducing atmosphere, acid atmosphere, an atmosphere of high humidity will affect the use of life;
Temperature before use should be in dry non-corrosive atmosphere, about 1000 ℃ spend a few hours, so that furnace wire protective film formed on the surface after normal use, so that can guarantee the normal life of furnace wire;
Furnace installation should ensure that the insulated wire good power to avoid touching furnace after the wire, guard against electric shock or burns.

TANKII A1 Similar Grade TKA-1 Fecral Alloys Wires Heating Resistance Alloy RESISTOHM 145 / ALLOY 875 0
