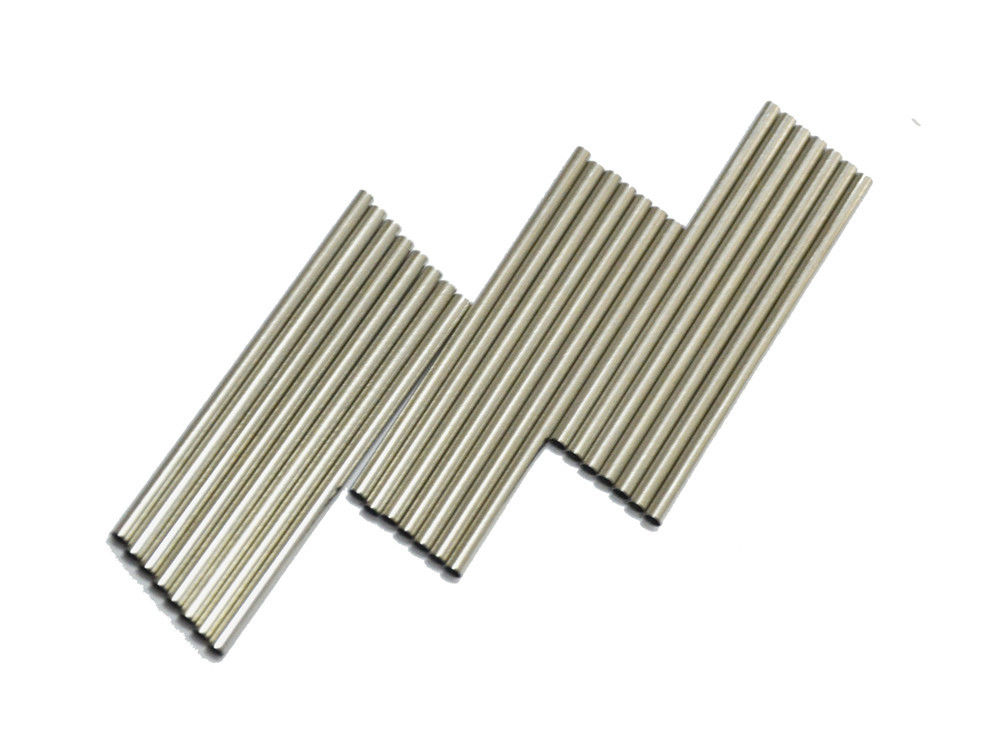

High Temperature Inconel 601 Uns N06601 2.4856 Nickel Base Alloy Bar / Plate / Pipe / Tube

Product Details

Place of Origin: Shanghai, China,

Brand Name: TANKII

Certification: ISO SGS

Model Number: Inconel 601 pipes / tubes

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-15 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 Tons per Month

Get Best Price
Contact Now
Specifications
Highlight:

high temperature metal alloys

,

high temperature wire

Material:
UNS N06601
Size:
2.0x0.1mm
Surface:
Bright
MOQ:
100.00KG
Length:
Customer Requirements
Shape:
Pipe/wire/rod/strip/plate/coil
Wall Thickness:
0.05mm Min
Material:
UNS N06601
Size:
2.0x0.1mm
Surface:
Bright
MOQ:
100.00KG
Length:
Customer Requirements
Shape:
Pipe/wire/rod/strip/plate/coil
Wall Thickness:
0.05mm Min
Description
High Temperature Inconel 601 Uns N06601 2.4856 Nickel Base Alloy Bar / Plate / Pipe / Tube

High temperature Inconel 601 Uns N06601 2.4856 Nickel-Base Alloy Bar / Plate / Pipe / Tube



Chemical Composition

  Fe Cr Ni C Mn Si Al Mo Cu Co P S W
Min Bal 21.0 58.0       1.0 -   -     -
Max   25.0 63.0 0.10 1.50 0.50 1.70 - 1.0 - 0.02 0.015 -



Physical properties

Characteristic
Tensile strength
Rm N/mm²
Yiield Strength (0.2% offset)
Rp0.2N/mm²
Density Elongation
A5 %
Melting point
(ºC)
690 283 8.9g/cm³ 40 1325-1370


Executive Standard

Bar Medium sheet Seamless Tube Welded pipe Flange fastener
ASTM B166 ASTM B168 ASTM B167 ASTM ASTM B564


Features

1, Excellent oxidation resistance at high temperatures
2, Excellent resistance to carbonization
3, Excellent oxidation resistance sulfur-containing atmosphere
4, Good mechanical properties at both room temperature and high temperature
5, Good resistance to stress corrosion cracking Due to the control of carbon content and grain size, 601 has a high creep rupture strength, so it is recommended to use 601 in the field above 500 °C.


Metallographic Structure

Nicrofer 5923 hMo is a face-centered cubic crystal structure


Corrosion Resistance

An important property of Alloy 601 is its ability to resist oxidation at temperatures up to 1180 °C. Even under very harsh conditions, such as heating and cooling cycles, 601 can form a dense oxide film with high peeling properties. 601 has good resistance to carbonization. Due to its high chromium and aluminum content, 601 has excellent oxidation resistance in high temperature sulfur-containing atmospheres.


Applications

1, Pallets, baskets and fixtures for heat treatment plants
2, Wire strand annealing and radiant tubes, high speed gas burners, wire mesh belts in industrial furnaces
3, Isolation tank in ammonia reforming and catalytic support grid in the manufacture of nitric acid
4, Exhaust system components
5, Combustion chamber of solid waste incinerator
6, Pipe support and soot handling components
7, Disused detoxification system components
8, Oxygen reheater



Delivery State

In general to heat treatment state of delivery, the type of heat treatment in the contract note; not indicated, according to the state of non heat treatment delivery.
