Product Details
Place of Origin: Shanghai, China,
Brand Name: TANKII
Certification: ISO SGS
Model Number: Inconel 600 pipes / tubes
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: negotiable
Packaging Details: wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per Month
Material: |
UNS N06600 |
Size: |
4.0x0.3mm / 4.0X0.5mm |
Surface: |
Bright |
MOQ: |
50.00KG |
Length: |
Customer Requirements |
Shape: |
Pipe/wire/rod/strip/plate/coil |
Wall Thickness: |
0.05mm Min |
Material: |
UNS N06600 |
Size: |
4.0x0.3mm / 4.0X0.5mm |
Surface: |
Bright |
MOQ: |
50.00KG |
Length: |
Customer Requirements |
Shape: |
Pipe/wire/rod/strip/plate/coil |
Wall Thickness: |
0.05mm Min |

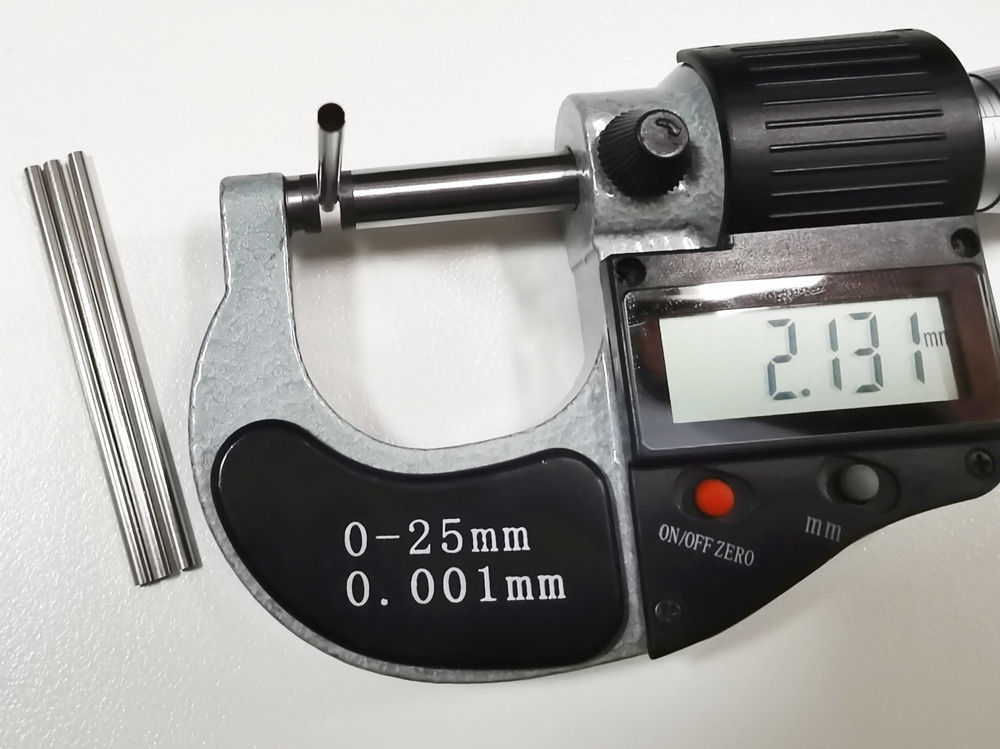

Inconel 600 (UNS N06600) 601 625 718 Nickel Alloy Inconel Pipe
Product DescriptionInconel 600(UNS N06600) Plate/wire/strip/bar/pipe Good corrosion resistance and mechanical property Bright & Smooth SurfaceSize: Plate/SProduct Description
Inconel 600(UNS N06600)
Plate/wire/strip/bar/pipe
Good corrosion resistance and mechanical property
Bright & Smooth Surface
Size: 1mm~80mm(OD)*0.05mm~20mm(WT)
Inconel 600 is a nonmagnetic, nickel-based high temperature alloy possessing an excellent combination of high strength, hot and cold workability, and resistance to ordinary form of corrosion. It is widely used in furnace components, chemical processing, food processing and unclear engineering.
Inconel 600 chemical composition:
| Alloy | % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S |
| 600 | Min. | 72 | 14 | 6 | ||||||
| Max. | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 |
Inconel 600 physical properties:
| Density | 8.4 g/cm³ |
| Melting Point | 1370-1425 °C |
Inconel 600 alloy minimum mechanical properties in the room temperature:
| Aolly status | Tensile strength Rm N/mm² |
Yield strength R P 0. 2N/mm² |
Elongation A 5 % |
Brinell hardness HB |
| Annealing treatment | 550 | 240 | 30 | ≤195 |
| Solution treatment | 500 | 180 | 35 | ≤185 |
Inconel 600 application field:
1. Erosion thermocouple sheath of the atmosphere.
2. Vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonation.
3. Oxide shaft chloride converted to six fluorides: hydrogen fluoride anti-corrosion.
4. Corrosive alkali metal produce and usage filed, especially the sulfide use environment.
5. Use Chlorine produce titanium dioxide.
6. Organic or inorganic chlorine produce: corrosion resistance to chlorine and fluoride.
7. Nuclear reactor
8. Heat treatment furnace flask and components, especially in the carbonization and nitride atmosphere.
9. Petrochemical works production of catalytic regeneration in the application of more than 700° C recommended the use of 600, in order to obtain a longer service life.
