Product Details:
|
| Material: | Ni-Cr-Ti-Nb-Fe | Standard: | ASTM / GB |
|---|---|---|---|
| OD: | 10-220mm | Surface: | Bright |
| Shape: | Rod, Bar,,tube,plate | Density: | 8.28 G/cm3 |
| High Light: | high temperature wire,high temperature metal alloys |
||

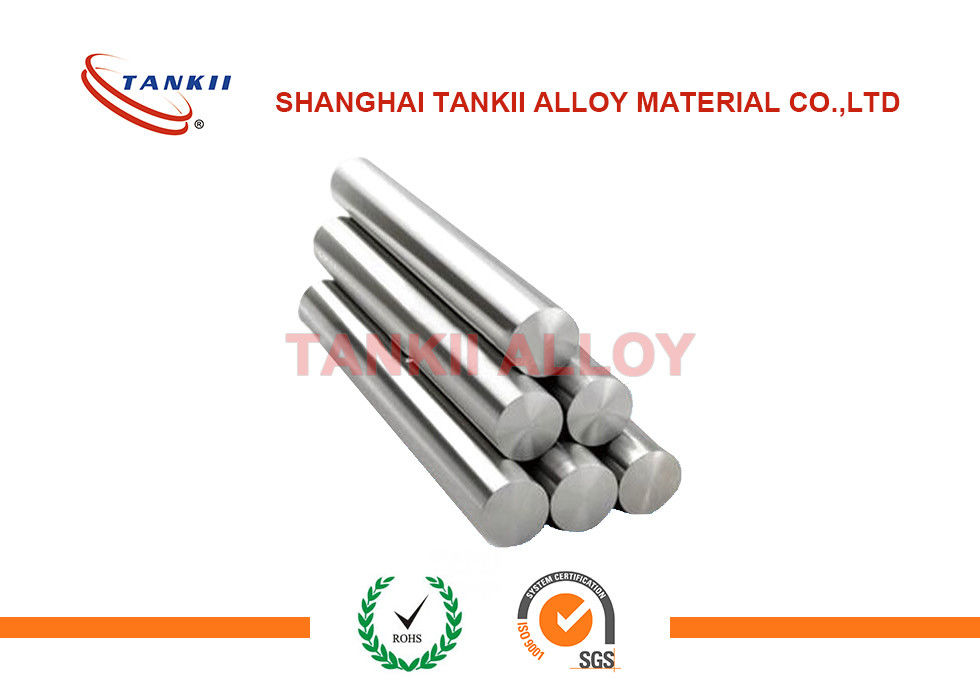

Nickel Alloy Inconel 600 625 718 725 750 907 Round Bar / sheet / plate
Inconel X750 is a nickel-chromium alloy similar to Inconel 600 but made precipitation-hardenable by additions of aluminum and titanium. It has good resistance to corrosion and oxidation along with high tensile and creep-rupture properties at temperatures to 1300°F (700°C).
Its excellent relaxation resistance is useful for high-temperature springs and bolts. Used in gas turbines, rocket engines, nuclear reactors, pressure vessels, tooling, and aircraft structures.
Chemical Composition
| Grade | Ni% | Cr% | Nb% | Fe% | Al% | Ti% | C% | Mn% | Si% | Cu% | S% | Co% |
| Inconel X750 | Max 70 | 14-17 | 0.7-1.2 | 5.0-9.0 | 0.4-1.0 | 2.25-2.75 | Max 0.08 | Max 1.00 | Max 0.50 | Max 0.5 | Max 0.01 | Max 1.0 |
Specifications
| Grade | UNS | Werkstoff Nr. |
| Inconel X750 | N07750 | 2.4669 |
Physical Properties
| Grade | Density | Melting Point |
| Inconel X750 | 8.28 g/cm3 | 1390°C-1420 °C |
Mechanical Properties
| Inconel X750 | Tensile Strength | Yield Strength | Elongation | Brinell Hardness (HB) |
| Solution Treatment | 1267 N/mm² | 868 N/mm² | 25% | ≤400 |
Our Production Standard
| Bar | Forging | Pipe | Sheet/Strip | Wire | |
| Standard | ASTM B637 | ASTM B637 | AMS 5582 | AMS 5542 AMS 5598 |
AMS 5698 AMS 5699 |
Size Range
Inconel X750 is available as wire, strip, sheet, rod and bar. In the wire form, this grade is covered by specification AMS 5698 for No.1 Temper and AMS 5699 for spring temper grade. No.1 Temper has a higher service temperature than Spring temper, but lower tensile strength.
| other nickel alloy products | ||||
| Inconel | Incoloy | Monel | Hastelloy | Nimonic |
| Inconel 600 | Incoloy 800 | Monel 400 | Hastelloy X | Nimonic 75 |
| Inconel 601 | Incoloy 800H | Monel K500 | Hastelloy C276 | Nimonic 80A |
| Inconel 625 | Incoloy 800HT | Hastelloy B | Nimonic 90 | |
| Inconel 718 | Incoloy 825 | Hastelloy B2 | Nimonic 105 | |
| Inconel X-750 | Incoloy A286 | Hastelloy B3 | ||
| Inconel 660 | Incoloy 925 | |||
| Inconel 690 | ||||
| Pure Nickel | Precision Alloy | Other | Welding Material | |
| Nickel 200 | 1J50 | 904L | ERNi-1 | ER308 |
| Nickel 201 | 1J79 | Alloy 20 | ERNiCrMo-3 | ER308LSi |
Product form
All products of the company according to the United States ASTM/ASME, Germany DIN, Japan JIS standard supply, with China's national steel executive standard synchronization, and can supply according to the standards and technical requirements of the customers, for product shape: plate, belt, tubes, rods, forgings, pipe fittings, flanges, welding materials, etc..
Super austenitic stainless steel series: 904 l (UNS N08904, 1.4539) 254 smo/SMO254 (UNS S31254, 1.4547), 1.4529 (UNS N08926, 25-6 mo) AL - 6 xn (UNS N08367)
304 (UNS S32304, 1.4362) 2507 (UNS S32570, 1.4410)
: cobalt base alloy GH188, GH605, GH783
Soft magnetic alloy: 1 j22, j36, 1 j50, 1 j76, 1 j77, 1 j79, 1 j85
Permanent magnet alloy, 2 j4, 2 j21-serial open-style, j31, 2 j63, 2 j83
Corrosion resistant alloy: NS111, NS112, NS113, NS131, NS141, NS142, NS143, NS311, NS312, NS313, NS314, NS315, NS321, NS322, NS331, NS332, NS333, NS334, NS335, NS336, NS337, NS341, NS411
monel:
MONEL400,UNS N04400,2.4360)(MONEL500,UNS N05500,2.4375)
inconel,incoloy:
(INCONEL600,UNS N06600,2.4816)(INCONEL601,UNS N06601,2.4851)(INCONEL686,UNS N06686,2.4606)(INCONEL690,UNS N06690,2.4642)(INCONEL718,UNS N07718,2.4668)(INCONEL750,UNS N07750,2.4669)(INCONEL725,UNS N07725)(INCONEL617,UNS N06617,2.4663)(INCOLOY800,UNS N08800,1.4876)(INCOLOY800H,UNS N08810,1.4876)(INCOLOY800HT,UNS N08811,1.4876)(INCOLOY825,UNS N08825,2.4858)(INCOLOY925,UNS N09925)(INCOLOY20,UNS N08020,2.4660)(INCOLOY28,UNS N08028,1.4563)(INCOLOY330,UNS N08330,1.4886)
