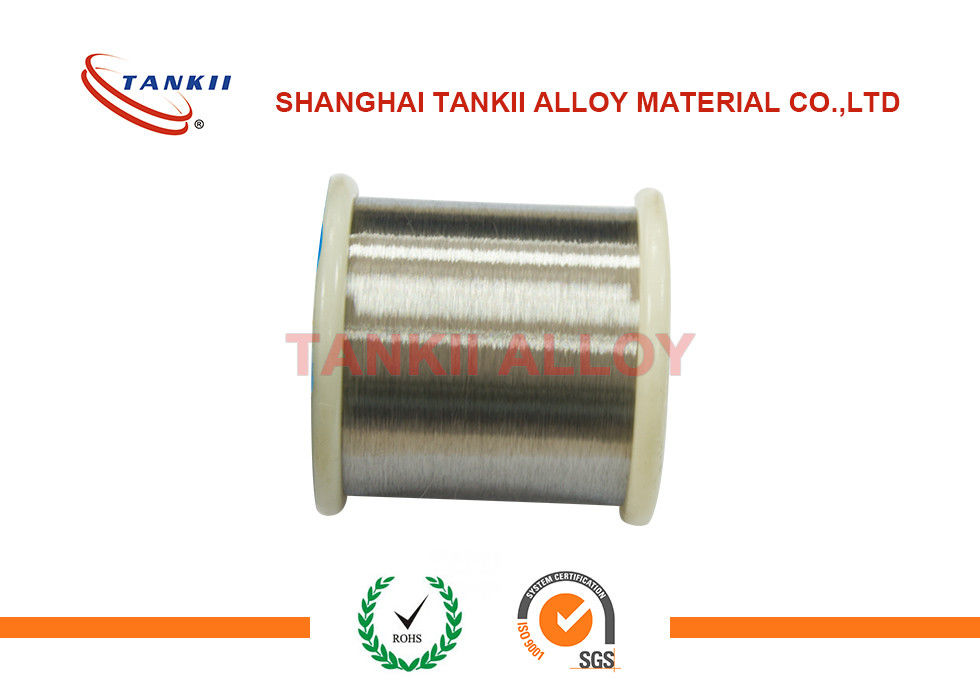

Pure Nickel Welding Wire Ultra Thin 0.25mm 0.38mm For Wire Mesh 15kg / Spool

Product Details

Place of Origin: Shanghai China

Brand Name: TANKII

Certification: SGS

Model Number: Ni200

Payment & Shipping Terms

Minimum Order Quantity: 50KG

Price: negotiable

Packaging Details: wooden case

Delivery Time: 7-12 work days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200 tons per month

Get Best Price
Contact Now

nickel alloys


nichrome resistance wire

Pure Nickel
Electronic,medical,industry Etc.
Pure Nickel
Electronic,medical,industry Etc.
Pure Nickel Welding Wire Ultra Thin 0.25mm 0.38mm For Wire Mesh 15kg / Spool

Pure nickel welding ultra-thin wire 0.025mm price per kg 0.25mm, 0.38mm, 15kg / spool


Nickel is a silver-white metal which occurs mainly in the sulphide and arsenic ores. It is extracted by roasting to NiO and then reducing using carbon. Pure nickel is manufactured by the Mond process, in which impure nickel is reacted with carbon monoxide (CO) to produce Ni(CO)4, which is then decomposed at 200C to yield 99.99% Ni. Nickel has an abundance of 80 ppm in the earth's crust.

Pure nickel is malleable and ductile, and is resistant to corrosion in air or water, and hence is used as a protective coating. It is readily soluble in dilute acids, but is unaffected by alkalis. Applications for nickel include its use as a constituent of various alloy types; for example, Nichrome (an alloy used for resistance heating elements), Monel (corrosion resistant material), Permalloy (an alloy with high magnetic permeability at low field strength and low hysteresis loss), stainless steel, cupro-nickel, nickel silver, etc. It is also used in coinage, as a protective coating and within food and chemical handling plants.

Nickel is classed as a carcinogen and is also an allergen to some individuals. It is found in many dietary constituents and, as such, is difficult to avoid.


UNS Trademark W.Nr
N02200 Nickel200 2.4060

Nickel 200 Chemical composition

Alloy % Ni Fe C Mn Si Cu S
Nickel 200 Min. bal
Max. 0.4 0.15 0.35 0.35 0.25 0.01


Nickel 200 Pysical properties

Density 8.89 g/cm³
Melting point 1440°C


Nickel 200 Alloy minimum mechanical properties in the room temperature

Product Form Condition Tensile strength
Rm N/mm²
Yield strength
RP0.2 N/mm²


A5 %

Brinell hardness
Rod & Bar Hot Finished 60-85 15-45 35-55 45-80
Rod & Bar Cold Drawn/Annealed or Hot-Finished/Annealed 55-75 15-30 40-55 45-70
Plate Hot-Rolled/Annealed 55-80 15-40 40-60 45-75
Sheet Annealed 55-75 15-30 40-55 70 max
Tube & Pipe Seamless Annealed 55-75 12-30 40-60 70 max


Nickel 200 Characteristic as below:
Highly resistant to various reducing chemicals

Excellent resistance to caustic alkalies

High electrical conductivity

Excellent corrosion resistance to distilled and natural waters

Resistance to neutral and alkaline salt solutions

Excellent resistance to dry fluorine

Widely used to handle caustic soda

Good thermal, electrical and magnetostrictive properties

Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations


Nickel 200 Application field :
Food processing equipment

Marine and offshore engineering

Salt production

Caustic handling equipment

Manufacture and handling of sodium hydroxide, particularly at temperatures above 300° F

Reactors and vessels in which fluorine is generated and reacted with hydrocarbons
