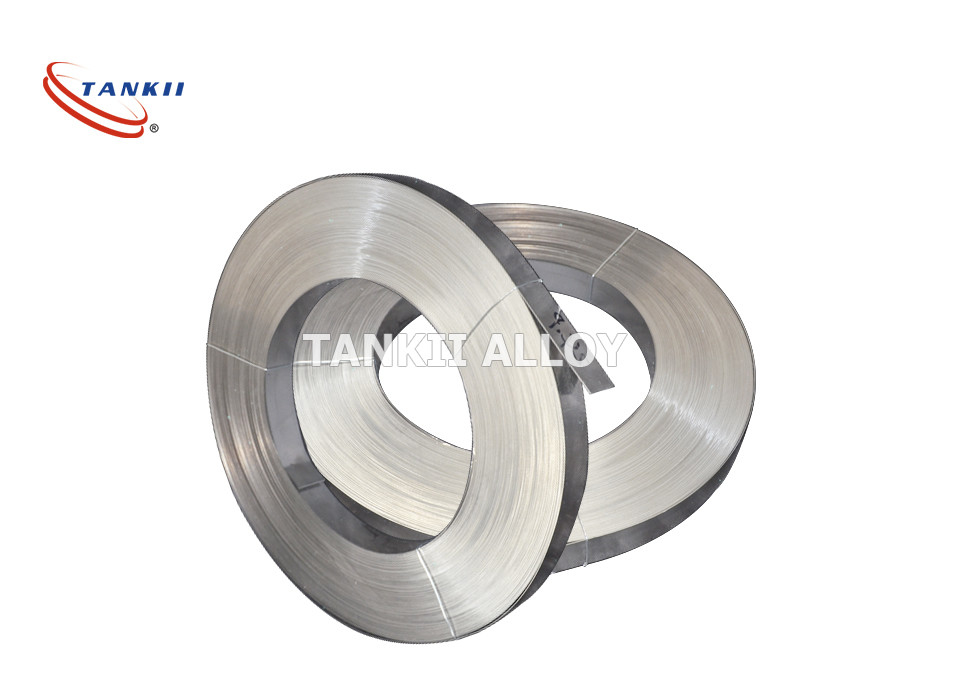

Resistance Heating Alloy Strip (NiCrFe,FeCrAl)

Name: Resistance Heating Alloy Strip (NiCrFe,FeCrAl)
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: NiCr 80/20
Price: 30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: NiCr 80/20

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: usd+30+kg

Delivery Time: 20days

Payment Terms: L/C, D/A, D/A, T/T, Western Union, MoneyGram

Supply Ability: 100000ton/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

Resistance Heating Alloy Strip (NiCrFe,FeCrAl)

Basic Info.

Model NO.

NiCr 80/20

Specification

negotiable

Trademark

TANKII

Origin

China

HS Code

72209000

Production Capacity

30tons/Month

Product Description

Resistance Heating Alloy Strip (NiCrFe,FeCrAl)

NiCr:
RESISTOHM 20, RESISTOHM 30, RESISTOHM 40, RESISTOHM 60, RESISTOHM 70, RESISTOHM 80

FeCrAl:
RESISTOHM 125, RESISTOHM 135, RESISTOHM 140,
RESISTOHM 145, RESISTOHM 153

If there is any question, pls be free to contact with us.

Chemical Composition and Main Properties of Nichrome
Properties Grade		NiCr 80/20	NiCr 70/30	NiCr 60/15	NiCr 35/20	NiCr 30/20
Main Chemical Composition	Ni	Balance	Balance	55.0-61.0	34.0-37.0	30.0-34.0
	Cr	20.0-23.0	28.0-31.0	15.0-18.0	18.0-21.0	18.0-21.0
	Fe	≤1.0	≤1.0	Balance	Balance	Balance
Max Continuous Service Temperature(oC)		1200	1250	1150	1100	1100
Resisivity 20oC (Ωmm2/m)		1.09	1.18	1.12	1.04	1.04
Density (g/cm3)		8.4	8.1	8.2	7.9	7.9
Thermal Conductivity(KJ/m·h·oC)		60.3	45.2	45.2	43.8	43.8
Coefficient of Thermal Expansion(α×10-6/oC)		18	17	17	19	19
Melting Point( oC)		1400	1380	1390	1390	1390
Elongation(%)		>20	>20	>20	>20	>20
Micrographic Structure		austenite	austenite	austenite	austenite	austenite
Magnetic Property		nonmagnetic	nonmagnetic	nonmagnetic	Weak magnetic	Weak magnetic

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
Properties Grade		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical Composition (%)	Cr	12.0-15.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.
							Nb0.5	Mo1.8-2.2
Max Continuous Service Temperature(oC)		650	1250	1250	1250	1100	1350	1400
Resisivity 20oC (Ωmm2/m)		1.25 ±0.08	1.42 ±0.06	1.42 ±0.07	1.35 ±0.07	1.23 ±0.07	1.45 ±0.07	1.53 ±0.07
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal Conductivity		52.7	46.1	63.2	60.2	46.9	46.1	45.2
(KJ/m·h·oC)		52.7	46.1	63.2	60.2	46.9	46.1	45.2
Coefficient of Thermal Expansion(α×10-6/oC)		15.4	16	14.7	15	13.5	16	16
Approximate Melting Point( oC)		1450	1500	1500	1500	1500	1510	1520
Tensile Strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation(%)		>16	>12	>12	>12	>12	>12	>10
Section Variation		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Shrink Rate (%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeatedly Bend Frequency(F/R)		>5	>5	>5	>5	>5	>5	>5
Hardness (H.B.)		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Service Time		no	≥80/1300	≥80/1300	≥80/1300	≥80/1250	≥50/1350	≥50/1350
Micrographic Structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic Property		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic

Resistance Heating Alloy Strip (NiCrFe,FeCrAl) 0

Resistance Heating Alloy Strip (NiCrFe,FeCrAl) 1

Resistance Heating Alloy Strip (NiCrFe,FeCrAl) 2
