Tafa 45CT Thermal Spray Wires Resistant to corrosion and high temperature

Product Details

Place of Origin: CHINA

Brand Name: TANKII

Certification: ISO9001

Model Number: NiCrTi 45

Payment & Shipping Terms

Minimum Order Quantity: 30kgs

Price: Negotiation

Packaging Details: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements) For the Thermal spray wires , we pack the wires on spools. Then put s

Delivery Time: 7 work days

Payment Terms: T/T, Western Union, L/C, D/A, D/P, MoneyGram

Supply Ability: 2000 tons per month

Get Best Price
Contact Now
Specifications
Highlight:

high heat wire

,

low voltage heating wire

Type:
Nickel Alloy Wire
Grade:
NiCrTi TAFA 45CT
Wire:
Solid Wire
Package:
15kg/spool
Size:
1.6mm,2.0mm,in Customers' Requirement
Applications:
Boiler Tubes/Corrosion Resistance
Sample:
Is Available
Delivery Time:
7 Days
Surface:
Bright
Type:
Nickel Alloy Wire
Grade:
NiCrTi TAFA 45CT
Wire:
Solid Wire
Package:
15kg/spool
Size:
1.6mm,2.0mm,in Customers' Requirement
Applications:
Boiler Tubes/Corrosion Resistance
Sample:
Is Available
Delivery Time:
7 Days
Surface:
Bright
Description
Tafa 45CT Thermal Spray Wires Resistant to corrosion and high temperature



Tafa 45CT Thermal Spray Wires Resistant to corrosion and high temperature




Product Overview:

TANKII 45CT wire are resistant to sulfide corrosion and high temperature. 45CT coating is very effective for the long-term protection of high temperature corrosion for the four tubes of boilers , it can form a layer of high density of Cr2O3 film, it has high resistant to the corrosive gases such as "sulfur, vanadium" which from the boiler when it works. It can be resistance to the corrosion of sulfur and vanadium gases in the high temperature close to 980 ℃.The thickness of the coating in the pulverized coal furnace was almost unchanged after 24 months, and no peeling occurred. It is estimated that the average erosion rate <0.013mm / year. Can improve the life of the boiler four-pipe service period of 7-9 years.



TANKII 45CT can be used either double wire arc spray or flame spray (high power spray gun is better). Among them, arc spraying has high reliability, and is more economical than supersonic spraying and plasma spraying. Arc wire coating compared to powder coating has deposition of high efficiency, less pollution.


Product Picture:

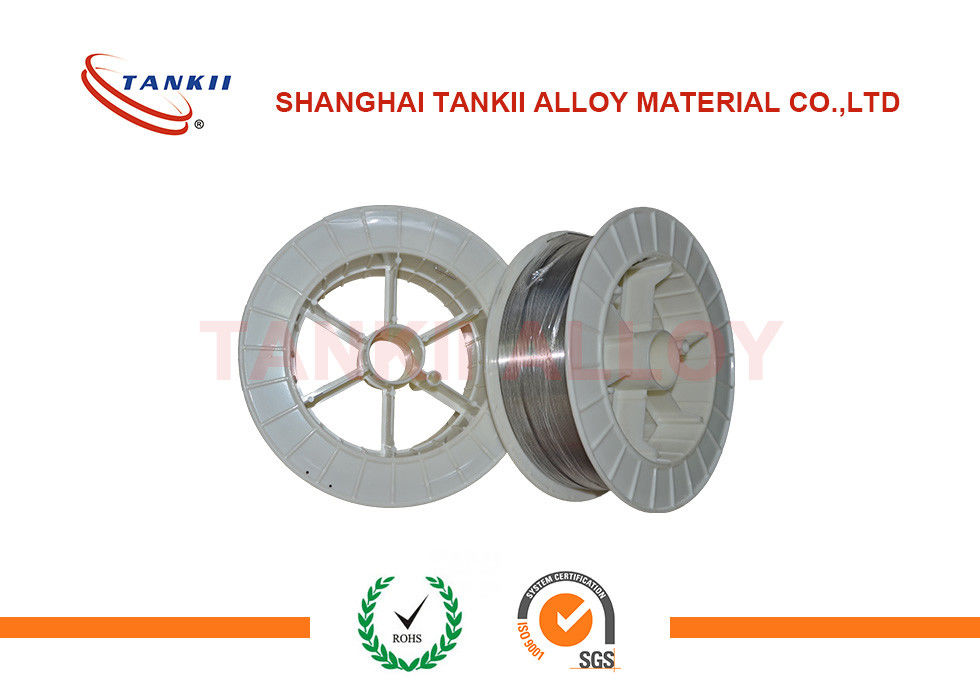

Tafa 45CT Thermal Spray Wires Resistant to corrosion and high temperature 0

Tafa 45CT Thermal Spray Wires Resistant to corrosion and high temperature 1

Tafa 45CT Thermal Spray Wires Resistant to corrosion and high temperature 2

Tafa 45CT Thermal Spray Wires Resistant to corrosion and high temperature 3
Typical Uses and Applications of tafa 45CT thermal spray wire:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation. The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F. Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers. Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).

Chemical composition of tafa 45CT thermal spray wire:


Nominal composition

Cr%

Ni +Ti%

Min

45

/

Max

/

Bal.


Standard Sizes & Packing of thermal spray wire:

Diameter

Packing

Wire Weight

1/16 (1.6mm)

D 300 Spool

15kg((33 lb)/spool



Other sizes can produced based on customers' requirement.



Our Service
1) We can provide a free sample for testing.
2) Customized lable, packing, OEM service
3) Mill test certificate will be provided after production, If it is necessary.
4) Good packing methods to keep goods no damage during delivery
5) We are cooperation with many famous forwarder, will try our best to choose the safety, convenience, quick, and cheap mode of transportation for our customers.


Company Information
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.

Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.

We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business. Welcome to visit our website.


FAQ
(1)What is your min order?
For the Thermal spray wire, Our min order is 15kg .

(2)What is the wire weight of each spool?
The wire weight of each spool is around 15kg, also can be produce according to customers' requirement.

(3)Whether can you provide a Mill Test Certification?
We can provide a Test certification after production.
