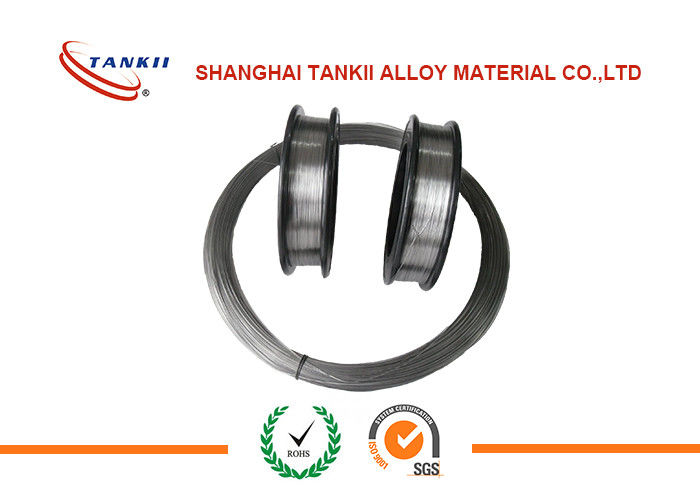

3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire

3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire
3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire 3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire

Large Image :  3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire

Product Details:
Place of Origin: CHINA
Brand Name: TANKII
Certification: ISO9001
Model Number: Moly Wire
Payment & Shipping Terms:
Minimum Order Quantity: 5kg
Price: Negotiation
Packaging Details: spool, plastic film, carton, wooden case
Delivery Time: 7-15 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 2000ton/year

3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire

Description
Application: Aviation, Electronics, Industrial, Medical, Chemical Purity: Min 99.95%
Alloy: Non-Alloy Type: Molybdenum Wire
Powder: Not Powder Material Grade: Mo-1
Diameter: 1.0mm, 1.6mm, 3.17mm, 3.2mm, Etc Net Weight: 10-25kg/spool
Surface: Black Usage: For Thermal Spraying
Transport Package: In Customers' Requirement
High Light:

high heat wire

,

low voltage heating wire

3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire


Molybdenum Spraying Wire is a pure(99.95%) Molybednum wire specifically designed for thermal spraying. It produces dense, well-bonded coatings with excellent wear resistance and good corrosion resistance. It is particularly effective for applications where scuffing or galling is a problem, such as piston rings, shift forks and synchronizing rings.

TANKII Molybdenum Wire
TANKII molybdenum wire popular diameter is 1.6mm, 2.0mm, 3.17mm. Our molybdenum coating has high hardness, good ductility, especially has good anti friction and wear, fretting wear and scuffing behaviour, with low coefficient of sliding friction of steel material, running in performance. In some circumstances it has solid lubricating properties, as well as anti-corrosion characteristics. TANKII molybdenum wire are widely used in machinery, petroleum, chemical, aerospace and other fields for casting pump, valve, piston ring, electrical contacts.
TANKII thermal spray molybdenum coating has good adhesion to steel which used as a self adhesive bonding layer. (This kind of molybdenum wire is sometimes called Sprabond wire) It can also be bonded to the ceramic and glass, as a surface modification coating. In recent years, the development of the spraying wire HOVF gun (such as Hijet-9600) TANKII spraying molybdenum wire used in steel substrate the bonding strength is 40MPa, porosity rate is 0.2% to 0.5% , the surface has a roughness of 0.2 ~ 0.4um (Ra), the diameter of the molybdenum wire spraying 3.17mm coating spraying efficiency 2.5kg/h, the deposition rate is 67%.


Materials:Pure molybdenum, Mo>99.95%, impurities <0.05%, each element content <0.01%

Appearance: Molybdenum spraying wire is covered with graphite. After removed graphite, it is metallic luster.

Molybdenum spraying wire Properties:


Typical HardnessHRC 15-35
Bond Strength7900 psi
Deposit Rate10 lbs/hr/100A
Deposit Efficiency75%
Wire Coverage1.1 oz/ft2/mil
Surface TextureVariable


Pure Molybdenum Chemical Composition In %:


BrandMo ContentMaximum Content of Impurities
TotalAlSiC/Fe/TiNi/O/CrCa/Mg/Na
TANKII Mo-1≥99.950.050.0020.0030.0050.0030.002



Why choose us?
1. The weight of single wire is up to 20-25kg without any welded joint, which results in enhancing the efficiency and decreasing the operating costs.
2. Diameter: 3.175mm, 2.3mm-1.41mm
3. Tolerance: 3.175mm + / -0.025mm or + 0 / -0.05mm
2.3mm-1.45mm + / -0.02mm + 0 / -0.05mm
4. Tensile strength: >700-900N / mm2
5. Elongation: >20-5%


State of Finished Molybdenum Spraying Wires:


SizesmmSurfaceReel WeightkgPacking
Φ3.17Black10~25Self-coiling
Φ2.31Black10~25Self-coiling
Φ1.60Black10~25Self-coiling,or reel
Φ1.45Black10~25Self-coiling,or reel


Packaging:
3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire 0

3.17mm Molybdenum Spraying Wire 99.95% Pure Thermal Spray Molybdenum Wire 1
