Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5

Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5
Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5 Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5

Large Image :  Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5

Product Details:
Place of Origin: China
Brand Name: TANKII
Certification: ISO90012009
Model Number: Nial 95/5 thermal spray wire
Payment & Shipping Terms:
Minimum Order Quantity: 15kgs
Price: Negotiation
Packaging Details: 15kg/spool
Delivery Time: 7 work days
Payment Terms: Western Union, L/C, T/T
Supply Ability: 2000 tons / years

Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5

Description
Material: Nickel Aluminum Grade: Nial 95/5
Size: Depends On Customers' Requirement Shape: Round Wire
Surface: Bright OEM: YES
Application: Bond Coating
High Light:

high heat wire

,

low voltage heating wire

1.6mm NiAl95/5 Nickel Alloy Thermal Spray Wire




Chemical Composition:
NiAl95/5 thermal spray wire has high nickel and 4.5~5.5% Aluminum, other chemical composition see below sheet:

AlNiMnTiSiFeCuC
4.5~5.5Bal.Max0.3Max0.4Max0.5Max0.3Max0.08Max0.005


NiAl95/5 thermal spray wire is a solid wire specifically designed for arc spray systems. It is self-bonding to most materials and requires minimal surface preparation.

Physical Properties:
Main physical properties of NiAl95/5 thermal spray wire is density, size and melting point.

Density.g/cm3Normal size.mmMelting point.ºC
8.51.6mm-3.2mm1450


Typical Deposit Characteristics:

Typical HardnessHRB 75
Bonding StrengthMin 55Mpa
Deposit Rate10 lbs/hr/100A
Deposit Efficiency70%
Wire Coverage0.9 oz/ft2/mil


Application:
1>Bond coat
2>Dimensional restoration

Packaging & Shipping:

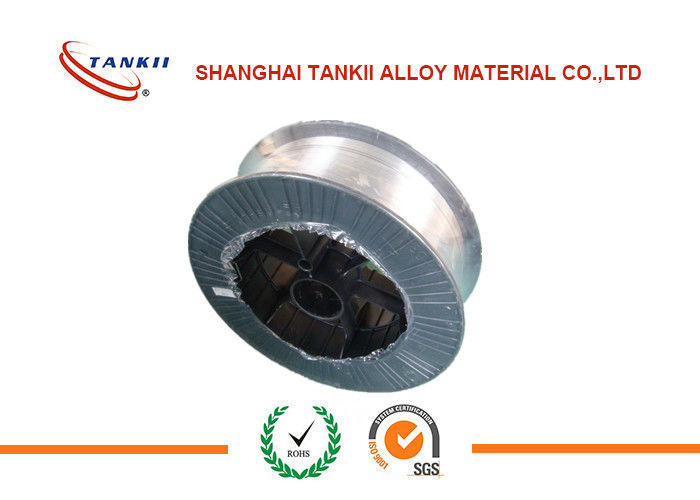

For all the thermal spray wire, we packed in 15kg/spool, spool packed in a carton. All the cartons packed in wooden pallet or wooden case.

Packaging:Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires , we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5 0
Shipping: We cooperation with many logistics company,We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.

Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5 1

Size 1.6mm 2.0mm Thermal Spray Wire Nickel Aluminum Ni95Al5 / Nial 95/5 2


1.>What is your min order?

For the Thermal spray wire, Our min order is 15kg .

2.>What is the wire weight of each spool?
he wire weight of each spool is around 15kg, also can be produce according to customers' requirement.
3.>Whether can you provide a Mill Test Certification?
We can provide a Test certification after production.
4.>How can I contact with your company?
Our sales team is ready to serve you via Email, Telephone , Fax or Skype.
Tel:+86-21-56110178 *809
Fax:+86-21-56116916
