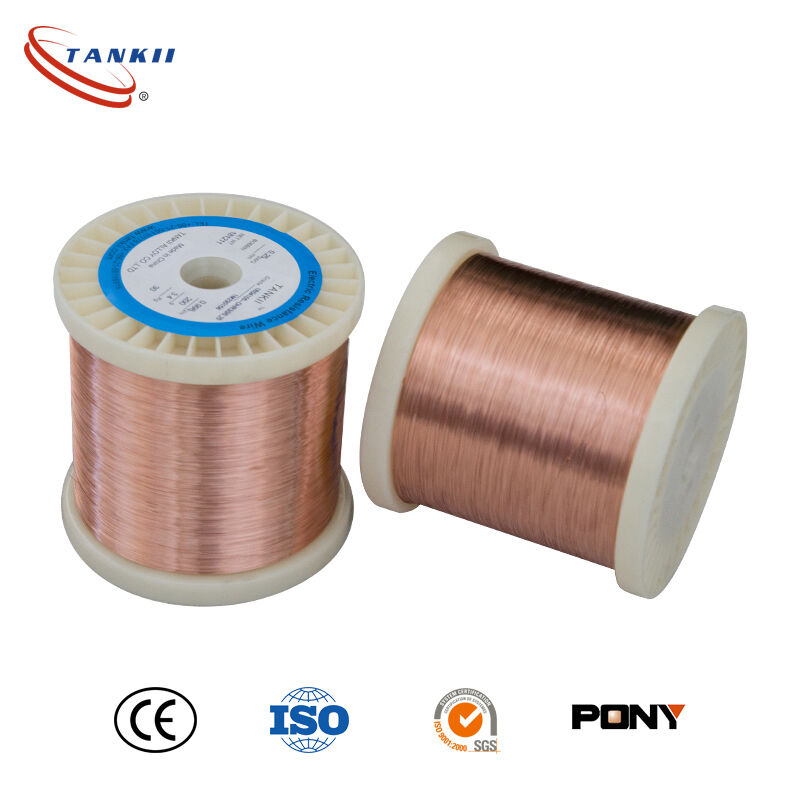

0.01mm Enameled CuNi44 Constantan Ultra Fine Micro Wire

Name: 0.01mm Enameled CuNi44 Constantan Ultra Fine Micro Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi44
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: CuNi44

Payment & Shipping Terms

Minimum Order Quantity: 1kg

Price: negotiation

Packaging Details: Cardboard packaging+wooden box

Delivery Time: 7-20days

Payment Terms: T/T

Supply Ability: 500kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Features:	Ultra Fine Diameter, Stable Resistance, Low TCR, Excellent Insulation, Good Flexibility	Material:	Enameled Copper Nickel Alloy
Alloy Grade:	CuNi44 / Constantan	Shape:	Round Wire
Bare Wire Diameter:	0.01-1 Mm	Insulated Wire Diameter:	Customized According To Enamel Grade
Enamel Type:	Polyurethane / Polyester / Polyimide / Customized	Surface:	Enameled
Condition:	Soft Annealed	Resistivity:	0.49 μΩ·m
Applications:	Medical Devices, Precision Electronics, Micro Sensors, Miniature Heating Elements, Electronic Components, Precision Instruments

Features:	Ultra Fine Diameter, Stable Resistance, Low TCR, Excellent Insulation, Good Flexibility
Material:	Enameled Copper Nickel Alloy
Alloy Grade:	CuNi44 / Constantan
Shape:	Round Wire
Bare Wire Diameter:	0.01-1 Mm
Insulated Wire Diameter:	Customized According To Enamel Grade
Enamel Type:	Polyurethane / Polyester / Polyimide / Customized
Surface:	Enameled
Condition:	Soft Annealed
Resistivity:	0.49 μΩ·m
Applications:	Medical Devices, Precision Electronics, Micro Sensors, Miniature Heating Elements, Electronic Components, Precision Instruments

Description

0.01mm Enameled CuNi44 Constantan Ultra Fine Micro Wire

Product Description

0.01mm Ultra Fine Enameled Constantan CuNi44 Wire for Micro Sensor and Medical Equipment

Product Description

0.01mm ultra fine enameled Constantan wire is manufactured from CuNi44 (6J40) copper nickel resistance alloy with excellent electrical stability, low temperature coefficient of resistance and superior flexibility. The ultra-small diameter design allows the wire to be used in compact and precision applications where space and reliability are critical.

Different enamel insulation options including PE, PEI, PI and PAI are available to meet various temperature, mechanical and chemical resistance requirements. The wire provides stable performance during long-term operation and is suitable for micro sensors, medical equipment, precision electronic components, miniature resistors and advanced measurement systems.

Customized diameter, insulation thickness, spool size and packaging solutions are available according to customer requirements.

Tpye of Insulation:

Polyester resistance wire , class 130
Modified polyester resistance wire , class 155
Polyesterimide resistance wire , class 180
Polyester (imide) coated with polyamide-imide resistance wire , class 200
Polyimide resistance wire , class 220

		Constantan 6J40	New Constantan	Manganin	Manganin	Manganin
			6J11	6J12	6J8	6J13
Main Chemical Elements %	Mn	1~2	10.5~12.5	11~13	8~10	11~13
	Ni	39~41	-	2~3	-	2~5
	Cu	REST	REST	REST	REST	REST
			Al2.5~4.5 Fe1.0~1.6		Si1~2
Temperature Range for Components		5~500	5~500	5~45	10~80	10~80
Density		8.88	8	8.44	8.7	8.4
g/cm3
Resistivity		0.48	0.49	0.47	0.35	0.44
μΩ.m,20		±0.03	±0.03	±0.03	±0.05	±0.04
Extensibility		≥15	≥15	≥15	≥15	≥15
%Φ0.5
Resistance		-40~+40	-80~+80	-3~+20	-5~+10	0~+40
Temperature
Quotiety
α,10 -6 /
Thermoelectromotive		45	2	1	2	2
force to Copper
μv/(0~100)

Tpye of Bare Wire

main property type		Cuni1	CuNI2	CuNI6	CuNI10	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
main chemical composition	Ni	1	2	6	10	19	23	30	34	44
	MN	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ± 10%	0.05 ±10%	0.1 ±10%	0.15 ±10%	0.25 ±5%	0.3 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
temperature coefficient of resistance		<100	<120	<60	<50	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>290	>340	>350	>400	>400	>420
elongation		≥25	≥25	≥25	≥25	≥25	≥25	≥25	≥25	≥25
melting point °c		1085	1090	1095	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	59	38	33	27	25	23

0.01mm Ultra Fine Enameled Constantan CuNi44 Wire
