CuNi34 Copper nickel alloy wire NC040 for temperature compensating devices

Name: CuNi34 Copper nickel alloy wire NC040 for temperature compensating devices
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi34
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: CuNi34

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiable

Delivery Time: 15-20 days

Payment Terms: T/T

Supply Ability: 5000t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

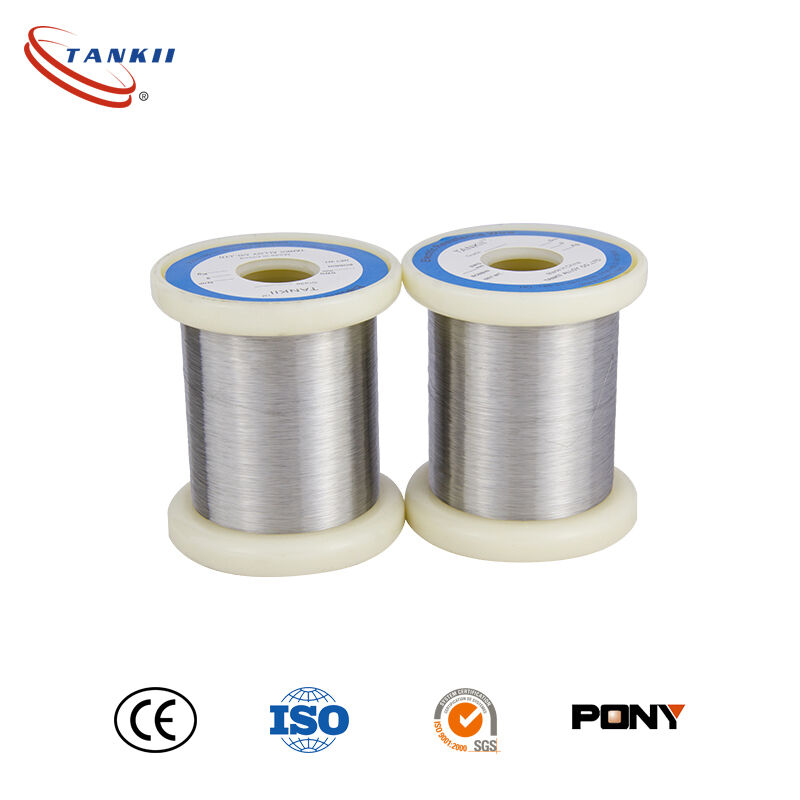

CuNi34 Copper nickel alloy wire NC040 for temperature compensating devices

Copper nickel alloy wire CuNi34(NC040)

The company also provides processing: cuni1 cuni2 cuni6 cuni8 cuni10 cuni14 cuni19 cuni23 cuni30 cuni44 cumn3 and constantan 6 j40 j11
Copper and nickel and purpose: according to the characteristics of low resistance alloy has good corrosion resistance, good welding performance and machining performance, wide application and thermal overload relays, electric heating element in the low voltage circuit breaker and other low voltage apparatus.
Strip specification range

Thickness: 0.01-7 (mm) width: 5-300 (mm), wire diameter 0.05-7 (mm)
Low resistance of copper nickel alloy CuNi34 (NC040), main technical parameters

The main chemical composition	Ni	Mn	Cu
content	34	1	Bal

The highest use temperature	(350 ºC)
Resistivity (20 ºC) mu Ω/m,	0.4 + / - 5%
Temperature coefficient of resistance (a10-6 / %)	< 0
Tensile strength (Mpa)	>= 400
For copper electromotive force V / ºC	- 39
Melting point	(1180 ºC)

Copper nickel alloy wire NC040 for temperature compensating devices

Tags:

Copper Nickel Alloy Wire providing and stable electrical resistance for in industrial temperature measurement and control
