Copper Nickel Alloy Wire providing and stable electrical resistance for in industrial temperature measurement and control

Name: Copper Nickel Alloy Wire providing and stable electrical resistance for in industrial temperature measurement and control
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 6J40
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 6J40

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: negotiable

Delivery Time: 15-20 days

Supply Ability: 300t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Description

Copper Nickel Alloy Wire providing and stable electrical resistance for in industrial temperature measurement and control

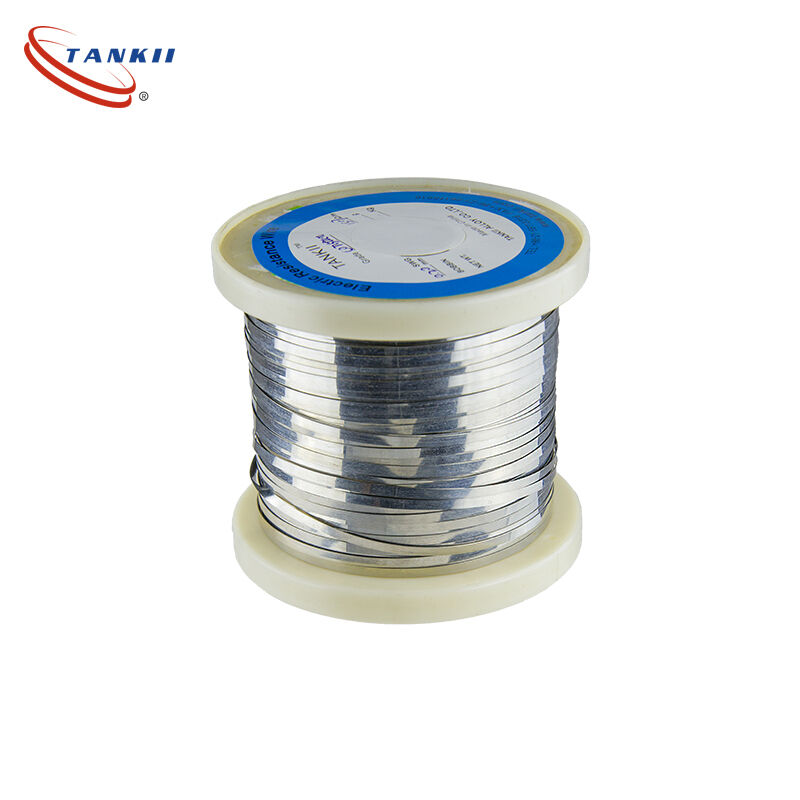

Constantan Eureca Wire / Flat Wire
Product Description
Constantan Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits.
Constantan wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1.50%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

Constantan alloy heating wire(6j40)
