0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy

Name: 0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi44
Price: 31.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: CuNi44

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: 25-37USD/KG

Packaging Details: case

Delivery Time: 10-15days

Payment Terms: T/T,Western Union

Supply Ability: 1000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      CuNi44 copper-nickel alloy flat wire, 0.1mm x 0.2mm flat wire, CuNi44 alloy wire with warranty


Serves:	Small Order Accepted	Sample:	Sample Available
Conductor Type:	Solid	Insulation Material:	Bare
Application:	Water Heater, Heating, Air Condition Or Refrigerator, Water Tube	Standard:	GB/T

Serves:	Small Order Accepted
Sample:	Sample Available
Conductor Type:	Solid
Insulation Material:	Bare
Application:	Water Heater, Heating, Air Condition Or Refrigerator, Water Tube
Standard:	GB/T

Description

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy

CuNi44 Alloy wire use for under floor heating cable.

Product Description
CuNi2 alloy wire: low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2	-	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	200ºC
Resisivity at 20ºC	0.05±10%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	100(max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	140~310 Mpa
Tensile Strength,N/mm2 Cold Rolled	280~620 Mpa
Elongation(anneal)	25%(min)
Elongation(cold rolled)	2%(min)
EMF vs Cu, μV/ºC (0~100ºC)	-8
Micrographic Structure	austenite
Magnetic Property	Non

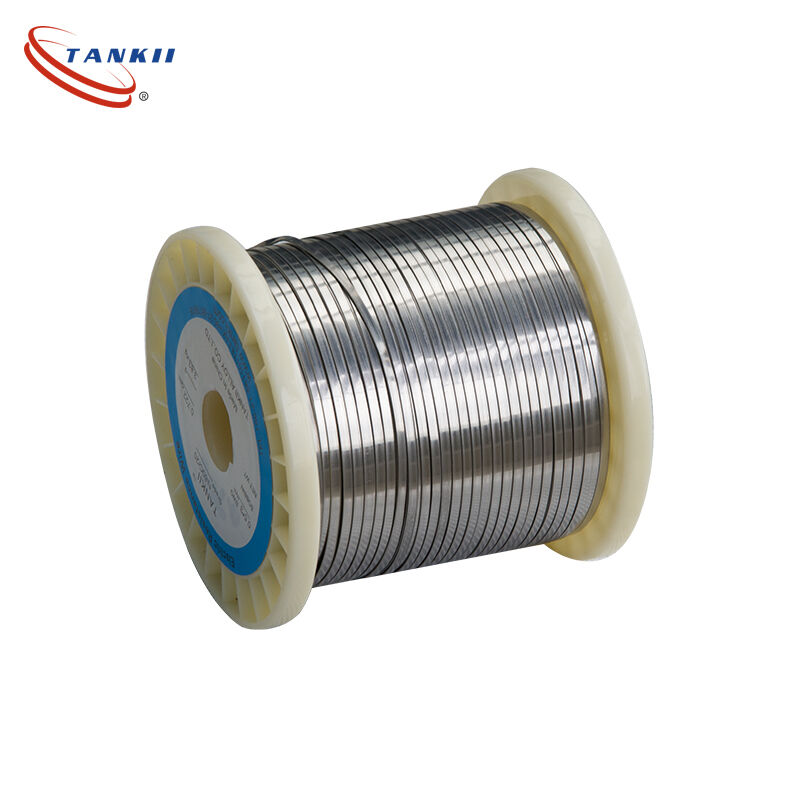

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy 0

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy 1

0.1*0.2mm CuNi44 Copper-Nickel Alloy Flat Wire for Under Floor Heating Cable - Low Resistance Heating Alloy 2
