High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm
High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm
High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm
High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm
High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm
High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm

High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 644025

Payment & Shipping Terms

Minimum Order Quantity: 50pcs

Price: negotiation

Packaging Details: Cardboard packaging

Delivery Time: 10-30days

Payment Terms: T/T

Supply Ability: 5000pcs/month

Get Best Price
Contact Now

Specifications

Description
Specifications
Highlight:
Material:
Fe-Based Nanocrystalline Alloy
Type:
Toroidal Magnetic Core
Size:
64×40×20 Mm
Permeability:
High
Saturation Flux Density:
≥1.2 T
Operating Frequency:
50Hz-100kHz
Application:
Current Transformer, Current Sensor, Power Meter, Energy Meter
Material:
Fe-Based Nanocrystalline Alloy
Type:
Toroidal Magnetic Core
Size:
64×40×20 Mm
Permeability:
High
Saturation Flux Density:
≥1.2 T
Operating Frequency:
50Hz-100kHz
Application:
Current Transformer, Current Sensor, Power Meter, Energy Meter
Description
High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm

Product Description

High Permeability Nanocrystalline Toroidal Core for Current Transformer 64x40x20mm

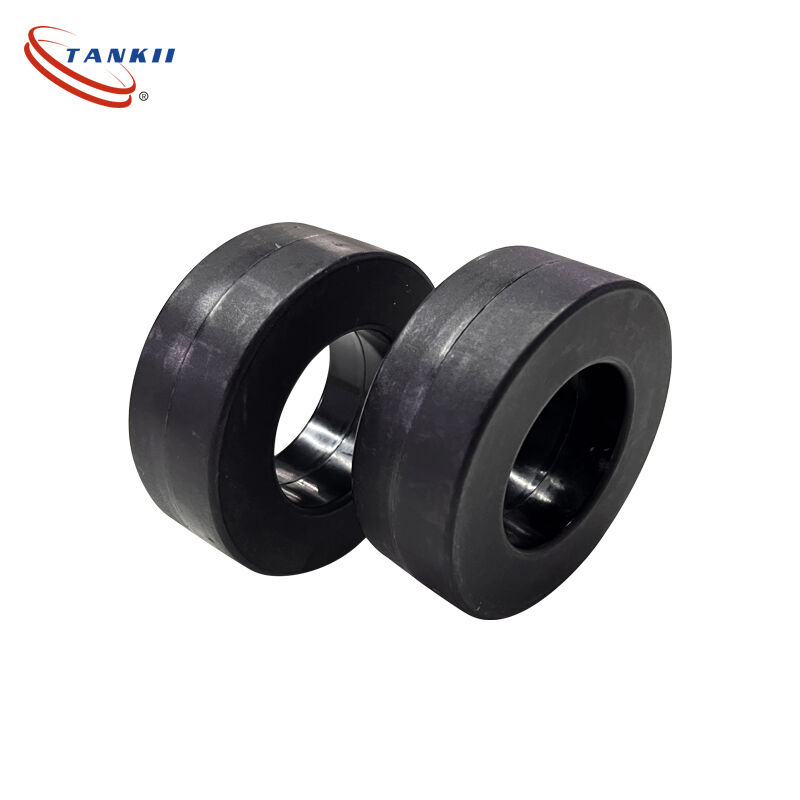

The 644020 nanocrystalline toroidal core is manufactured from advanced 1K101 Fe-based nanocrystalline alloy and protected by a durable plastic housing. The core offers high magnetic permeability, low core loss, excellent frequency characteristics and outstanding temperature stability.

Product Features

  • High initial permeability

  • Low core loss and low coercivity

  • Excellent frequency response

  • High saturation magnetic induction

  • Stable performance over a wide temperature range

  • Plastic encapsulated structure for easy assembly

  • Long service life and reliable operation

Applications

The nanocrystalline core is widely used in:

  • Current transformers (CT)

  • Current sensors

  • Smart meters

  • Energy monitoring systems

  • Power measurement equipment

  • Industrial automation systems

  • Protection relay devices

Technical Specification

Model: 644020

Material: 1K101 Nanocrystalline Alloy

Outer Diameter: 64 mm

Inner Diameter: 40 mm

Height: 20 mm

Core Type: Toroidal Core

Housing: Plastic Encapsulated

Color: Black

64x40x20mm Nanocrystalline Toroidal Core with Plastic Case for Current Transformer64x40x20mm Nanocrystalline Toroidal Core with Plastic Case for Current Transformer64x40x20mm Nanocrystalline Toroidal Core with Plastic Case for Current Transformer64x40x20mm Nanocrystalline Toroidal Core with Plastic Case for Current Transformer64x40x20mm Nanocrystalline Toroidal Core with Plastic Case for Current Transformer
