1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core

Name: 1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 1K101
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO9001

Model Number: 1K101

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: negotiation

Packaging Details: Cardboard packaging

Delivery Time: 7-20days

Payment Terms: T/T

Supply Ability: 500kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Material:	Fe-Based Nanocrystalline Alloy	Grade:	1K101
Thickness:	0.025 - 0.035mm	Width:	5-300 Mm
Saturation Induction:	≥1.20 T	Permeability:	High
Application:	Current Transformer Core

Material:	Fe-Based Nanocrystalline Alloy
Grade:	1K101
Thickness:	0.025 - 0.035mm
Width:	5-300 Mm
Saturation Induction:	≥1.20 T
Permeability:	High
Application:	Current Transformer Core

Description

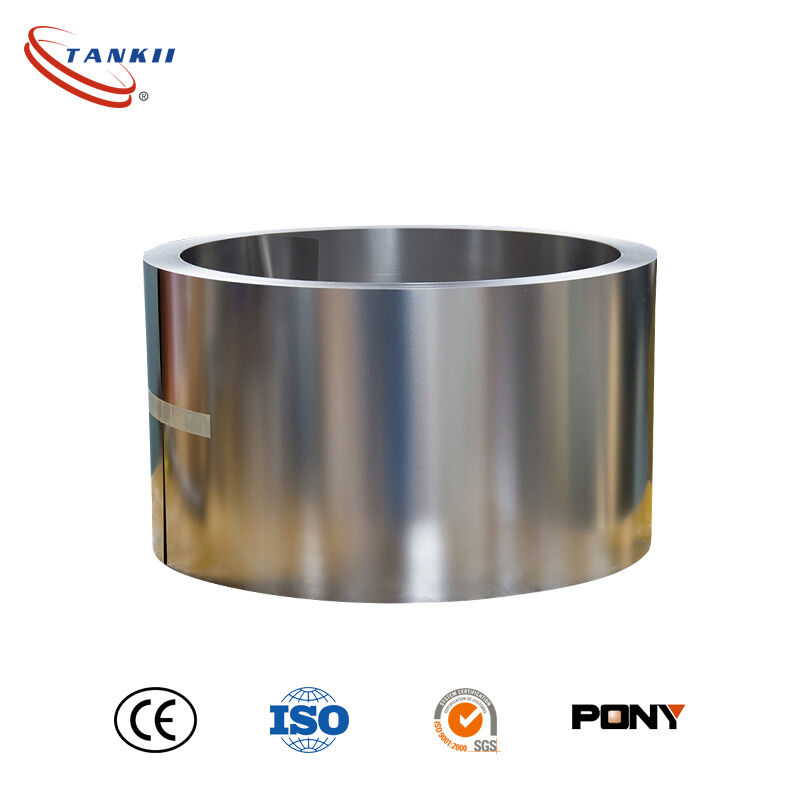

1K101 Nanocrystalline Alloy Ribbon for Current Transformer Core

Product Description

Product Name	1K101 Nanocrystalline Ribbon 0.025mm Soft Magnetic Alloy Strip
Customized support	OEM, ODM
Place of Origin	China
Brand Name	Tankii

Product Introduction:

1K101 nanocrystalline ribbon is a Fe-based soft magnetic alloy manufactured by rapid solidification technology. With a thickness of 0.025 mm, it offers high permeability, low core loss, high saturation flux density and excellent thermal stability. The material is widely used for manufacturing nanocrystalline transformer cores, current transformer cores, current sensors, common mode chokes, EMI suppression components and other high-performance magnetic devices. Custom widths and slit sizes are available according to customer requirements.

Applications:
The product is mainly used to replace silicon steel sheet and used in many ways, such as: different power of frequency distribution transformers, power factor correction inductors, small transformers, high-power rectangular iron core, the output energy storage filter inductors, saturable reactor, anti-jamming filter inductorand IF transformer iron core. The working frequency range of the product is from 50Hz to 10kHz. When it is used as the iron core materials of a high-power switching power reactor , the using frequencies of the product can be up to 50kHz.

Physical Properties
Saturation magnetic flux density Bs	1.5 T
Curie temperature Tc	410ºC
Crystallization temperature Tx	535ºC
Saturationmagnetostriction coefficientλs	27×10-6
Density d	7.18 (g/cm3)
Resistivity ρ	137µΩ·cm
Continuous operating temperature	150ºC
