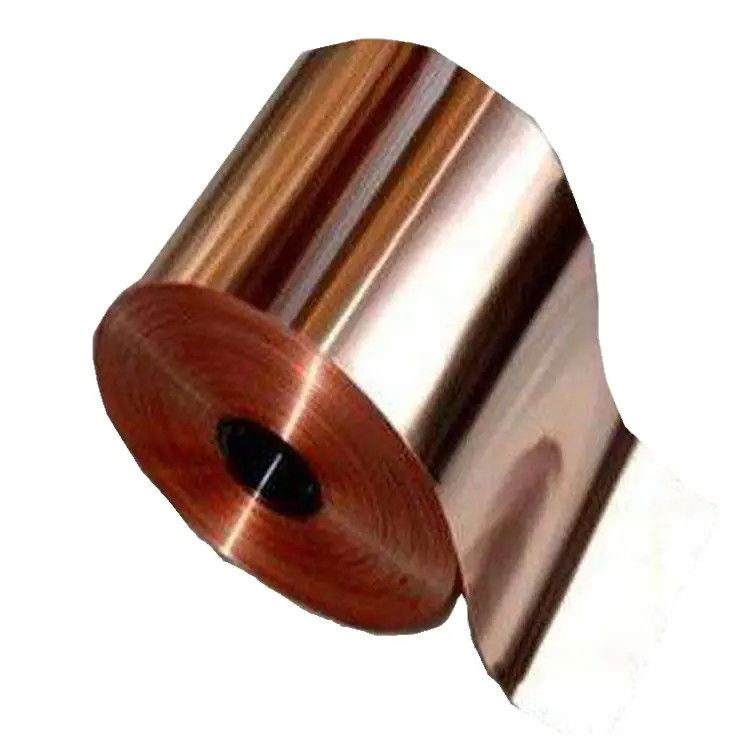

Manganin CuMn12Ni Precision Resistance Foil

Name: Manganin CuMn12Ni Precision Resistance Foil
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: 6J12/6J13
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO 9001

Model Number: 6J12/6J13

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: negotiation

Packaging Details: wood+spools+cardboard box

Delivery Time: 10-25 working days

Payment Terms: T/T

Supply Ability: 500t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Material:	Copper Manganese Nickel Alloy	Resistivity:	0.43-0.48 μΩ·m
Density:	8.4 G/cm³	Thickness:	0.01-0.20 Mm
Width:	2-300 Mm	Surface:	Bright
Condition:	Soft Annealed / Hard	Applications:	Shunt Resistors, Current Sensing Resistors, Precision Resistors, Smart Meters,

Material:	Copper Manganese Nickel Alloy
Resistivity:	0.43-0.48 μΩ·m
Density:	8.4 G/cm³
Thickness:	0.01-0.20 Mm
Width:	2-300 Mm
Surface:	Bright
Condition:	Soft Annealed / Hard
Applications:	Shunt Resistors, Current Sensing Resistors, Precision Resistors, Smart Meters,

Description

Manganin CuMn12Ni Precision Resistance Foil

Manganin CuMn12Ni Precision Resistance Foil

Product Description
Manganin wire widely used for precision resistors with the highest requirements, the resistors should be carefully stabilised and the application temperature should not exceed +60 °C. Exceeding the maximum working temperature in air may result in a resistance drift generated by oxidizing. Thus, the long-term stability can be affected negatively. As a result, the resistivity as well as the temperature coefficient of the electric resistance may slightly change. It is also used as low cost replacement material for silver solder for hard metal mounting.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2~5	11~13	<0.5	micro	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	0-100ºC
Resisivity at 20ºC	0.44±0.04ohm mm2/m
Density	8.4 g/cm3
Thermal Conductivity	40 KJ/m·h·ºC
Temp Coefficient of Resistance at 20 ºC	0~40α×10-6/ºC
Melting Point	1450ºC
Tensile Strength(Hard)	585 Mpa(min)
Tensile Strength,N/mm2 Annealed,Soft	390-535
Elongation	6~15%
EMF vs Cu, μV/ºC (0~100ºC)	2(max)
Micrographic Structure	austenite
Magnetic Property	non
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

Resistance Alloy- Manganin Sizes / Temper Capabilities
Condition: Bright, Annealed, Soft
Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Rod, Bar diameter 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Enameled condition is available
Manganin Alloy Foil Low TCR Resistance Material for Shunts
