CuNi23 Alloy 180 Copper Nickel Resistance Foil

Name: CuNi23 Alloy 180 Copper Nickel Resistance Foil
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi23/Alloy180
Price: 35.00 USD
Availability: InStock

Product Details

Brand Name: TANKII

Certification: ISO 9001

Model Number: CuNi23/Alloy180

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: negotiation

Packaging Details: wood+spools+cardboard box

Delivery Time: 10-25 working days

Payment Terms: T/T

Supply Ability: 500t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Product Name:	CuNi23 Alloy 180 Copper Nickel Resistance Foil	Material:	Copper Nickel Alloy
Nickel Content:	22-24%	Resistivity:	0.18 μΩ·m
Density:	8.9 G/cm³	Conductivity:	Stable
Corrosion Resistance:	Excellent	Thickness:	0.01-0.20 Mm
Width:	2-300 Mm	Length:	Coil Or Customized

Product Name:	CuNi23 Alloy 180 Copper Nickel Resistance Foil
Material:	Copper Nickel Alloy
Nickel Content:	22-24%
Resistivity:	0.18 μΩ·m
Density:	8.9 G/cm³
Conductivity:	Stable
Corrosion Resistance:	Excellent
Thickness:	0.01-0.20 Mm
Width:	2-300 Mm
Length:	Coil Or Customized

Description

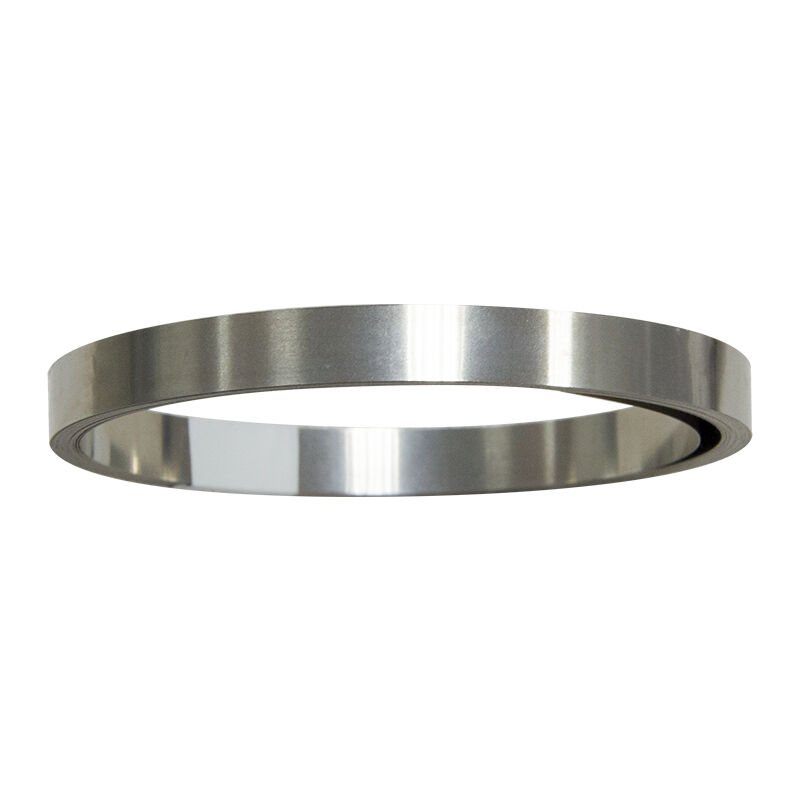

CuNi23 Alloy 180 Copper Nickel Resistance Foil

CuNi23 Alloy 180 Copper Nickel Resistance Foil

Product Description
CuNi23Mn low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
23	0.5	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250ºC
Resisivity at 20ºC	0.35%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	16(Max)
Melting Point	115ºC
Tensile Strength,N/mm2 Annealed,Soft	270~420 Mpa
Tensile Strength,N/mm2 Cold Rolled	350~840 Mpa
Elongation(anneal)	25% (Max)
Elongation(cold rolled)	2% (Max)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite
Magnetic Property	Non

CuNi23Mn Tradenames:
Alloy 180, CuNi 180, 180 Alloy, MWS-180, Cuprothal 180, Midohm, HAI-180, Cu-Ni 23, Alloy 380, Nickel alloy 180

Alloy 180 CuNi23 Resistance Foil for Shunt Resistor Manufacturing
