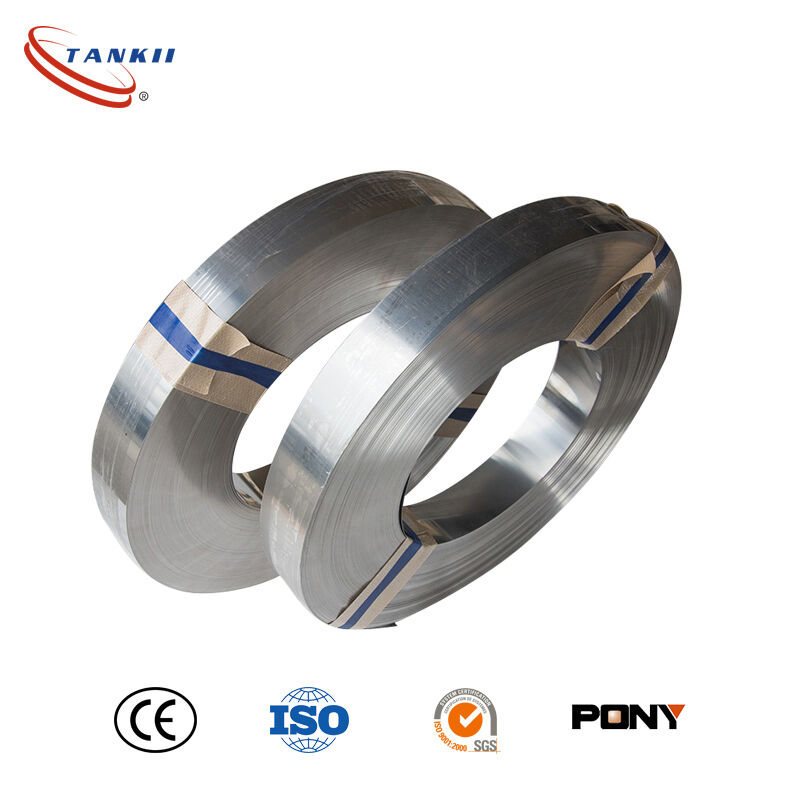

CuNi23 Resistance Strip Alloy 180 with Stable Resistance Characteristics Low Temperature Coefficient and Excellent Formability

Name: CuNi23 Resistance Strip Alloy 180 with Stable Resistance Characteristics Low Temperature Coefficient and Excellent Formability
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi23/Alloy180
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: CuNi23/Alloy180

Payment & Shipping Terms

Minimum Order Quantity: 10

Price: negotiation

Packaging Details: wood+spools+cardboard box

Delivery Time: 10-25 working days

Payment Terms: T/T,L/C,Western Union

Supply Ability: 500t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Alloy Grade:	CuNi23 / Alloy 180	Material:	Copper Nickel Alloy
Thickness:	0.02–3.0 Mm	Width:	2–300 Mm
Surface:	Bright	Condition:	Annealed / Hard
Attribute Value Product Name CuNi23 Resistance Strip Alloy Grade CuNi23 / Alloy 180 Material Copper :	Strip / Foil	Standard:	GB, ASTM, DIN, Customized

Alloy Grade:	CuNi23 / Alloy 180
Material:	Copper Nickel Alloy
Thickness:	0.02–3.0 Mm
Width:	2–300 Mm
Surface:	Bright
Condition:	Annealed / Hard
Attribute Value Product Name CuNi23 Resistance Strip Alloy Grade CuNi23 / Alloy 180 Material Copper :	Strip / Foil
Standard:	GB, ASTM, DIN, Customized

Description

CuNi23 Resistance Strip Alloy 180 with Stable Resistance Characteristics Low Temperature Coefficient and Excellent Formability

CuNi23 Resistance Strip Alloy 180 for Shunt Resistor Manufacturing

Product Description

CuNi23 (Alloy 180) resistance alloy strip is a copper-nickel alloy with stable resistance characteristics, low temperature coefficient and excellent formability. It is widely used in precision resistors, shunt resistors, current sensing devices, measuring instruments and electronic components. The alloy offers reliable electrical performance and is suitable for applications requiring accurate and stable resistance values.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
23	0.5	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250ºC
Resisivity at 20ºC	0.35%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	16(Max)
Melting Point	115ºC
Tensile Strength,N/mm2 Annealed,Soft	270~420 Mpa
Tensile Strength,N/mm2 Cold Rolled	350~840 Mpa
Elongation(anneal)	25% (Max)
Elongation(cold rolled)	2% (Max)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite
Magnetic Property	Non

CuNi23Mn Tradenames:
Alloy 180, CuNi 180, 180 Alloy, MWS-180, Cuprothal 180, Midohm, HAI-180, Cu-Ni 23, Alloy 380, Nickel alloy 180
