CuNi44 Alloy Heating Cable with Constantan Resistance Wire Core for Low Carbon and Corrosion Resistant Applications up to 400ºC

Name: CuNi44 Alloy Heating Cable with Constantan Resistance Wire Core for Low Carbon and Corrosion Resistant Applications up to 400ºC
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi44
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: CuNi44

Payment & Shipping Terms

Minimum Order Quantity: 5kg

Price: negotiable

Packaging Details: spools

Delivery Time: 15-20days

Payment Terms: T/T,L/C

Supply Ability: 500t/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                  CuNi44 alloy heating cable, Constantan resistance wire core, floor pipe heating wire


Model:	CuNi44	Application:	Temperature Controller, Spring, Relay
Cross Section Shape:	Round /flat Wire	Sample:	Accepted
Carbon Content:	Low Carbon	Wire Status:	Soft, Bright , Annealing
Colour:	Silver White	Wire Shape:	Round /flat
Insulation:	Bare

Model:	CuNi44
Application:	Temperature Controller, Spring, Relay
Cross Section Shape:	Round /flat Wire
Sample:	Accepted
Carbon Content:	Low Carbon
Wire Status:	Soft, Bright , Annealing
Colour:	Silver White
Wire Shape:	Round /flat
Insulation:	Bare

Description

CuNi44 Alloy Heating Cable with Constantan Resistance Wire Core for Low Carbon and Corrosion Resistant Applications up to 400ºC

Product Description

Constantan Konstantan Wire/Cuni44 Wire

Constantan Wire Definition

Resistance alloy with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits. Constantan is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1.50%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

Constantan Wire Tradenames:

Cuprothal, Alloy 294, Cuprothal 294, Nico, MWS-294, Cupron, Copel, Alloy 45,

Neutrology, Advance, CuNi 102, Cu-Ni 44, Konstantan

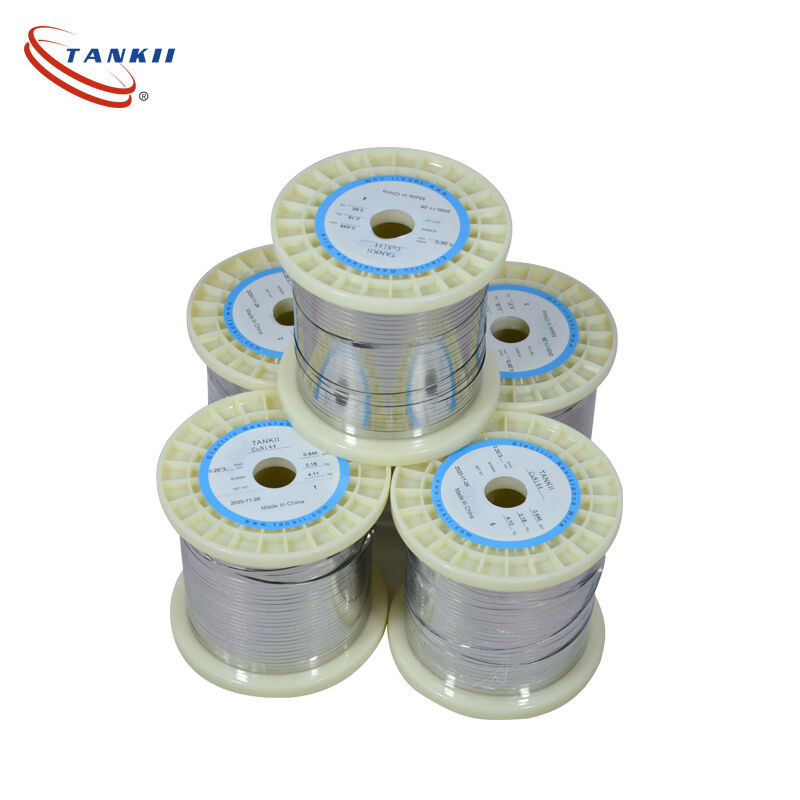

CuNi44 Alloy Heating Cable with Constantan Resistance Wire Core for Low Carbon and Corrosion Resistant Applications up to 400ºC 0
