Tankii Iron Chrome Aluminum Resistance Alloy Wire A1TK1

Product Details

Place of Origin: China

Model Number: TK1

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: 25-35USD/KG

Packaging Details: case

Delivery Time: 10-30days

Payment Terms: T/T

Supply Ability: 2000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                              Iron Chrome Aluminum alloy wire, Copper Nickel resistance wire, A1TK1 alloy wire with warranty


Item:	Tankii Iron Chrome Aluminum Resistance Alloy Wire	Wire Size:	Above 0.05mm
Application:	Heating, Resistor	MOQ:	10~50kg As Per Size

Item:	Tankii Iron Chrome Aluminum Resistance Alloy Wire
Wire Size:	Above 0.05mm
Application:	Heating, Resistor
MOQ:	10~50kg As Per Size

Description

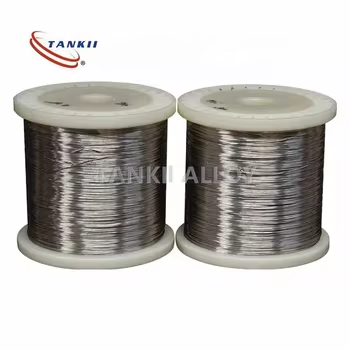

Tankii Iron Chrome Aluminum Resistance Alloy Wire A1TK1

Tankii Iron Chrome Aluminum Resistance Alloy Wire A1TK1

Tankii iron-chrome-aluminum (FeCrAl) resistance alloys are developed with the change in composition of chromium and aluminum elements.
They offer excellent anti-oxidization, anti- sulfur and anti-cementite properties.

TK1 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has proved that: The product process is stable, integrated performance is good. Has good high temperature oxidation resistance and longer service life; Excellent winding properties at room temperature processing, ease of processing molding; Little rebound resilience and so on. Processing performance is better than 0Cr27Al7Mo2, high temperature performance is better than 0Cr21Al6Nb; Operating temperature can reach 1400º C.

Main specifications and uses:
Conventional Product specifications: 0.5 ~ 10 mm

Uses: Mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-temperature furnace heating body.

Properties Grade	TK1
	Cr	Al	Re	Fe
	25.0	6.0	Suitable	Balance
Max Continuous Service Temperature(ºC)	Diameter 1.0-3.0		Diameter>3.0,
	1225-1350ºC		1400ºC
Resisivity 20 (Ωmm2/m)	1.45
Density(g/cm 3 )	7.1
Approximate Melting Point( ºC)	1520
Elongation (%)	16-33
Repeatedly Bend Frequency(F/R) 20	7-12
Continuous Service Time	>60/1350ºC
Micrographic Structure	Ferrite

The relationship between the maximum operating temperature and the furnace atmosphere

Furnace atmosphere	Dry Air	Humid Air	hydrogen-argon gas	Argon	Decomposition ammonia gas
Temp	1400	1200	1400	950	1200

Tankii Iron Chrome Aluminum Resistance Alloy Wire A1TK1
