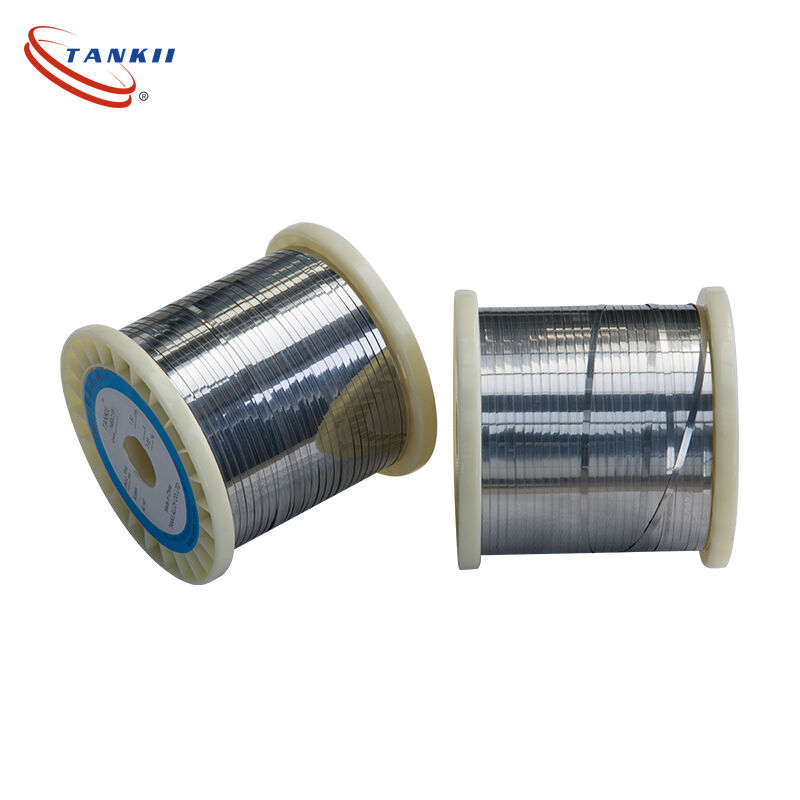

Copper Nickel Alloy Flat Wire 0.3×2.0mm Thermal Relay Heating Element Strip

Name: Copper Nickel Alloy Flat Wire 0.3×2.0mm Thermal Relay Heating Element Strip
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001 Rohs

Model Number: CuNi

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: negotiable

Packaging Details: wooden case

Delivery Time: 15-25days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 2000tons per year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model NO.:	CuNi	Carbon Content:	Low Carbon
Density:	8.9(g/cm3)	Elongation:	25%
Surface:	Bright	Serves:	Small Order Accepted
Size:	0.01-3mm*0.3-600mm	Production Capacity:	2000tons/Year

Model NO.:	CuNi
Carbon Content:	Low Carbon
Density:	8.9(g/cm3)
Elongation:	25%
Surface:	Bright
Serves:	Small Order Accepted
Size:	0.01-3mm*0.3-600mm
Production Capacity:	2000tons/Year

Description

Copper Nickel Alloy Flat Wire 0.3×2.0mm Thermal Relay Heating Element Strip

Cu Ni Wire (CuNi1/CuNi2/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19/CuNi23/CuNi30, CuNi34, CuNi44)

Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44 in form of strip/heet/plate/falt wire/ribbon

Characteristic	Resistivity ( 200C μΩ.m)	Max.working Temperature ( 0C)	Tensile Strength (Mpa)	Melting point (0C)	Density ( g/cm3)	TCR x10-6/ 0C (20~600 0C)	EMF vs Cu (μV/ 0C) (0~100 0C)
Alloy Nomenclature
NC020(CuNi14)	0.2	300	≥310	1115	8.9	<30	-28

Copper Nickel Resistance Alloy-CuNi10
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
10	0.3	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	250ºC
Resisivity at 20ºC	0.15±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	50 (Max)
Melting Point	1100ºC
Tensile Strength,N/mm2 Annealed,Soft	210~370 Mpa
Tensile Strength,N/mm2 Cold Rolled	420~740 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	2% (Min)
EMF vs Cu, μV/ºC (0~100ºC)	-25
Micrographic Structure	austenite
Magnetic Property	Non

Copper Nickel Alloy Flat Wire 0.3×2.0mm Thermal Relay Heating Element Strip 0
