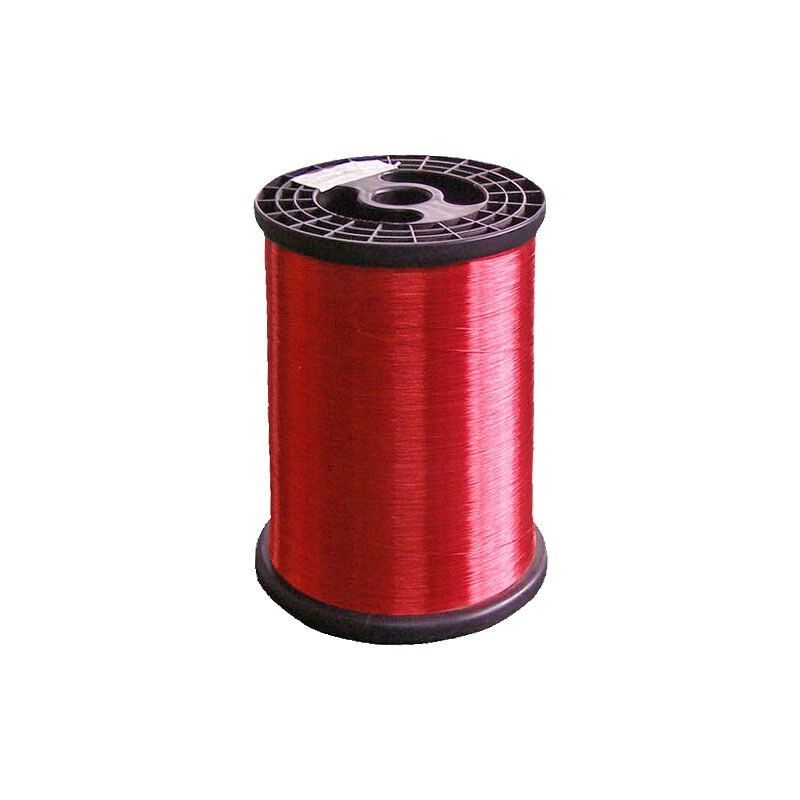

200 Degrees Celsius High Insulation Enameled Nichrome Alloy Wire with 0.01-10mm Size Range

Name: 200 Degrees Celsius High Insulation Enameled Nichrome Alloy Wire with 0.01-10mm Size Range
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Enameled Wire
Price: 30.00 USD
Availability: InStock

Product Details

Place of Origin: China

Certification: ISO9001

Model Number: Enameled Wire

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: 25-35USD/KG

Packaging Details: case

Delivery Time: 10-30days

Payment Terms: Western Union,T/T,D/P,D/A,L/C

Supply Ability: 2000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                          200 Degrees Celsius Nichrome Resistance Wire, High Insulation Copper Nickel Alloy Wire, 0.01-10mm Size Range Enameled Nichrome Alloy Wire


Sample:	Small Order Accepted	Size:	0.01-10mm
Standard:	GB/ASTM/JIS/BIS/DIN

Sample:	Small Order Accepted
Size:	0.01-10mm
Standard:	GB/ASTM/JIS/BIS/DIN

Description

200 Degrees Celsius High Insulation Enameled Nichrome Alloy Wire with 0.01-10mm Size Range

Enameled wire with high insulation and temperature resistance up to 200 degrees Celsius

Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type Of Nichrome Wire

NiCr80/20,NiCr70/30,NiCr60/15,NiCr90/10,NiCr35/20,NiCr30/20

Type of Insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C

Type Of Bare Alloy Wire

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire

main property type		Cuni1	CuNI2	CuNI6	CuNi8	CuNI10	CuNi14	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
main chemical composition	Ni	1	2	6	8	10	14.2	19	23	30	34	44
	MN	/	/	/	/	/	0.3	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	250	300	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ± 10%	0.05± 10%	0.10± 10%	0.12± 10%	0.15± 10%	0.20± 5%	0.25± 5%	0.30± 5%	0.35± 5%	0.40± 5%	0.49± 5%
temperature coefficient of resistance		<100	<120	<60	<57	<50	<38	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>270	>290	>310	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1097	1100	1115	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	75	59	48	38	33	27	25	23

Size:

Round wire:0.018mm~3.0mm

Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.

Ribbon Size:0.01mm*0.2mm~1.2mm*24mm

Moq:5kg each size

200 Degrees Celsius High Insulation Enameled Nichrome Alloy Wire with 0.01-10mm Size Range 0

200 Degrees Celsius High Insulation Enameled Nichrome Alloy Wire with 0.01-10mm Size Range 1

200 Degrees Celsius High Insulation Enameled Nichrome Alloy Wire with 0.01-10mm Size Range 2

200 Degrees Celsius High Insulation Enameled Nichrome Alloy Wire with 0.01-10mm Size Range 3
