Enameled Resistance Wire NiCr A/ Ni80Cr20

Name: Enameled Resistance Wire NiCr A/ Ni80Cr20
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Enameled Ni80Cr20 wire
Price: 30.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Enameled Ni80Cr20 wire

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: 25-35USD/KG

Delivery Time: 10-30days

Payment Terms: Western Union,T/T,D/P,D/A,L/C

Supply Ability: 2000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Enameled NiCr resistance wire, Ni80Cr20 alloy wire, Copper nickel resistance wire


Serves:	Small Order Accepted	Sample:	Free
Standard:	GB/ASTM/JIS/BIS/DIN	Colour:	Silver White
Product Type:	Wire	Carbon Content:	Low Carbon

Serves:	Small Order Accepted
Sample:	Free
Standard:	GB/ASTM/JIS/BIS/DIN
Colour:	Silver White
Product Type:	Wire
Carbon Content:	Low Carbon

Description

Enameled Resistance Wire NiCr A/ Ni80Cr20

Enameled Resistance Wire (NiCr A)

Product Description

These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Tpye of Insulation:

1) Polyester resistance wire , class 130

2) Modified polyester resistance wire , class 155

3) Polyesterimide resistance wire , class 180

4) Polyester (imide) coated with polyamide-imide resistance wire , class 200

5) Polyimide resistance wire , class 220

		Constantan 6J40	New Constantan	Manganin	Manganin	Manganin
			6J11	6J12	6J8	6J13
Main Chemical Elements %	Mn	1~2	10.5~12.5	11~13	8~10	11~13
	Ni	39~41	-	2~3	-	2~5
	Cu	REST	REST	REST	REST	REST
			Al2.5~4.5 Fe1.0~1.6		Si1~2
Temperature Range for Components		5~500	5~500	5~45	10~80	10~80
Density		8.88	8	8.44	8.7	8.4
g/cm3
Resistivity		0.48	0.49	0.47	0.35	0.44
μΩ.m,20		±0.03	±0.03	±0.03	±0.05	±0.04
Extensibility		≥15	≥15	≥15	≥15	≥15
%Φ0.5
Resistance		-40~+40	-80~+80	-3~+20	-5~+10	0~+40
Temperature
Quotiety
α,10 -6 /
Thermoelectromotive		45	2	1	2	2
force to Copper
μv/(0~100)

Tpye of Bare Wire

main property type		Cuni1	CuNI2	CuNI6	CuNI10	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
main chemical composition	Ni	1	2	6	10	19	23	30	34	44
	MN	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ± 10%	0.05± 10%	0.10± 10%	0.15± 10%	0.25± 5%	0.30± 5%	0.35± 5%	0.40± 5%	0.49± 5%
temperature coefficient of resistance		<100	<120	<60	<50	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>290	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	59	38	33	27	25	23

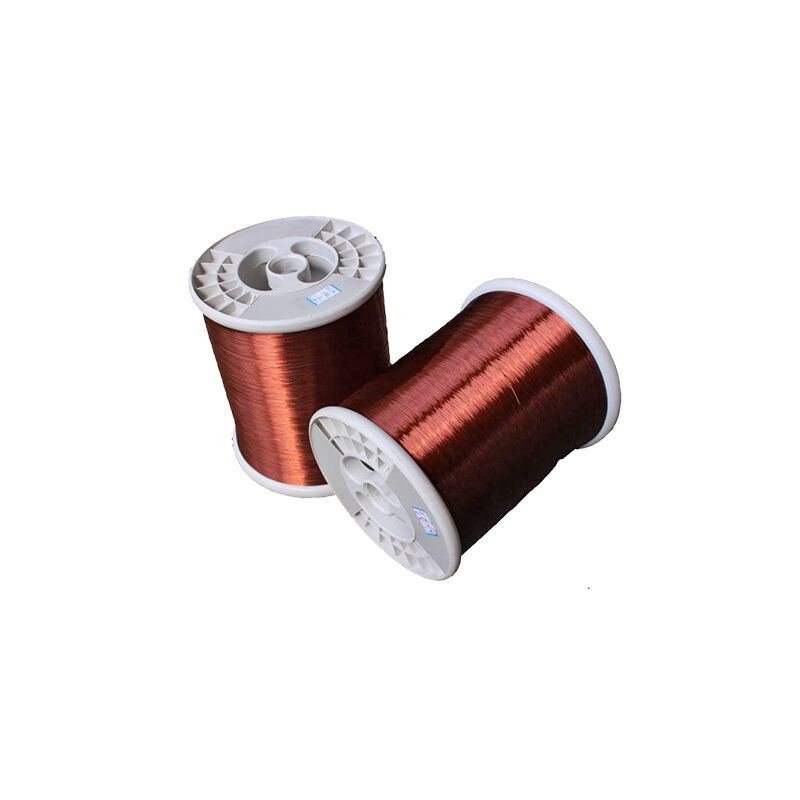

Enameled Resistance Wire NiCr A/ Ni80Cr20 0

Enameled Resistance Wire NiCr A/ Ni80Cr20 1

Enameled Resistance Wire NiCr A/ Ni80Cr20 2
