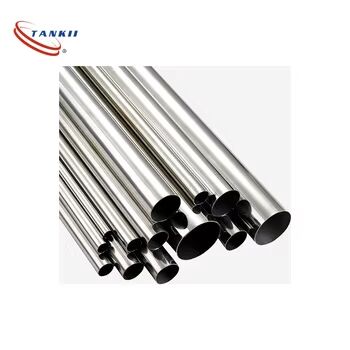

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe

Name: Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Nickel 200 / Ni201
Price: 9.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Nickel 200 / Ni201

Payment & Shipping Terms

Minimum Order Quantity: 1000M

Price: 8-10USD/Kg

Packaging Details: case

Delivery Time: 10-30days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 50000M/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Purity:	99.6% Nickel	Name:	Pure Nickel Pipe
OD:	0.5-40mm	Wall Thickness:	0.02-5.0mm
Length:	3000mm	Material:	Nickel
Product Type:	Wire

Purity:	99.6% Nickel
Name:	Pure Nickel Pipe
OD:	0.5-40mm
Wall Thickness:	0.02-5.0mm
Length:	3000mm
Material:	Nickel
Product Type:	Wire

Description

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe

Nickel 200 and nickel 201 wire. In the form of wire, rod, bar, tube. Tankii alloy is the best alloy producer.
General Description
Commercially wrought Nickel 200 ( UNS N02200) , a grade of pure nickel contains 99.2% nickel, has excellent mechanical properties, magnetic properties, high thermal, electrical conductivity and excellent resistance to many corrosive environment. Nickel 200 is useful in any environment below 600ºF(315ºC). It has highly resistance to neutral and alkaline salt solutions. Nickel 200 also has low corrosion rates in neutral and distilled water.
The applications of pure nickel includes food processing equipment, magnetostrictive devices and rechargeable batteries, computers, cellular Phone, power tools, camcorders and so on.
Chemical Composition

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 200	Min 99.2	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.15	Max 0.01

Physical Data

Density	8.89g/cm3
Specific Heat	0.109(456 J/kg.ºC)
Electrical Resistivity	0.096×10-6ohm.m
Melting Point	1435-1446ºC
Thermal Conductivity	70.2 W/m-K
Mean Coeff Thermal Expansion	13.3×10-6m/m.ºC

Typical Mechanical Properties

Mechanical Properties	Nickel 200
Tensile Strength	462 Mpa
Yield Strength	148 Mpa
Elongation	47%

Our Production Standard

	Bar	Forging	Pipe	Sheet/Strip	Wire
ASTM	ASTM B160	ASTM B564	ASTM B161/B163/B725/B751	AMS B162	ASTM B166

	Main Composition %
	Ni	Mn	Si
NiMn2	Bal.	1.5-2.5	0.3
NiMn3	Bal.	2.3-3.3	0.3
NiMn5	Bal.	4.6-5.4	0.5

Code No.	Dia. mm	TS. N/mm2	Elongation %
NiMn2	≤6.0	≥350	≥20
NiMn3	≤6.0	≥350	≥20
NiMn5	≤6.0	≥350	≥20

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe 0

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe 1

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe 2

Pure Nickel 99.6% Tube Nickel 200 / Ni201 Small Size Tube/Pipe 3
