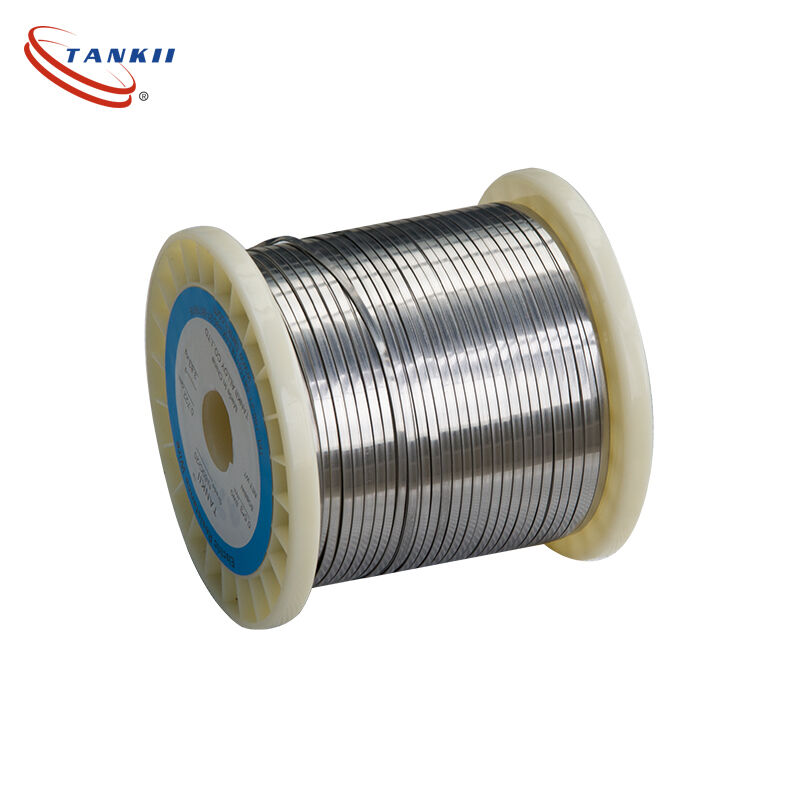

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire

Name: Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni80
Price: 22.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Ni80

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: 20-25USD/Kg

Packaging Details: case

Delivery Time: 15-25days

Payment Terms: Western Union,T/T,D/P,D/A,L/C

Supply Ability: 5000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      Ni80 ribbon flat heating wire, flat resistance wire 120V, copper nickel alloy ribbon wire


Size:	0.03-8.0mm	Max Operating Temperature:	1200 Degree Celsius
Specification:	0.07-8.0mm	Origin:	Shanghai
Production Capacity:	50000 Meter/Day	HS Code:	7505220000

Size:	0.03-8.0mm
Max Operating Temperature:	1200 Degree Celsius
Specification:	0.07-8.0mm
Origin:	Shanghai
Production Capacity:	50000 Meter/Day
HS Code:	7505220000

Description

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire

(Common Name: Ni80Cr20,Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,Alloy 650,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80.)

Ni80 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys

Products Details

1). Chemical composition(%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
0.03	0.02	0.15	0.60	0.75-1.60	20.0~23.0	Bal.	Max0.5	Max1.0	_

2).Typical Mechanical properties(1.0mm)

Yield strength	Tensile Strength	Elongation
Mpa	Mpa	%
420	810	30

3).Typical Physical properties

Density (g/cm3)	8.4
Electrical resistivity at 20ºC(Ωmm2/m)	1.09
Conductivity coefficient at 20ºC (WmK)	15

4).Coefficient of Thermal Expansion

Temperyure	Coefficient of Thermal Expansion x10-6/ºC
20 ºC- 1000ºC	20

5).Specific Heat Capacity

Temperature	20ºC
J/gK	0.46
Melting point (ºC)	1400
Max continuous operating temperature in air (ºC)	1200
Magnetic properties	non-magnetic

6).Temperature Factors for Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	600ºC
1	1.006	1.012	1.018	1.025	1.018
700ºC	800ºC	900ºC	1000ºC	1100ºC	1300ºC
1.01	1.08	1.01	1.014	1.021	-

2. Style of Supply

Alloys name	Type	Dimension
OhmAlloy109W	Wire	D=0.03mm~8mm
OhmAlloy109R	Ribbon	W=0.4~40	T=0.03~2.9mm
OhmAlloy109S	Strip	W=8~250mm	T=0.1~3.0
OhmAlloy109F	Foil	W=6~120mm	T=0.003~0.1
OhmAlloy109B	Bar	Dia=8~100mm	L=50~1000

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire 0

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire 2

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire 3

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire 4

Ni80 Ribbon Flat Wire Thickness: 0.02-8.0mm Width: 0.5-230mm 120V Flat Resistance/Heating Wire 5
