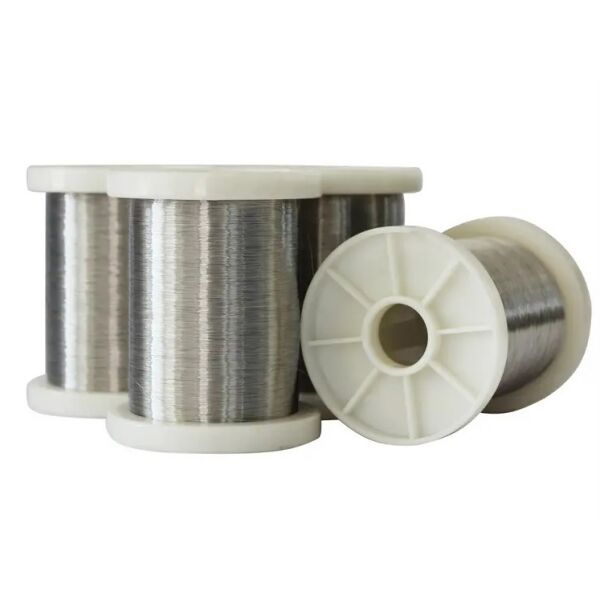

Tankii E Type Chromel Constantan Bare Thermocouple Wire

Name: Tankii E Type Chromel Constantan Bare Thermocouple Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: E Type
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: E Type

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: 20-50USD/Kg

Packaging Details: case

Delivery Time: 10-15days

Payment Terms: L/C,D/A,D/P,T/T,Western Union

Supply Ability: 5000kg/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Conductor:	K, J, T, E, N,	Dia:	0.05~12mmm
Surface:	Bright/ Oxidized	Item:	Bare Thermocouple Wire Type E NiCr Via Constantan

Conductor:	K, J, T, E, N,
Dia:	0.05~12mmm
Surface:	Bright/ Oxidized
Item:	Bare Thermocouple Wire Type E NiCr Via Constantan

Description

Tankii E Type Chromel Constantan Bare Thermocouple Wire

Bare Thermocouple Wire type E NiCr via constantan
What's E type thermocouple wire ?
NiCr- CuNi thermocouple (type E) is also named NiCr-Constantan thermocouple. It has a stronger signal & higher accuracy than the Type K or Type J at moderate temperature ranges of 1,000F and lower. The type E is also more stable than the type K, which adds to its accuracy.

Type E thermocouple has the largest EMF output and highest sensitivity, so it is ideal for measuring small temperature change. It also has good stability in the low temperature range up to 300ºC, and good property of anti-corrosion in humidity atmosphere. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in reducing atmosphere and atmosphere with sulphur gases.

Detailed Parameter of thermocouple wire

Chemical Composition
Conductor Name	Polarity	Code	Nominal Chemical Composition /%
Conductor Name	Polarity	Code	Ni	Cr	Cu
NiCr	Positive	EP	90	10	--
Cu-Ni(Constantan)	Negative	EN	45	--	55

Working Temperature Range
Diameter/mm	Long time Working temperature /ºC	Short period Working temperature /ºC
0.3, 0.5	350	450
0.8, 1.0, 1.2	450	550
1.6, 2.0	550	650
2.5	650	750
3.2	750	900

Packaging Details: 500m/1000m per roll with plastic film wrapped and carton package. As the order quantity and customer requirement.
Delivery Detail: By sea/ air. About 7 days, as the order quantity of thermocouple wire.
