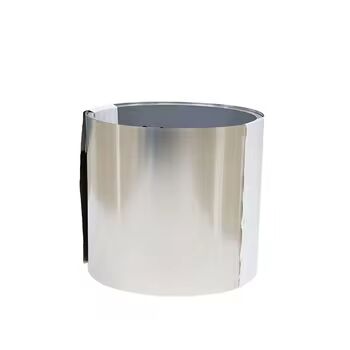

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil

Name: 0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi44 Constantan
Price: 27.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO90001

Model Number: CuNi44 Constantan

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 10Kg

Price: 24-30USD/Kg

Packaging Details: case

Delivery Time: 15-25days

Payment Terms: T/T,D/P,D/A,L/C,Western Union

Supply Ability: 5000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Colour:	Silver White	Standard:	GB/ASTM/JIS/BIS/DIN
Sample:	Small Order Accepted	Surface:	Bright
Density:	8.9(g/cm3)	Resistivity:	0.49+/-5%

Colour:	Silver White
Standard:	GB/ASTM/JIS/BIS/DIN
Sample:	Small Order Accepted
Surface:	Bright
Density:	8.9(g/cm3)
Resistivity:	0.49+/-5%

Description

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

main specifications and main technical parameter of resistance alloy constantan wire

main property type		NC003 Cuni1	NC005 CuNI2	NC010 CuNI6	NC015 CuNI10	NC025 CuNi19	NC030 CuNi23	NC035 CuNi30	NC040 CuNi34	NC050 CuNI44
main chemical composition	Ni	1	2	6	10	19	23	30	34	44
	MN	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working temperature		/	200	220	250	300	300	350	350	400
density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
resistivity at 20 °c		0.03 ±10%	0.05 ±10%	0.10 ±10%	0.15 ±10%	0.25 ±5%	0.30 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
temperature coefficient of resistance		<100	<120	<60	<50	<25	<16	<10	-0	<-6
tensile strength mpa		>210	>220	>250	>290	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25
melting point °c		1085	1090	1095	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	59	38	33	27	25	23

Application of Constantan
Constantan is a copper-nickel alloy that contains specific minor amounts of additional elements to achieve precise values for the temperature coefficient of resistivity. Careful control of melting and conversion practices results in a very low level of pinholes at ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil 12

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil 13

0.02x100mm CuNi44 Constantan strip Copper Nickel Alloy foil 14
