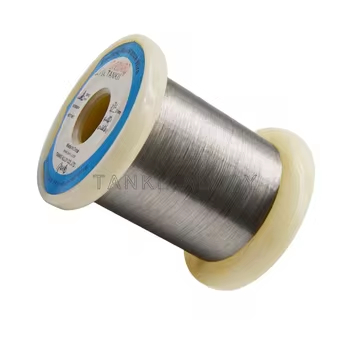

0.02mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5)

Name: 0.02mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5)
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CrAl 25/5
Price: 105.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: CrAl 25/5

Payment & Shipping Terms

Minimum Order Quantity: 5KG

Price: 10-200USD/Kg

Packaging Details: case

Delivery Time: 7-15Days

Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability: 5000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                          FeCrAl alloy resistance wire, CrAl 25/5 heating wire, 0.02mm FeCrAl heating element


Dia.:	0.02-8mm	MOQ:	5KG
Product Name:	FeCrAl Wire	Density:	7.1g/cm3
Quality:	High-Quality	Sample:	Avaliable
Packing:	Wooden Case

Dia.:	0.02-8mm
MOQ:	5KG
Product Name:	FeCrAl Wire
Density:	7.1g/cm3
Quality:	High-Quality
Sample:	Avaliable
Packing:	Wooden Case

Description

0.02mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5)

0.05mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5)

Heating Resistance Wire/China Producer

Nominal Analysis

20.00 Cr, 5.00 Al, Bal. Fe

Max contineous working temperature: 1250 º C.

Melting Temperature: 1500 º C

Electrical Resistivity: 1.4 ohm mm2/m

Has been used extensively as heating elements in industrial furnaces and electrical kilns.

Has less hot strength than Tophet alloys but much higher melting point.

Shanghai TANKII ALLOY MATERIAL Co., Ltd.

MOST PROFESSIONAL ALCHROME AND FECRAL ALLOY PRODUCER IN China

We also produce CrAl 14/4, CrAl 19/3 and other grade resistance wire for industrial demand.

Chemical Composition and Main Property of Fe-Cr-Al Resistance Alloy
Properties Grade		1Cr13Al4	0Cr25Al5	0Cr21Al6	0Cr23Al5	0Cr21Al4	0Cr21Al6Nb	0Cr27Al7Mo2
Main Chemical Composition (%)	Cr	12.0-15.0	23.0-26.0	19.0-22.0	22.5-24.5	18.0-21.0	21.0-23.0	26.5-27.8
	Al	4.0-6.0	4.5-6.5	5.0-7.0	4.2-5.0	3.0-4.2	5.0-7.0	6.0-7.0
	Re	opportune	opportune	opportune	opportune	opportune	opportune	opportune
	Fe	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.	Bal.
							Nb0.5	Mo1.8-2.2
Max Continuous Service Temperature(oC)		950	1250	1250	1250	1100	1350	1400
Resisivity 20oC (Ω mm2/m)		1.25 ± 0.08	1.42 ± 0.06	1.42 ± 0.07	1.35 ± 0.07	1.23 ± 0.07	1.45 ± 0.07	1.53 ± 0.07
Density(g/cm3)		7.4	7.1	7.16	7.25	7.35	7.1	7.1
Thermal Conductivity		52.7	46.1	63.2	60.2	46.9	46.1	45.2
(KJ/m@ h@ oC)		52.7	46.1	63.2	60.2	46.9	46.1	45.2
Coefficient of Thermal Expansion(α × 10-6/oC)		15.4	16	14.7	15	13.5	16	16
Approximate Melting Point( oC)		1450	1500	1500	1500	1500	1510	1520
Tensile Strength(N/mm2)		580-680	630-780	630-780	630-780	600-700	650-800	680-830
Elongation(%)		> 16	> 12	> 12	> 12	> 12	> 12	> 10
Section Variation		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Shrink Rate (%)		65-75	60-75	65-75	65-75	65-75	65-75	65-75
Repeatedly Bend Frequency(F/R)		> 5	> 5	> 5	> 5	> 5	> 5	> 5
Hardness (H. B. )		200-260	200-260	200-260	200-260	200-260	200-260	200-260
Continuous Service Time		no	≥ 80/1300	≥ 80/1300	≥ 80/1300	≥ 80/1250	≥ 50/1350	≥ 50/1350
Micrographic Structure		Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite	Ferrite
Magnetic Property		Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magnetic	Magneti

0.02mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5) 0

0.02mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5) 1

0.02mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5) 2

0.02mm To 10mm FeCrAl Alloy Resistance Wire Used For Heating Elements (CrAl 25/5) 3
