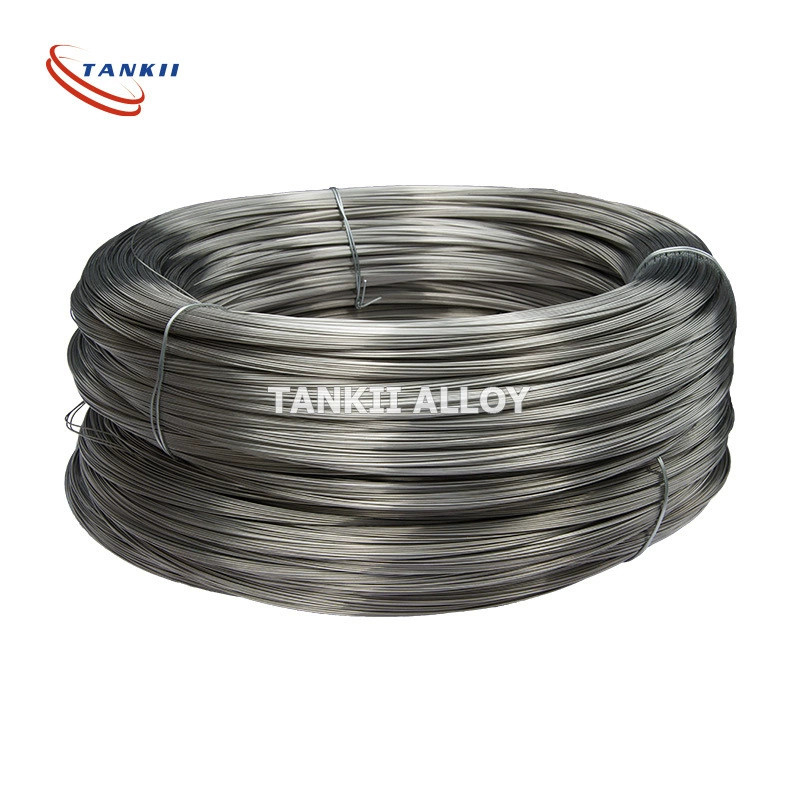

Fecral Alloy Electric Resistance Heating Wire 0Cr25Al5 for Heater Coils

Name: Fecral Alloy Electric Resistance Heating Wire 0Cr25Al5 for Heater Coils
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuMn12Ni
Price: 5 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO

Model Number: CuMn12Ni

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 5USD/Kg

Packaging Details: Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil

Payment Terms: T/T,L/C,Western Union

Supply Ability: 60,000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                              Copper Nickel Alloy Wire, High Temperature Resistant Alloy Wire, High Temperature Copper Nickel Alloy Wire


Version:	3.0.33	Error Message:	Forwarding Failure
Product Name:	Privoxy 3.0.33	Action Required:	Try Again To Check If It's A Temporary Problem Or Verify Forwarding Settings
Failure Description:	SOCKS5 Negotiation Read Failed	Forwarding Server IP:	119.254.30.208
IP Address:	127.0.0.1	Error Code:	503

Version:	3.0.33
Error Message:	Forwarding Failure
Product Name:	Privoxy 3.0.33
Action Required:	Try Again To Check If It's A Temporary Problem Or Verify Forwarding Settings
Failure Description:	SOCKS5 Negotiation Read Failed
Forwarding Server IP:	119.254.30.208
IP Address:	127.0.0.1
Error Code:	503

Description

Fecral Alloy Electric Resistance Heating Wire 0Cr25Al5 for Heater Coils

Fecral Alloy Electric Resistance Heating Wire

Premium Fe-Cr-Al Alloy for High-Temperature Applications

Our FeCrAl alloy heating wires (including 0Cr25Al5, 0Cr23Al5, 0Cr21Al6, and 0Cr21Al6Nb variants) offer exceptional performance characteristics for demanding heating applications. These alloys feature high resistivity, low temperature coefficient, and excellent oxidation resistance at elevated temperatures.

Key Features

High resistivity for efficient heat generation
Low temperature coefficient ensures stable performance
Superior oxidation and corrosion resistance at high temperatures
Wide operating temperature range up to 1400°C
Excellent mechanical properties including tensile strength and elongation

Applications

Ideal for industrial furnaces, household appliances, metallurgical equipment, machinery, aerospace, and automotive applications where reliable heating elements and resistance components are required.

Material Specifications

Alloy Type	Cr Content (%)	Al Content (%)	Max Service Temp (°C)	Resistivity (μΩ/m)
1Cr13Al4	12.0-15.0	4.0-6.0	950	1.25
0Cr25Al5	23.0-26.0	4.5-6.5	1250	1.42
0Cr21Al6	19.0-22.0	5.0-7.0	1250	1.42
0Cr23Al5	20.5-23.5	4.2-5.3	1250	1.35
0Cr21Al6Nb	21.0-23.0	5.0-7.0	1350	1.45
0Cr27Al7Mo2	26.5-27.8	6.0-7.0	1400	1.53

Physical Properties

All alloys feature ferrite microstructure with magnetic properties, excellent thermal stability, and mechanical durability. Typical density ranges from 7.1-7.4 g/cm³ with melting points between 1450-1520°C.

Mechanical Properties

All variants offer tensile strength ranging from 580-830 N/mm², elongation at rupture >10%, and excellent bending fatigue resistance (>5 repeat bending cycles). Hardness typically ranges between 200-260 HB.
