Product Details
Place of Origin: China
Brand Name: TANKII
Certification: ISO
Model Number: Monel 400
Payment & Shipping Terms
Minimum Order Quantity: 20Kg
Packaging Details: Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil
Delivery Time: 7days
Payment Terms: Western Union
Supply Ability: 200000/Month
Type: |
Nickel Alloy |
Ni(Min): |
63% |
Application: |
Cooling Syestem |
Standard: |
ASTM |
Size Range: |
2mm~60mm |
Surface: |
Bright,Oxization,Insulation |
Type: |
Nickel Alloy |
Ni(Min): |
63% |
Application: |
Cooling Syestem |
Standard: |
ASTM |
Size Range: |
2mm~60mm |
Surface: |
Bright,Oxization,Insulation |

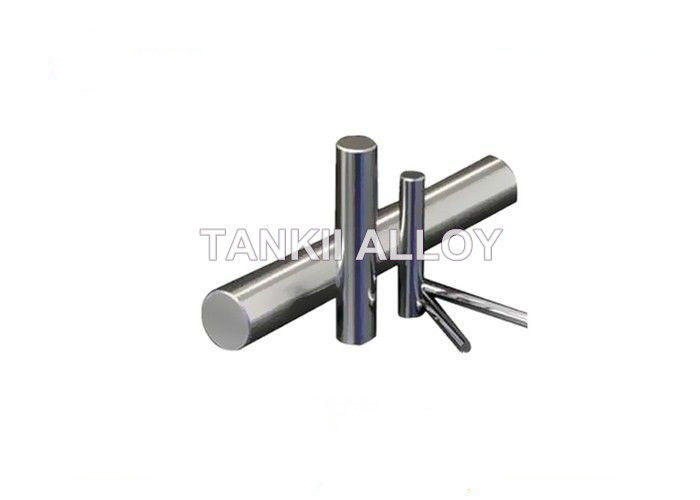

Monel 400/Alloy 400/Nickel 400/UNS N04400/Wr.No.2.4360
Shangahi Tankii Alloy Material Co., Ltd. is a manufacturer of various alloy wire and stainless steel with many years experience. Monel 400 Alloy is a kind of corrosion-resistant alloy. We can supply a full range of this material to fit your requirements.
Monel 400 Physical Properties
Density |
8.83 g/cm³ |
Melting point |
1300-1390 °C |
Monel 400 Chemical Composition
CHEMICAL COMPOSITION % |
||||||
C |
Cu |
Ni |
Fe |
Mn |
Si |
S |
≤0.30 |
28.0∼34.0 |
≥63.0 |
≤2.5 |
≤2.0 |
≤0.5 |
≤0.024 |
Monel 400 Usage
Mainly used in chemical, petrochemical, oil exploration, nuclear industry,
electronic industry and other fields.
Monel 400 Corrosion resistance
Monel 400 alloy in the fluoride gas, hydrochloric acid, sulfuric acid, hydrofluoric acid and their derivatives have a very good corrosion resistance property, and possess better corrosion resistance more than the copper alloy in the sea water. Acid medium: Monel 400 has corrosion resistance in less than 85% consistency of sulfuric acid. Monel 400 is an important material that resistant to hydrofluoric acid. Water corrosion: Monel 400 alloy in most corrosion cases of water, not only excellent corrosion resistance, but also less pitting, stress corrosion, the corrosion rate less than 0.025mm / a. High temperature corrosion: Monel 400 for the work of the highest temperature at about 600 °C in general in the air, in the high temperature steam, the corrosion rate less than 0.026mm / a. Ammonia: Monel 400 can be resistant to an hydrous ammonia and aminate conditions corrosion below 585 °C due to the high nickel.
Monel 400 Application field
Monel 400 alloy is a multi-purpose material in many industrial applications:
1. Seamless water pipe in the power factory
2. Sea-water exchanger and evaporator
3. Sulfuric acid and hydrochloric acid environment
4. Crude distillation
5. Sea-water in the use of equipment and propeller shaft
6. Nuclear industry and used in the manufacture of uranium enrichment isotope separation equipment
7. Manufacturing hydrochloric acid equipment used in the production of pump and valve
Monel 400 Standard
Material |
Sheet/plate |
Round bar |
Welded Pipe/Tube |
Seamless Pipe/Tube |
Forgings |
Alloy 400/Monel 400 /UNS N04400/2.4360 |
ASTM B127 |
ASTM B164 |
ASTM B725 ASTM B730 |
ASTM B165 ASTM B163 |
ASTMB564 |
