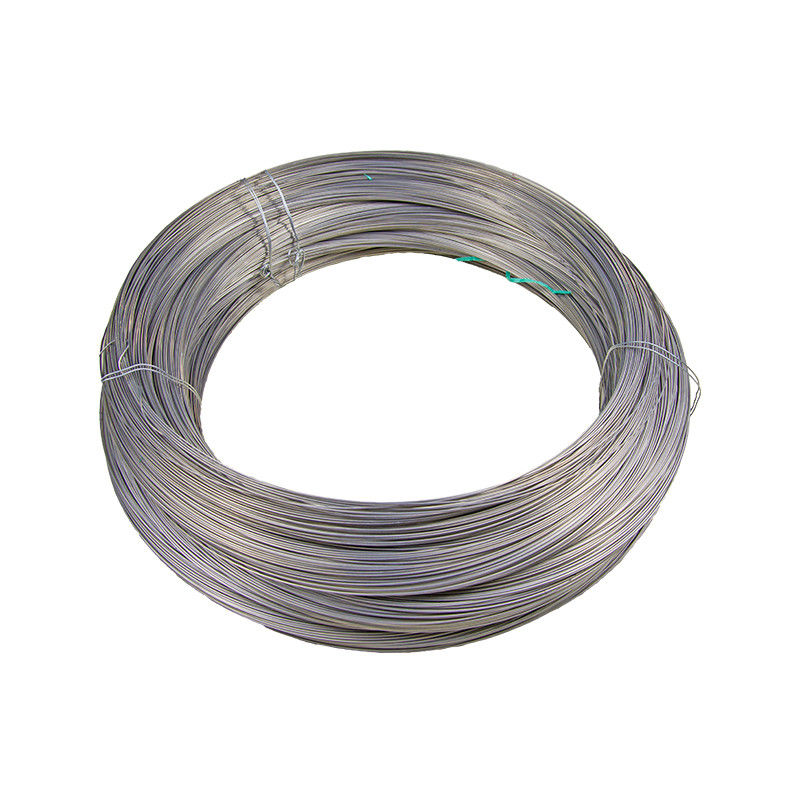

Tankii Constantan Resistance Alloy Wire / CuNi40 / 6J40 Electric Heating Wire

Name: Tankii Constantan Resistance Alloy Wire / CuNi40 / 6J40 Electric Heating Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CUNI40
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001

Model Number: CUNI40

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Electric Heating Constantan resistance alloy Wire, CuNi40 Constantan resistance alloy Wire, 6J40 Constantan resistance alloy Wire


Model NO.:	CuNi40	Size:	0.05-10mm
Density:	8.9g/cm3	OEM:	YES
Standard:	GB/ASTM/JIS/BIS/DIN	Surface:	Bright
Resisivity:	0.48	Trademark:	TANKII ALLOY
HS Code:	7408229000	Production Capacity:	2000 Tons/Year

Model NO.:	CuNi40
Size:	0.05-10mm
Density:	8.9g/cm3
OEM:	YES
Standard:	GB/ASTM/JIS/BIS/DIN
Surface:	Bright
Resisivity:	0.48
Trademark:	TANKII ALLOY
HS Code:	7408229000
Production Capacity:	2000 Tons/Year

Description

Tankii Constantan Resistance Alloy Wire / CuNi40 / 6J40 Electric Heating Wire

Product Description

Constantan Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits.

Constantan wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1.50%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

Type of insulation

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	MW75C
Polyester enamelled wire	155	PEW	MW5C
Polyester-imide enamelled wire	180	EIW	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	MW35C
Polyamide-imide enamelled wire	220	AIW	MW81C

Type of bare alloy wire

Copper-nickel alloy wire,	Constantan Wire,CuNi1~CuNi44 etc.
Ni-Cr Alloy wire	NiCr35/20,NiCr70/30,NiCr60/15,NiCr80/20,NiCr90/10,NiCr AA,Karma. etc.
Fe-Cr-Al Alloy wire	Cr13Al4,Cr21Al4,Cr21Al6,Cr23Al5,Cr25Al5, Cr21Al6Nb,Cr27Al7Mo2, etc.
Cu-Ni-Mn Alloy wire	CuMn12Ni2,CuMn12Ni4,Manganin etc.
Stainless steel Wire	304,316
Silver	Purity 9.99%
golden Wire
Any copper alloy and nickel alloy is available

Our Services

a) We can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.

b) We can provide all kinds of electric heating alloy material and elements, including customized products.

c) We can provide a complete solution for you.

d) OEM service can be provided.

e) Product selection

f) Process optimization

g) New product development
