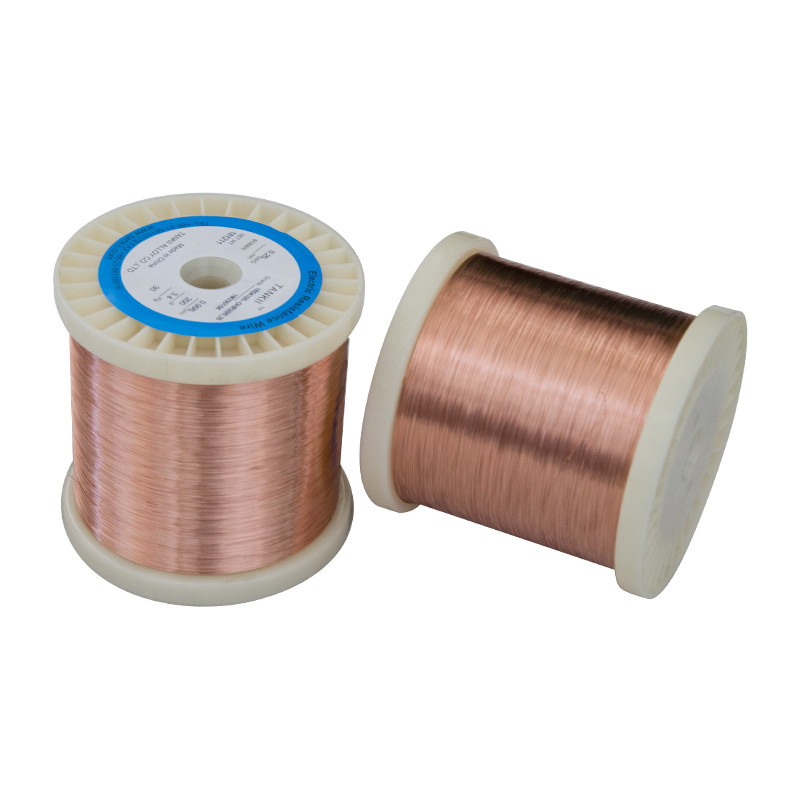

CuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables

Name: CuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi23
Price: 27.00 USD
Availability: InStock

Product Details

Place of Origin: china

Brand Name: tankii

Certification: -

Model Number: CuNi23

Document: Tankii Alloy Catalog.pdf

Payment & Shipping Terms

Minimum Order Quantity: 10kg

Price: USD25-30/kg

Packaging Details: case

Delivery Time: 10-15Days

Payment Terms: T/T

Supply Ability: 50000ton/year

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                    CuNi2 copper nickel Alloy wire, Copper nickel Alloy Wire


Serves:

Small Order Accepted

Sample:

Sample Available

Serves:	Small Order Accepted
Sample:	Sample Available

Description

CuNi23 Copper Nickel Alloy Wire for Underfloor Heating Cables

CuNi23 Copper-nickel Alloy Wire For Under Floor Heating Cable

Product Attributes

Serves:

Small Order Accepted

Sample:

Sample Available

Product Description

CuNi23Mn low resistance heating alloy is widely used in low-voltage circuit breakers, thermal overload relays, and other low-voltage electrical products. It is one of the key materials for low-voltage electrical applications. Our materials feature excellent resistance consistency and superior stability. We supply various forms including round wire, flat wire, and sheet materials.

Chemical Composition (%)

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
30	1.0	-	-	Bal	-	ND \| ND \| ND \| ND

Mechanical Properties

Property	Value
Max Continuous Service Temp	350ºC
Resistivity at 20ºC	0.35%ohm mm²/m
Density	8.9 g/cm³
Thermal Conductivity	10 (Max)
Melting Point	1170ºC
Tensile Strength (Annealed, Soft)	400 Mpa
Elongation (anneal)	25% (Max)
EMF vs Cu, μV/ºC (0~100ºC)	-37
Micrographic Structure	Austenite
Magnetic Property	Non-magnetic

Available Forms & Specifications

Condition: Bright, Annealed, Soft
Wire diameter: 0.02mm-1.0mm (packed in spool), >1.0mm (packed in coil)
Rod/Bar diameter: 1mm-30mm
Strip: Thickness 0.01mm-7mm, Width 1mm-280mm
Enameled condition available
