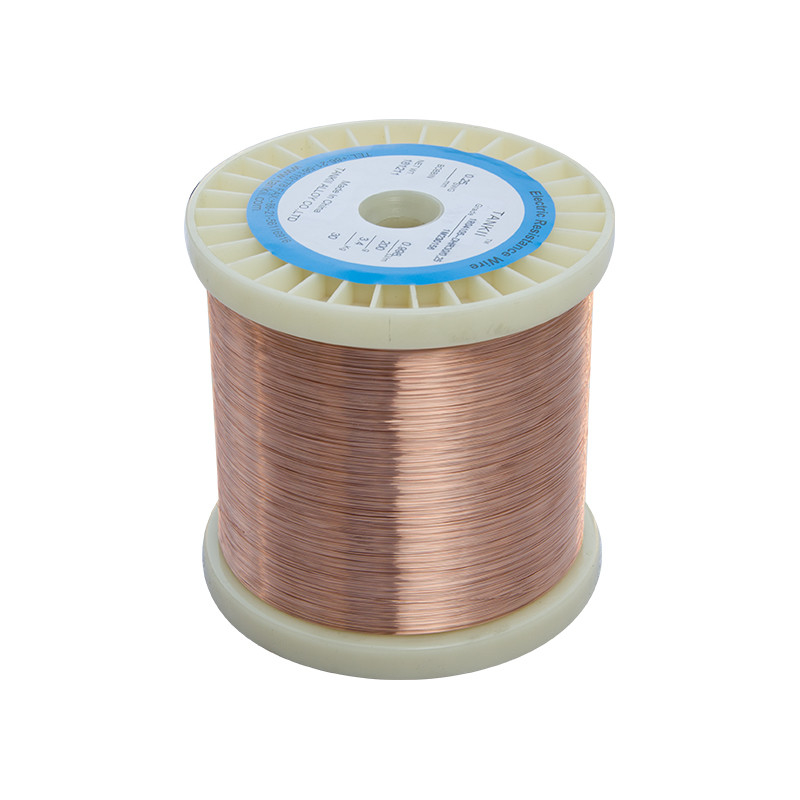

Copper Nickel Alloy CuNi14 NC020 Resistance Heating Wire For Heating Cable

Name: Copper Nickel Alloy CuNi14 NC020 Resistance Heating Wire For Heating Cable
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi 14
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO 9001 SGS

Model Number: CuNi 14

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Heating cable Resistance Heating wire, CuNi14 NC020 Resistance Heating wire, Copper nickel alloy Resistance Heating wire


Model NO.:	CUNI 14	Diameter:	0.05 -10 MM
Surface:	Bright-annealed	Resistivity:	0.20 Ohm Mm2/m +/-4%
Standard:	GB/T, JIS, ASTM,DIN	Density:	8.9 G/cm3
HS Code:	47082200	Production Capacity:	3000 Tons/Year

Model NO.:	CUNI 14
Diameter:	0.05 -10 MM
Surface:	Bright-annealed
Resistivity:	0.20 Ohm Mm2/m +/-4%
Standard:	GB/T, JIS, ASTM,DIN
Density:	8.9 G/cm3
HS Code:	47082200
Production Capacity:	3000 Tons/Year

Description

Copper Nickel Alloy CuNi14 NC020 Resistance Heating Wire For Heating Cable

Copper and nickel and purpose: according to the characteristics of low resistance alloy has good corrosion resistance, good welding performance and machining performance, wide application and thermal overload relays, electric heating element in the low voltage circuit breaker and other low voltage apparatus.

Specification range

Thickness: 0.01-7 (mm) width: 5-300 (mm),
Wire diameter 0.05-10 (mm)

Chemical composition %

Chemical	Ni	Mn	Cu
content	14	0.5	85.5

The highest use temperature (300 ºC)
Resistivity (20 ºC) mu Ω/m, 0.2 + / - 5%
Temperature coefficient of resistance (a10-6 / %) < 30
Tensile strength (Mpa) >= 310
For copper electromotive force V / ºC - 28
Melting point (1115 ºC)

Grades and properties

Type	Electrical resistivity (20degreeΩ mm²/m)	temperature coefficient of resistance (10^6/degree)	Dens ity g/mm²	Max. temperature (°c)	Melting point (°c)
CuNi1	0.03	<1000	8.9	200	1085
CuNi2	0.05	<1200	8.9	200	1090
CuNi6	0.10	<600	8.9	220	1095
CuNi8	0.12	<570	8.9	250	1097
CuNi10	0.15	<500	8.9	250	1100
CuNi14	0.20	<380	8.9	300	1115
CuNi19	0.25	<250	8.9	300	1135
CuNi23	0.30	<160	8.9	300	1150
CuNi30	0.35	<100	8.9	350	1170
CuNi34	0.40	-0	8.9	350	1180
CuNi40	0.48	±40	8.9	400	1280
CuNi44	0.49	<-6	8.9	400	1280
