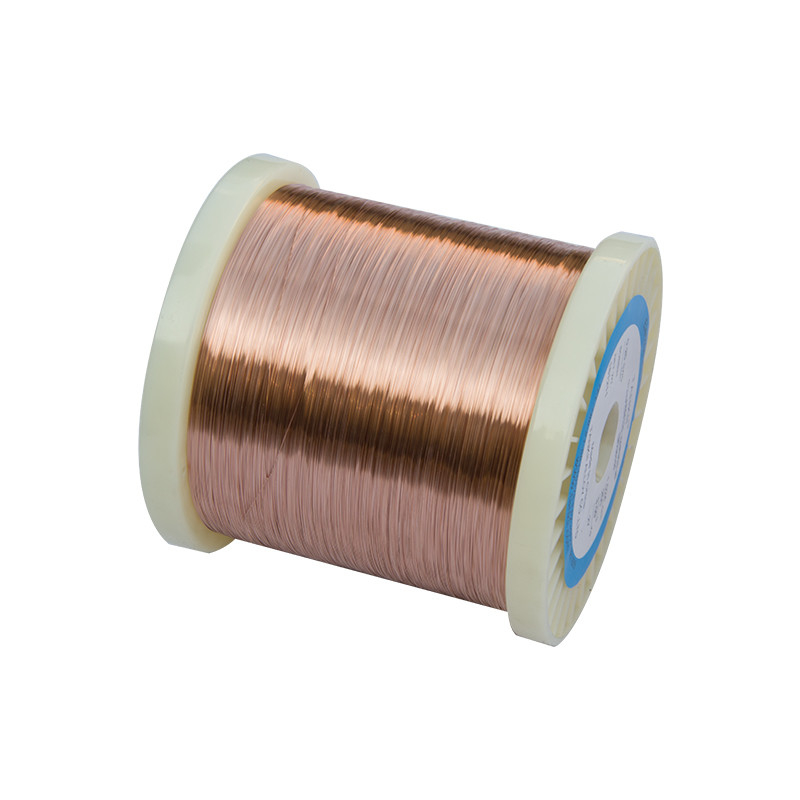

Electric Resistance Wire Copper Nickel CuNi6 Wire / Copper Nickel Alloy Wire

Name: Electric Resistance Wire Copper Nickel CuNi6 Wire / Copper Nickel Alloy Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi 6
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO 9001

Model Number: CuNi 6

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Electric Resistance Wire CuNi6 Wire, Copper Nickel CuNi6 Wire, Alloy Wire CuNi6 Wire


Model NO.:	CUNI 6	Diameter:	0.05 -10.00 MM
Surface:	Bright-annealed	Resistivity:	0.10 Ohm Mm2/m +/-4%
Standard:	GB/T, JIS, ASTM,DIN	Density:	8.90 G/cm3
HS Code:	47082200	Production Capacity:	3000 Tons/Year

Model NO.:	CUNI 6
Diameter:	0.05 -10.00 MM
Surface:	Bright-annealed
Resistivity:	0.10 Ohm Mm2/m +/-4%
Standard:	GB/T, JIS, ASTM,DIN
Density:	8.90 G/cm3
HS Code:	47082200
Production Capacity:	3000 Tons/Year

Description

Electric Resistance Wire Copper Nickel CuNi6 Wire / Copper Nickel Alloy Wire

Copper Nickel (CuNi) alloys are medium to low resistance materials typically used in applications with maximum operating temperatures up to 600°C (1,110°F).

With low temperature coefficients of electrical resistance, resistance, and thus performance, is consistent regardless of
temperature. Copper Nickel alloys mechanically boast good ductility, are easily soldered and welded, as well as have outstanding corrosion resistance. These alloys are typically used in high current applications requiring a high level of precision.

Constantan Wire with moderate resistivity and low temperature coefficent of resistance with a flat resistance/temperature curve over a wider range than the "manganins". Constantan also shows better corrosion resistance than the man ganins. Uses tend to be restricted to ac circuits.

Constantan wire is also the negative element of the type J thermocouple with Iron being the positive; type J thermocouples are used in heat treating applications. Also, it is the negative element of the type T thermocouple with OFHC Copper the positive; type T thermocouples are used at cryogenic temperatures.

Copper Nickel Resistance Alloys

Copper Nickel (CuNi) alloys are medium to low resistance materials typically used in applications with maximum operating temperatures up to 400°C (750°F).

With low temperature coefficients of electrical resistance, resistance, and thus performance, is consistent regardless of temperature. Copper Nickel alloys mechanically boast good ductility, are easily soldered and welded, as well as have outstanding corrosion resistance. These alloys are typically used in high current applications requiring a high level of precision.

Type	Electrical resistivity (20degreeΩ mm²/m)	temperature coefficient of resistance (10^6/degree)	Density g/mm²	Max. temperature (°c)	Melting point (°c)
CuNi1	0.03	<1000	8.9	200	1085
CuNi2	0.05	<1200	8.9	200	1090
CuNi6	0.10	<600	8.9	220	1095
CuNi8	0.12	<570	8.9	250	1097
CuNi10	0.15	<500	8.9	250	1100
CuNi14	0.20	<380	8.9	300	1115
CuNi19	0.25	<250	8.9	300	1135
CuNi23	0.30	<160	8.9	300	1150
CuNi30	0.35	<100	8.9	350	1170
CuNi34	0.40	-0	8.9	350	1180
CuNi40	0.48	±40	8.9	400	1280
CuNi44	0.49	<-6	8.9	400	1280

Other Alloy Series We Offer:

FeCrAl Alloy: OCr15Al5, 1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2
NiCr Alloy: Cr20Ni80, Cr30Ni70, Cr20Ni35, Cr20Ni30, Cr15Ni60
CuNi Alloy: NC003, NC010, NC012, NC015, NC020, NC025, NC030, NC040, NC050, Constantan, 6J8/11/12/13
Welding Wire: ERNiCrMo-3/4/13, ERNiCrFe-3/7, ERNiCr-3/7, ERNiCu-7, ERNi-1, ER70S-6
Thermocouple Alloy: K, J, E, T, N, S, R, B, KX, JX, EX, TX, NX
Inconel Alloy: Inconel 600, 601, 617, X-750, 625, 690, 718, 825
Incoloy Alloy: Incoloy 800, 800H, 800HT, 825, 925
Hastelloy Alloy: HC-276, C-22, C-4, HB, B/2/3, X, N
Monel Alloy: Monel 400, K500
High-Temperature Alloys: A-286, Nimonic 80A/90, GH131, GH1140, GH36, GH2706, GH2901, GH3625, GH3536, GH4169
Precision Alloy Series: 1J33, 3J01, 3J9, 4J29, 4J32, 4J33, Invar36, 4J45, FeNi50
Thermal Spray Alloy: Inconel 625, Ni95Al5, Monel 400, 45CT, HC-276, K500, Cr20Ni80
