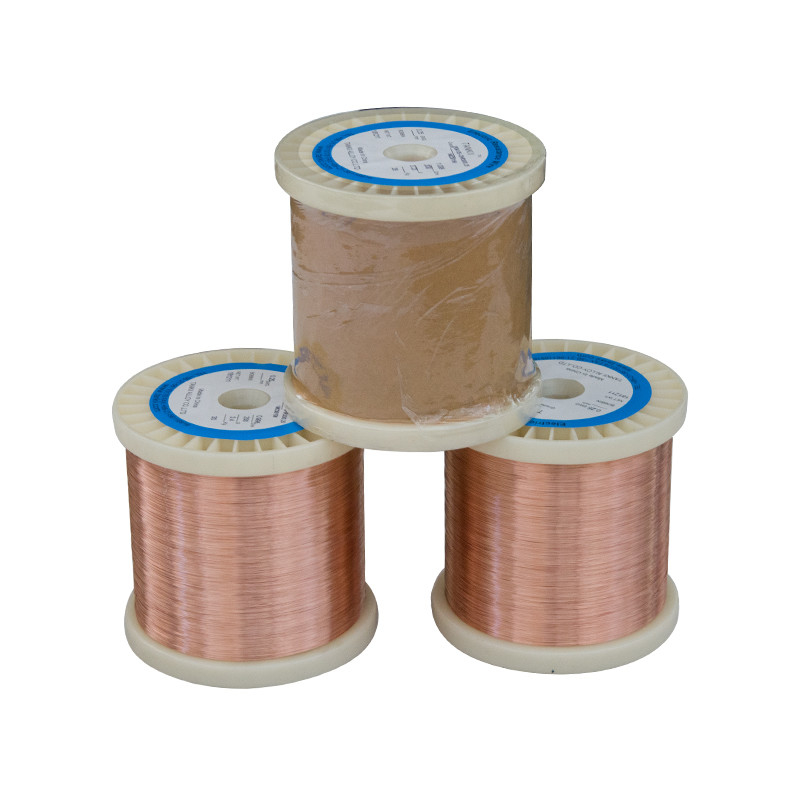

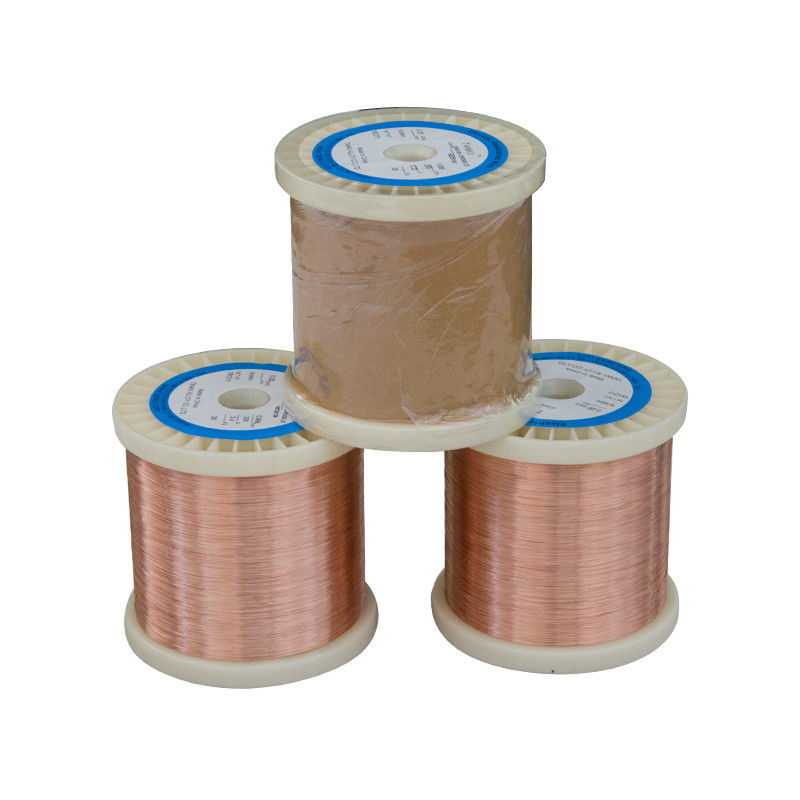

Copper Nickel CuNi 2/NC005/ Electric Alloy Material Resistance Heating Wire

Name: Copper Nickel CuNi 2/NC005/ Electric Alloy Material Resistance Heating Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi2
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001

Model Number: CuNi2

Payment & Shipping Terms

Minimum Order Quantity: 10 KG

Price: negotiable

Packaging Details: Spool + Carton + Wooned Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    CuNi 2/NC005 Resistance Heating Wire, Electric Alloy Material Heating Wire, Electric Alloy Material Resistance Heating Wire


Model NO.:	CUNI 2	Diameter:	0.05 -10.0mm
Surface:	Bright Annealed	Resistivity:	0.05 Ohm Mm2/m +/-3%
Standard:	GB/T, JIS, ASTM Etc.	Density:	8.90 G/cm3
HS Code:	4708220000	Production Capacity:	2000 Tons/Year

Model NO.:	CUNI 2
Diameter:	0.05 -10.0mm
Surface:	Bright Annealed
Resistivity:	0.05 Ohm Mm2/m +/-3%
Standard:	GB/T, JIS, ASTM Etc.
Density:	8.90 G/cm3
HS Code:	4708220000
Production Capacity:	2000 Tons/Year

Description

Copper Nickel CuNi 2/NC005/ Electric Alloy Material Resistance Heating Wire

As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44
General Description
Due to has high tensile strength and increased resistivity values, copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.
Features
1. Higher resistance than copper
2. High tensile strength
3. Good bending proof performance
Application
1. Heating applications
2. Resistance wire
3. Applications with high mechanical requirements
4. Others
Appicaton:
Low-voltage circuit breaker, thermal overload relay, electrical heating cable, electrical heating mats, snow melting cable and mats, ceiling radiant heating mats, Floor heating mats & Cables, Freeze protection cables, electrical heat tracers, PTFE heating cables, hose heaters, and other low-voltage electrical product

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2.0	-	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	200ºC
Resisivity at 20ºC	0.05±10%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	<120
Melting Point	1090ºC
Tensile Strength,N/mm2 Annealed,Soft	140~310 Mpa
Tensile Strength,N/mm2 Cold Rolled	280~620 Mpa
Elongation(anneal)	25%(min)
Elongation(cold rolled)	2%(min)
EMF vs Cu, μV/ºC (0~100ºC)	-12
Micrographic Structure	austenite
Magnetic Property	Non

Copper nickel alloy

Main property		Cuni1	CuNI2	CuNI6	CuNI10	CuNi19	CuNi23	CuNi30	CuNi34	CuNI44
Main chemical composition	Ni	1	2	6	10	19	23	30	34	44
	MN	/	/	/	/	0.5	0.5	1.0	1.0	1.0
	CU	rest	rest	rest	rest	rest	rest	rest	rest	rest
max working Temperature °c		/	200	220	250	300	300	350	350	400
Density g/cm3		8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9	8.9
Resistivity at 20 °c		0.03 ± 10%	0.05 ±10%	0.1 ±10%	0.15 ±10%	0.25 ±5%	0.3 ±5%	0.35 ±5%	0.40 ±5%	0.49 ±5%
Temperature coefficient of Resistance		<100	<120	<60	<50	<25	<16	<10	-0	<-6
Tensile strength Mpa		>210	>220	>250	>290	>340	>350	>400	>400	>420
elongation		>25	>25	>25	>25	>25	>25	>25	>25	>25
Melting point °c		1085	1090	1095	1100	1135	1150	1170	1180	1280
coefficient of conductivity		145	130	92	59	38	33	27	25	23

FAQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
