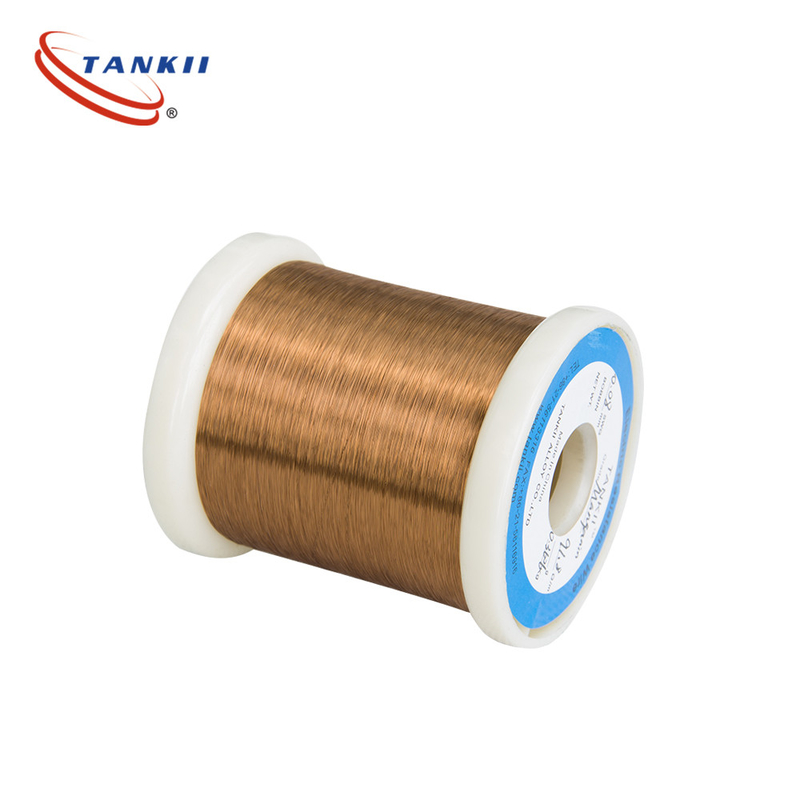

CuNi44 Constantan Strip / Wire / Sheet / Flat Wire for Industrial

Name: CuNi44 Constantan Strip / Wire / Sheet / Flat Wire for Industrial
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi44
Price: 20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: CuNi44

Payment & Shipping Terms

Minimum Order Quantity: 15kg

Price: 20usd/kg

Packaging Details: Standard

Delivery Time: 5-15days

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 100ton/month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                              CuNi44 Constantan Wire, CuNi44 Constantan Sheet, CuNi44 Constantan Strip


Description

CuNi44 Constantan Strip / Wire / Sheet / Flat Wire for Industrial

Basic Info.

Model NO.

CuNi44

Carbon Content

None

PCD

380Min

Hole

Serves

Small Oreder Accepted

Sample

Sample Available

surface

bright

standard

GB/ASTM/JIS/BIS/DIN

density

8.9g/cm3

Elongation

25%

purity

44%Ni

State

Soft 1/4hard 1/2hard hard T-hard

OEM

Yes

MOQ

5kilograms

Transport Package

Coil Cartons, Pallet, Spools, Coils

Specification

0.01-3mm*0.3-600mm

Trademark

TANKII

Origin

China

HS Code

7409400000

Production Capacity

3000 Tons/Year

Product Description

Constantan Strip/Wire/Sheet Cupro-Nickel/Cuni44

Constantan As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
Material: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44.

1. CuNi44, also called Constantan, has a very low temperature coefficient, high electrical resistance, high ductility and non-corroding properties. It is suitable for use at temperatures up to 600° C (1110° F). As a very malleable, very ductile alloy, it has a very good resistance to oxidation.

The alloy is non-magnetic. It is suitable for electrical resistors, potentiometers, heating wires, heating cables and mats. Ribbons are used for heating of bimetals. Another field of application is manufacturing of thermocouples because it develops a high electromotive force (EMF) in association with others metals.

2. Chemical Composition
Alloy Ni% Mn% Fe% Cu%
CuNi44 43 Max 0.5 - Bal.

3. Products and services
1. Pass: ISO9001 certification;
2. Fine after-sale services;
3. Small order accepted;
4. Samples available;

4. Size
Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
Strips: 0.08*5.0-5.0*250mm Bars: D10-100mm

Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
44	1%	0.5	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	400ºC
Resisivity at 20ºC	0.49±5%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	-6(Max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	340~535 Mpa
Tensile Strength,N/mm3 Cold Rolled	680~1070 Mpa
Elongation(anneal)	25%(Min)
Elongation(cold rolled)	≥Min)2%(Min)
EMF vs Cu, μV/ºC (0~100ºC)	-43
Micrographic Structure	austenite
Magnetic Property	Non

Application of Constantan
Constantan is a copper-nickel alloy that contains specific minor amounts of additional
elements to achieve precise values for the temperature coefficient of resistivity. Careful
control of melting and conversion practices results in a very low level of pinholes at
ultra-thin thicknesses. The alloy is used extensively for foil resistors and strain gauges.

FAQ

1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.

3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.

4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.

5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.

6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.

Any questions pls kindly send email to us,thank you.
