Enamelled Copper Wire Copper Cable Nickel Chrome Wire

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: Cu-57

Payment & Shipping Terms

Minimum Order Quantity: 15kg

Price: 20usd/kg

Packaging Details: Standard

Delivery Time: 5-15days

Payment Terms: L/C, D/P, T/T, Western Union

Supply Ability: 100ton/month

Get Best Price
Contact Now
Specifications
Highlight:

Enamelled copper wire

,

Nickel Chrome Enamelled copper wire

,

Nickel Chrome copper wire

Description

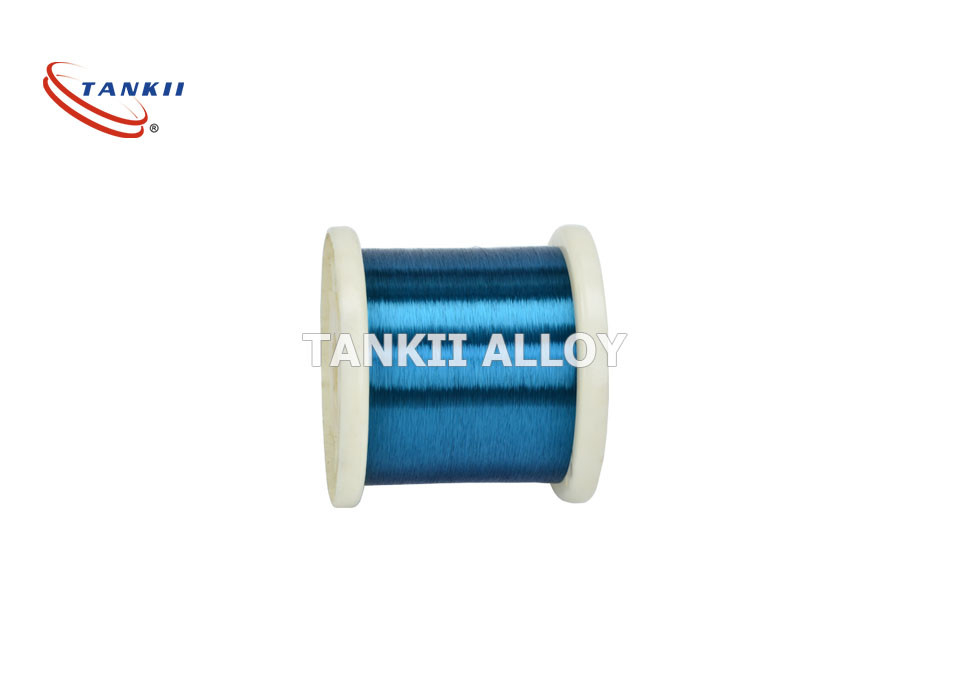

Enamelled Copper Wire Copper Cable Nickel Chrome Wire

Product Description

Enamelled copper wire copper cable nickel chrome wire

Product Description
These enameled resistance wires have been broadly used for standard resistors, automobile
parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.
Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Type of bare Alloy wire
The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire
Size:
Round wire:0.018mm~3.0mm
Color of enamel insulation:Red,Green,Yellow,Black,Blue,Nature etc.
Ribbon Size:0.01mm*0.2mm~1.2mm*24mm
Moq:5kg each size

Type of insulation
Insulation-enamelled Name Thermal LevelºC
(working time 2000h)
Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200 EIWH
(DFWF)
QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C
Enamelled copper wire copper cable nickel chrome wire
Enamelled copper wire copper cable nickel chrome wire
Enamelled copper wire copper cable nickel chrome wire
