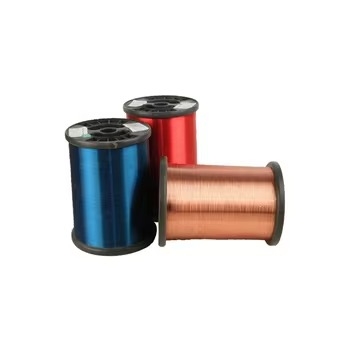

Enamelled Nickel Chrome Resistance Heating Wire 70/30 20-28AWG

Name: Enamelled Nickel Chrome Resistance Heating Wire 70/30 20-28AWG
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuMn12Ni
Price: 30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO

Model Number: CuMn12Ni

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 30USD/Kg

Packaging Details: Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil

Payment Terms: T/T,L/C,Western Union

Supply Ability: 60,000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    Constantan Alloy Copper Nickel Alloy Wire, Copper Nickel Alloy Wire


Resistivity:	0.44	Product Category:	Copper Nickel Alloy Wire
Product Name:	Tankii 6J12 6J8 6J13 6J40 Constantan Alloy Wire	Resistance Stability:	Excellent
Cable Temperature Range:	10~80ºC	Characteristic:	A Small Temperature Coefficient Of Resistance
Strip Width Range:	5-300 (mm)	Application:	Resistor Benchmark Unit

Resistivity:	0.44
Product Category:	Copper Nickel Alloy Wire
Product Name:	Tankii 6J12 6J8 6J13 6J40 Constantan Alloy Wire
Resistance Stability:	Excellent
Cable Temperature Range:	10~80ºC
Characteristic:	A Small Temperature Coefficient Of Resistance
Strip Width Range:	5-300 (mm)
Application:	Resistor Benchmark Unit

Description

Enamelled Nickel Chrome Resistance Heating Wire 70/30 20-28AWG

Enamelled Resistance Heating Wire Nickel 3070 Chrome 70/30

Available in 20AWG, 24AWG, 26AWG, and 28AWG sizes

Product Specifications

Attribute	Value
Resistivity	0.44
Product Category	Copper Nickel Alloy Wire
Product Name	Tankii 6J12 6J8 6J13 6J40 Constantan Alloy Wire
Resistance Stability	Excellent
Cable Temperature Range	10~80ºC
Characteristic	A Small Temperature Coefficient Of Resistance
Strip Width Range	5-300 (mm)
Application	Resistor Benchmark Unit

Product Description

Enamelled Nickel60 Chrome 15 is a nickel-chromium alloy (NiCr alloy) characterized by:

High resistivity
Excellent oxidation resistance
Superior form stability
Good ductility
Excellent weldability

Suitable for use at temperatures up to 1150°C.

1. Chemical Composition (%)

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
0.03	0.02	0.15	0.60	0.75-1.60	20.0~23.0	Bal.	Max0.5	Max1.0	-

2. Typical Mechanical Properties (1.0mm)

Yield Strength (Mpa)	Tensile Strength (Mpa)	Elongation (%)
420	810	30

3. Typical Physical Properties

Density (g/cm3)	8.4
Electrical resistivity at 20ºC(Ωmm2/m)	1.09
Conductivity coefficient at 20ºC (WmK)	15

4. Coefficient of Thermal Expansion

Temperature	Coefficient of Thermal Expansion x10-6/ºC
20ºC-1000ºC	20

5. Specific Heat Capacity

Temperature	J/gK
20ºC	0.46

Melting point: 1400ºC

Max continuous operating temperature in air: 1200ºC

Magnetic properties: non-magnetic

6. Insulation Types

Insulation-enamelled Name	Thermal LevelºC (working time 2000h)	Code Name	GB Code	ANSI. TYPE
Polyurethane enamelled wire	130	UEW	QA	MW75C
Polyester enamelled wire	155	PEW	QZ	MW5C
Polyester-imide enamelled wire	180	EIW	QZY	MW30C
Polyester-imide and polyamide-imide double coated enameled wire	200	EIWH (DFWF)	QZY/XY	MW35C
Polyamide-imide enamelled wire	220	AIW	QXY	MW81C
