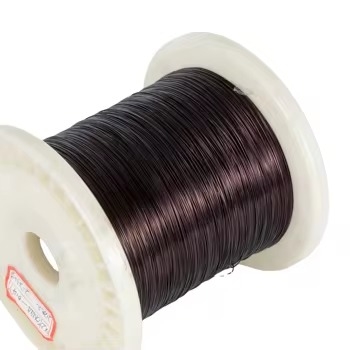

Enameled Copper Nickel Alloy Wire 0.02mm-30mm for Electrical Heating

Name: Enameled Copper Nickel Alloy Wire 0.02mm-30mm for Electrical Heating
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuMn12Ni
Price: 30 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO

Model Number: CuMn12Ni

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 30USD/KG

Packaging Details: Wire diameter 0.02mm-1.0mm packing in spool, big than 1.0mm packing in coil

Payment Terms: T/T,L/C,Western Union

Supply Ability: 60,000kg/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    30mm Copper Nickel Alloy Wire, Shear Modulus Copper Nickel Alloy Wire, 0.02mm Copper Nickel Alloy Wire


Poissons Ratio:	0.320 (Calculated)	Strip Thickness:	0.01~6.0
Wire/Rod/Bar Diameter:	0.02mm-30mm	Tensile Strength, Ultimate:	372 - 517 MPa
Machinability:	20% UNS C36000 (free-cutting Brass) = 100%	Temperature Range:	Suitable For Use At Temperatures Up To 400°C (750°F)
CuNi10Fe1/C70600 Strip/sheet:	Copper Nickels (Copper-Nickel), Copper-Nickel, (90-10)	Product Category:	Copper Nickel Alloy Wire

Poissons Ratio:	0.320 (Calculated)
Strip Thickness:	0.01~6.0
Wire/Rod/Bar Diameter:	0.02mm-30mm
Tensile Strength, Ultimate:	372 - 517 MPa
Machinability:	20% UNS C36000 (free-cutting Brass) = 100%
Temperature Range:	Suitable For Use At Temperatures Up To 400°C (750°F)
CuNi10Fe1/C70600 Strip/sheet:	Copper Nickels (Copper-Nickel), Copper-Nickel, (90-10)
Product Category:	Copper Nickel Alloy Wire

Description

Enameled Copper Nickel Alloy Wire 0.02mm-30mm for Electrical Heating

Enameled Wire Copper Nickel Alloy Wire

Product Attributes

Attribute	Value
Poissons Ratio	0.320 (Calculated)
Strip Thickness	0.01~6.0
Wire/Rod/Bar diameter	0.02mm-30mm
Tensile Strength, Ultimate	372 - 517 MPa
Machinability	20% UNS C36000 (free-cutting brass) = 100%
Temperature Range	Suitable for use at temperatures up to 400°C (750°F)
CuNi10Fe1/C70600 Strip/sheet	Copper Nickels (Copper-Nickel), Copper-Nickel, (90-10)
Product Category	Copper Nickel Alloy Wire

Product Description

Copper nickel alloy has low electric resistance, good heat-resistant and corrosion-resistant properties, and is easy to process and lead weld.

It is used to make key components in thermal overload relays, low resistance thermal circuit breakers, and electrical appliances. It is also an important material for electrical heating cables.

Size Dimension Range

Wire: 0.05-10mm
Ribbons: 0.05*0.2-2.0*6.0mm
Strip: 0.05*5.0-5.0*250mm

CuNi Series

CuNi1 (NC003), CuNi2(NC005), CuNi6(NC010), CuNi8(NC012), CuNi10(NC015), CuNi14(NC020), CuNi19(NC025), CuNi23(NC030), CuNi30(NC035), CuNi34(NC040), CuNi44(NC050)

Technical Specifications

Type	Electrical resistivity (20°C Ω mm²/m)	Temperature coefficient of resistance (10^6/°C)	Density g/mm²	Max. temperature (°C)	Melting point (°C)
CuNi1	0.03	<1000	8.9	/	1085
CuNi2	0.05	<1200	8.9	200	1090
CuNi6	0.10	<600	8.9	220	1095
CuNi8	0.12	<570	8.9	250	1097
CuNi10	0.15	<500	8.9	250	1100
CuNi14	0.20	<380	8.9	300	1115
CuNi19	0.25	<250	8.9	300	1135
CuNi23	0.30	<160	8.9	300	1150
CuNi30	0.35	<100	8.9	350	1170
CuNi34	0.40	-0	8.9	350	1180
CuNi40	0.48	±40	8.9	400	1280
CuNi44	0.49	<-6	8.9	400	1280
