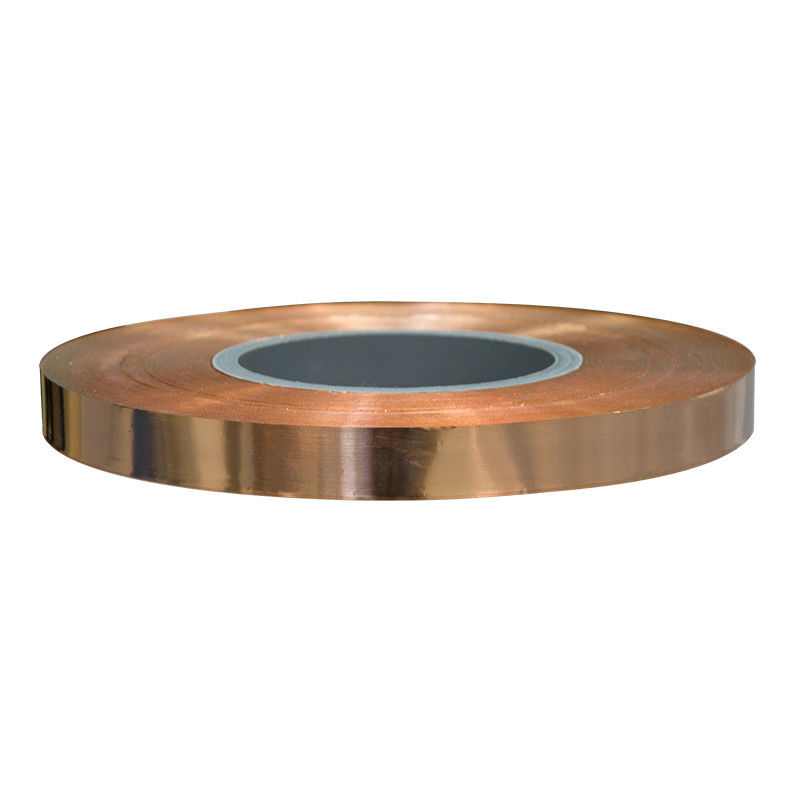

Precision Machined C48600 C37000 C36010 C37700 C5102 C51000 C18150 C18160 C18170 Chrome Bronze Copper strip

Name: Precision Machined C48600 C37000 C36010 C37700 C5102 C51000 C18150 C18160 C18170 Chrome Bronze Copper strip
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: C18150
Price: 35.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001

Model Number: C18150

Payment & Shipping Terms

Minimum Order Quantity: 1000 KG

Price: negotiable

Packaging Details: Wooden Case

Delivery Time: 7-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500 Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                    C37000 Chrome Bronze Copper strip, C51000 Chrome Bronze Copper strip, C36010 Chrome Bronze Copper strip


Model NO.:	C18150	Shape:	Coil
Standard:	GB/T, JIS, ASTM Etc	Trademark:	TANKII
Specification:	0.02-2.5mm Thickness	Origin:	Shanghai
Production Capacity:	3000 Tons/Year	HS Code:	740990

Model NO.:	C18150
Shape:	Coil
Standard:	GB/T, JIS, ASTM Etc
Trademark:	TANKII
Specification:	0.02-2.5mm Thickness
Origin:	Shanghai
Production Capacity:	3000 Tons/Year
HS Code:	740990

Description

Precision Machined C48600 C37000 C36010 C37700 C5102 C51000 C18150 C18160 C18170 Chrome Bronze Copper strip

C18150

C18150 is a copper alloy commonly known as copper-chromium (CuCr). Here’s an overview of its properties, composition, and applications

Properties

High Conductivity: Good electrical and thermal conductivity, although lower than pure copper.
Excellent Strength: High tensile strength due to the presence of chromium, making it suitable for demanding applications.
Good Wear Resistance: Offers resistance to wear and abrasion, useful in high-friction environments.
Heat Resistance: Maintains strength at elevated temperatures, making it ideal for applications involving heat.

Applications

Electrical Contacts: Widely used in electrical connectors and contact materials due to its good conductivity and wear resistance.
Welding Electrodes: Used in resistance welding applications because of its ability to withstand high temperatures and electrical loads.
Industrial Equipment: Suitable for components that require high strength and thermal conductivity, such as parts in motors and generators.

Summary

C18150 is a versatile copper alloy known for its strength, conductivity, and resistance to wear, making it ideal for various electrical and industrial applications.

CHEMICAL COMPOSITION

	Zr%	Cr%	Cu%
Nominal Composition			Bal.
Min	0.03	0.5
Max	0.3	1.2

PHYSICAL PROPERTIES

Density g/cm3	8.9
Conductivity at 20°C %IACS	85
Elastic Modulus GPa	135
Poisson's ratio	0.33
Thermal expansion coefficient 10-6/ K	18.6

MECHANICAL PROPERTIES

State	Yield strength	Tensile strength	Elongation	Hardness
	Mpa	MPa	A50%	HV
R480	≥450	480-570	≥8	150-190
R540	≥500	540-630	≥4	160-200
R600	≥560	600-690	≥2	170-200

Bending performance
Bending thickness: ≤0.5 mm, bending width: 10 mm

State	90° R/T		180° R/T
	GW	BW	GW	BW
R480	0.5	0.5	1	1
R540	1	1	2	2.5
R600	1.5	2.5	-	-

Alloy System	designation	UNS	EN	JIS	GB (China)
Cu	TK11000	C11000	Cu-ETP	C1100	T2
CuCr/Zr	TK15100	C15100	CuZr0.1	C1510	TZr0.1
	TK18160	C18160	CuCr0.5Zr	—
	TK18150	C18150	CuCr1Zr	—	TCr1-0.15
CuCrSiTi	TK18070	C18070	CuCrSiTi	—	TCr0.3-0.2- 0.05
CuNiSnCrTi	TK18090	—	—	—
CuNiP	TK19000	C19000	CuNi1P	—
CuTi	TK19920	C19920	—	—	—
CuFe	TK19210	C19210	CuFe0.1P	C1921	TFe0.1
CuFe	TK19400	C19400	CuFe2P	C1940	TFe2.5
CuNiSi	TK19005	C19005	—	—	—
	TK19010	C19010	CuNiSi	—	—
	TK70260	C70260	CuNi2Si	C7026	BSi2-0.45
	TK70250	C70250	CuNi3SiMg	C7025	BSi3.2-0.7
	TK70250HS	C70250	CuNi4SiMg	C7025	—
CuNiCoSi	TK70318	C70318	CuNi3CoSi	—	—
Special Brass	TK42300	C42300	CuZn10Sn1NiSi	—	—
Special Brass	TK42500	C42500	CuSn3Zn9	—	HSn88-2
CuSn / Bronze	TK14415	C14415	CuSn0.15	—	TSn0.12
	TK51000	C51000	CuSn5	C5102	QSn5-0.2
	TK51100*	C51100	CuSn4	C5111	QSn4-0.3
	TK51900*	C51900	CuSn6	C5191	QSn6-0.2
	TK52100*	C52100	CuSn8	C5210	QSn8-0.3

Precision Machined C48600 C37000 C36010 C37700 C5102 C51000 C18150 C18160 C18170 Chrome Bronze Copper strip 0
