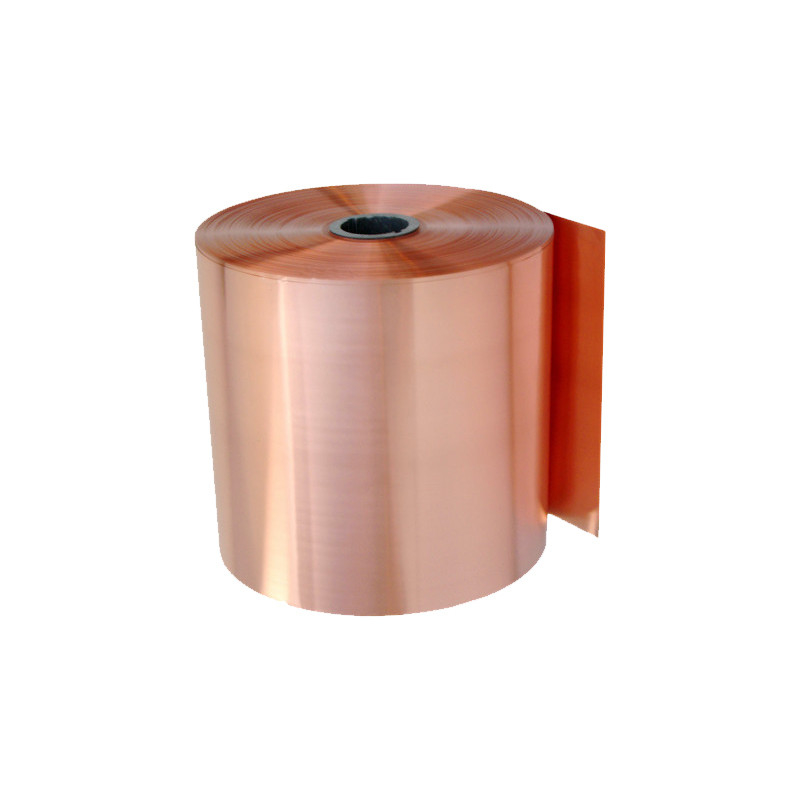

Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001 SGS
Model Number: C19920
Payment & Shipping Terms
Minimum Order Quantity: 3000 KG
Price: negotiable
Packaging Details: Wooned Case
Delivery Time: 7-20 days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 500 Tons per month
Material: |
CUTI Alloy |
Shape: |
Coil |
Grade: |
CuTi3 |
Thickness: |
0.01-3.0mm |
Density: |
8.66 G/cm3 |
Trademark: |
TANKII |
Origin: |
Shanghai, China |
HS Code: |
74099000 |
Material: |
CUTI Alloy |
Shape: |
Coil |
Grade: |
CuTi3 |
Thickness: |
0.01-3.0mm |
Density: |
8.66 G/cm3 |
Trademark: |
TANKII |
Origin: |
Shanghai, China |
HS Code: |
74099000 |
C19920
CHEMICAL COMPOSITION
| Ti% | Cu% | other | |
| Nominal Composition | Bal. | ||
| Min | 2.5 | ||
| Max | 3.5 | 1 |
PHYSICAL PROPERTIES
| Density g/cm3 | 8.66 |
| Conductivity at 20°C %IACS | 12 |
| Elastic Modulus GPa | 120 |
| Poisson's ratio | 0.34 |
| Thermal expansion coefficient 10-6/ K | 17.76 |
MECHANICAL PROPERTIES
| State | Yield strength | Tensile strength | Elongation | Hardness |
| Mpa | MPa | A50% | HV | |
| R880 | 800-900 | 880-1000 | ≥10 | 300 |
| R920 | 850-950 | 920-1050 | ≥6 | 310 |
| R960 | 900-1000 | 960-1100 | ≥3 | 320 |
| R1000 | 950-1050 | 1000-1150 | ≥2 | 330 |
| R1050 | 1000-1100 | 1050-1200 | ≥1 | 340 |
| R1100 | 1050-1200 | 1100-1250 | - | 350 |
Bending performance
Bending thickness: ≤0.15 mm, bending width: 10 mm
| State | 90° R/T | 180° R/T | ||
| GW | BW | GW | BW | |
| R880 | 0 | 0 | - | - |
| R920 | 0 | 0.5 | - | - |
| R960 | 0 | 1 | - | - |
| R1000 | 1 | 3 | - | - |
| R1050 | 3 | 6 | - | - |
| R1100 | - | - | - | - |
|
System |
designation |
UNS |
EN |
JIS |
GB (China) |
| Cu | TK11000 | C11000 | Cu-ETP | C1100 | T2 |
|
CuCr/Zr |
TK15100 | C15100 | CuZr0.1 | C1510 | TZr0.1 |
| TK18160 | C18160 | CuCr0.5Zr | — | ||
| TK18150 | C18150 | CuCr1Zr | — | TCr1-0.15 | |
| CuCrSiTi | TK18070 | C18070 | CuCrSiTi |
— |
TCr0.3-0.2- 0.05 |
| CuNiSnCrTi | TK18090 | — | — | — | |
| CuNiP | TK19000 | C19000 | CuNi1P | — | |
| CuTi | TK19920 | C19920 | — | — | — |
|
CuFe |
TK19210 | C19210 | CuFe0.1P | C1921 | TFe0.1 |
| TK19400 | C19400 | CuFe2P | C1940 | TFe2.5 | |
|
CuNiSi |
TK19005 | C19005 | — | — | — |
| TK19010 | C19010 | CuNiSi | — | — | |
| TK70260 | C70260 | CuNi2Si | C7026 | BSi2-0.45 | |
| TK70250 | C70250 | CuNi3SiMg | C7025 | BSi3.2-0.7 | |
| TK70250HS | C70250 | CuNi4SiMg | C7025 | — | |
| CuNiCoSi | TK70318 | C70318 | CuNi3CoSi | — | — |
|
Special Brass |
TK42300 | C42300 | CuZn10Sn1NiSi | — | — |
| TK42500 | C42500 | CuSn3Zn9 | — | HSn88-2 | |
|
CuSn / Bronze
|
TK14415 | C14415 | CuSn0.15 | — | TSn0.12 |
| TK51000 | C51000 | CuSn5 | C5102 | QSn5-0.2 | |
| TK51100* | C51100 | CuSn4 | C5111 | QSn4-0.3 | |
| TK51900* | C51900 | CuSn6 | C5191 | QSn6-0.2 | |
| TK52100* | C52100 | CuSn8 | C5210 | QSn8-0.3 |
| Product Parameters | |
| Product Name | Copper Coil/Strip |
| Material | C10100 C10200 C12000 C1221 C11000 Copper Coil |
| Type | strip,tape,band,coil,roll |
| Width | 30-1500mm |
| Thickness | 0.005-3.0mm |
| Length | Coil |
| Surface | Mill,Polished,Bright,Oiled |
| Grade | C10100,C11000,C12200,C21000,C22000,C23000,C24000,C26000,C27000,C26800,C27200,C27400, |
| C28000,C36500,C33000,C35300,C35600,C36000,C38500,C44300,C46400,C52100,C54400,C62300, | |
| C1100,C1020,C2680,C2800,C2600, | |
| C2801,C5191,C5210,C2200,C7521,C7541,C17200,C1070,C7701,QSn6.5-0.1,QSn8-0.3,QSn4-0.3, | |
| BZn18-18,BZn15-20,CuBe2 | |
| Prot | Shanghai, tianjin, xiamen, ningbo Etc... |
| Standard | JISH3100-2006,JISH3250-2006,JISH3300-2006,ASTMB152M-06, |
| ASTMB187,ASTMB75M-02,ASTMB42-02,etc | |
| Package | Standard export seaworthy package,suit for all kind of transport,or as required. |
| MOQ | 100Kg |
| Application | Coppercoil have strong, corrosion resistant properties, and become a modern |
| contractor in all of commodity house pipes, heating, | |
| Price Term | Ex-Work,FOB,CNF,CFR,CIF,etc |
| Grade Comparison Table | ||||||||
| Name | China (GB) |
Germany (DIN) |
Europe (EN) |
International Standard(ISO) |
America (UNS) |
Japan (JIS) |
||
| Lead Brass | HPb63-3 | CuZn36Pb1. 5 | 2.0331 | CuZn35Pbl | CW600H | CuZn35Pb1 | C34000 | C3501 |
| Lead Brass | HPb63-3 | CuZn36Pb1. 5 | 2.0331 | CuZn35Pb2 | CW601H | CuZn34Pb2 | C34200 | / |
| Lead Brass | HPb63-3 | CuZn36Pb3 | 2.0375 | CuZn36Pb3 | CW603N | CuZn36Pb3 | C36000 | C3601 |
| Lead Brass | HPb59-l | CuZn39Pb2 | 2.038 | CuZn39Pb2 | CV612N | Cu2n38Pb2 | C37700 | C3771 |
| Lead Brass | HPb58-2.5 | CuZn39Pb3 | 2.0401 | Cu2n39Pb3 | CV614N | Cu2n39Pb3 | C38500 | 3603 |
| Lead Brass | / | CuZn40Pb2 | 2.0402 | CuZn40Pb2 | CW617H | Cu2n40Pb2 | C38000 | C3771 |
| Lead Brass | / | CuZn28Sn1 | 2.047 | CuZn28SnlAs | CW706R | CuZn28Sn1 | C68800 | C4430 |
| Lead Brass | / | CuZn3lSil | 2.049 | CuZn3lSii | CW708R | CuZn3lSi1 | C443CND | / |
| Lead Brass | / | CuZn20Al2 | 2.046 | CuZn20A12 | CW702R | CuZn20A12 | C68700 | C6870 |
| Common Brass | H96 | CuZn5 | 2.022 | CuZn5 | CW500L | CuZn5 | C21000 | C23LOO |
| Common Brass | K90 | CuZn10 | 2023 | CuZn10 | CW501L | CuZn10 | C22000 | C2200 |
| Common Brass | H85 | CuZn15 | 2.024 | CuZn15 | CW502L | CuZn15 | C23000 | C2300 |
| Common Brass | H80 | CuZn20 | 2.025 | CuZn20 | CWS03L | CuZn20 | C24000 | C2400 |
| Common Brass | H70 | CuZn30 | 2.0265 | CuZn30 | CWS05L | CuZn30 | C26000 | C2600 |
| Common Brass | H68 | CuZn33 | 2.028 | CuZn33 | CW506L | CuZn35 | C26800 | C2680 |
| Common Brass | HS5 | CuZn36 | 2.0335 | CuZn36 | CW507L | CuZn35 | C27000 | 2700 |
| Common Brass | H63 | Cu2n37 | 2.0321 | Cu2n37 | CWS08L | CuZn37 | C27200 | C2720 |
| Common Brass | HB2 | Cu2n40 | 2.036 | Cu2n40 | CVS09N | CuZn40 | C28000 | C3712 |
| Common Brass | H60 | CuZn38Pb1.5 | 2.0371 | CuZn38Pb2 | CV608N | CuZn37Pb2 | C35000 | / |
| Lead Brass | HPb59-1 | CuZn40Pb2 | CZ120() | England | / | C37000 | C3710 | |
| Lead Brass | HPb59-3 | CuZn40Pb3 | C2121Pb3 | England | / | C37710 | C3561 | |
| Lead Brass | HPb60-2 | CuZnS9Pb2 | C2120 | England | / | C37700 | C3771 | |
| Lead Brass | HP562-2 | Cu2n38Pb2 | CZ119 | England | / | C35300 | C3713 | |
| Lead Brass | HPb62-3 | CuZn36Pb3 | CZ124 | England | / | C36000 | C3601 | |
| Lead Brass | HPb63-3 | CuZn36Pb3 | CZ124 | / | C35600 | C3560 | ||
| Common Brass | H59 | CuZn40 | CZ109 | / | C28000 | C2800 | ||
| Common Brass | H62 | CuZn40 | CZ109 | England | / | C27400 | C2720 | |
| Common Brass | H65 | CuZn35 | CZ107 | England | / | C27000 | C2680 | |
| Common Brass | H68 | CuZn30 | CZ106 | England | / | C26000 | C2600 | |
| Common Brass | H70 | CuZn30 | CZ106 | England | / | C26000 | C2600 | |
| Common Brass | H80 | CuZn20 | CZ103 | England | / | C24000 | C2400 | |
| Common Brass | H85 | CuZn15 | CZ102 | England | / | C23000 | C2300 | |
| Common Brass | H90 | CuZn10 | C2101 | England | / | C22000 | C2200 | |
| Common Brass | H96 | CuZn5 | England | / | C210C0 | C2100 | ||
| Red Copper (No. 0 Oxygen Free) | TT0 | / | / | / | C10100 | C1011 | ||
| Red Copper (No. 1 Oxygen Free) | TU1 | OF-Cu | / | / | C10200 | C1020 | ||
| Red Copper (No. 2 Oxygen Free) | TO2 | OF-Cu | / | / | C10200 | C1020 | ||
| Copper (Copper 1) | T1 | OF-Cu | / | / | C10200 | C1020 | ||
| Copper (Copper 2) | T2 | SE-Cu | / | / | C11000 | C1100 | ||
| Copper (Copper 3) | T3 | / | / | / | / | C1221 | ||
| Copper (Deoxy Phosphate 1) | TP1 | SW-Cu | / | / | C12000 | C1201 | ||
| Copper (Deoxy Phosphate 2) | TP2 | SF-Cu | / | / | C12000 | C1220 | ||
