Non-Magnetic Copper-Nickel Alloy Flat Wire 0.6*3mm CuNi6 For Low-Voltage Circuit Breakers

Non-Magnetic Copper-Nickel Alloy Flat Wire 0.6*3mm CuNi6 For Low-Voltage Circuit Breakers

Product Description

Chemical Content, %

1. Composition: It is a copper-nickel alloy with approximately 94% copper and 6% nickel.

2. Physical properties:

• Density: It has a density of about 8.9 g/cm³.
• Resistivity: The electrical resistivity at 20 °C is 0.1 Ω·mm²/m, which is relatively higher than that of pure copper, making it suitable for certain resistance applications.
• Melting point: The melting point is around 1095 °C.
• Coefficient of thermal expansion: From 20 °C to 400 °C, the coefficient of thermal expansion is 17.5 × 10⁻⁶ /K.
• Specific heat capacity: At 20 °C, the specific heat capacity is 0.380 J/gK

​3. Mechanical properties:

• Strength: It has a yield strength of 110 MPa and a tensile strength of 250 MPa (for a 1.0 mm sample), showing relatively good mechanical strength.
• Elongation: The elongation is 25% (for a 1.0 mm sample), indicating a certain degree of ductility.

4. Other properties:

• Temperature resistance: It can be used at temperatures up to 220 °C and has good stability at high temperatures.
• Magnetic properties: It is non-magnetic.
• Corrosion resistance: It has good corrosion resistance in the atmosphere at 20 °C, but the corrosion resistance is relatively poor in some specific gas environments such as those containing sulfur.

DIN spools are available for the package as per your requests.

Stranded or bunch wires are available if you need.

Enamelled wire can be tailor-made.

Mechanical Properties

Our advantages:

a) Tankii can provide high quality material, excellent design, precise manufacturing,complete specifications, considerate and integrity serivices.
b) Tankii can provide all kinds of electric heating alloy material and elements, including customized products.
c) Tankii can provide a complete solution for you.
d) OEM service can be provided.
e) Product selection
f) Process optimization
g) New product development

Product picture: round wire

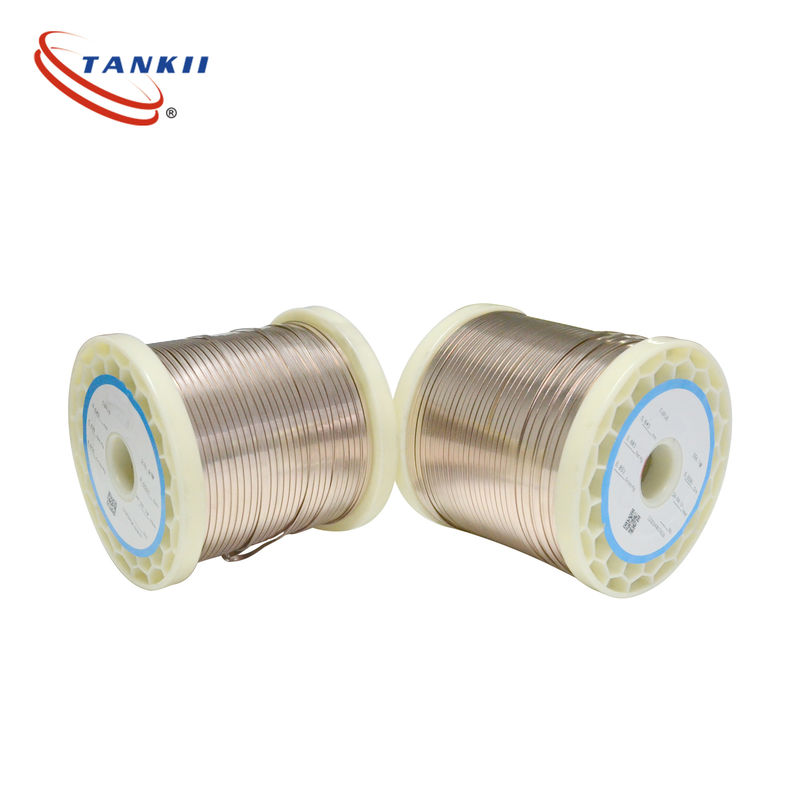

Flat wire:

Package:

Shanghai Tankii Alloy Material Co., Ltd. focus on the production of resistance alloy(nichrome Alloy, FeCrAl Alloy, copper nickel alloy), thermocouple wire, precision alloy and thermal spray alloy in the form of wire, sheet, tape, strip, rod and plate.

Please contact us for quotation.
