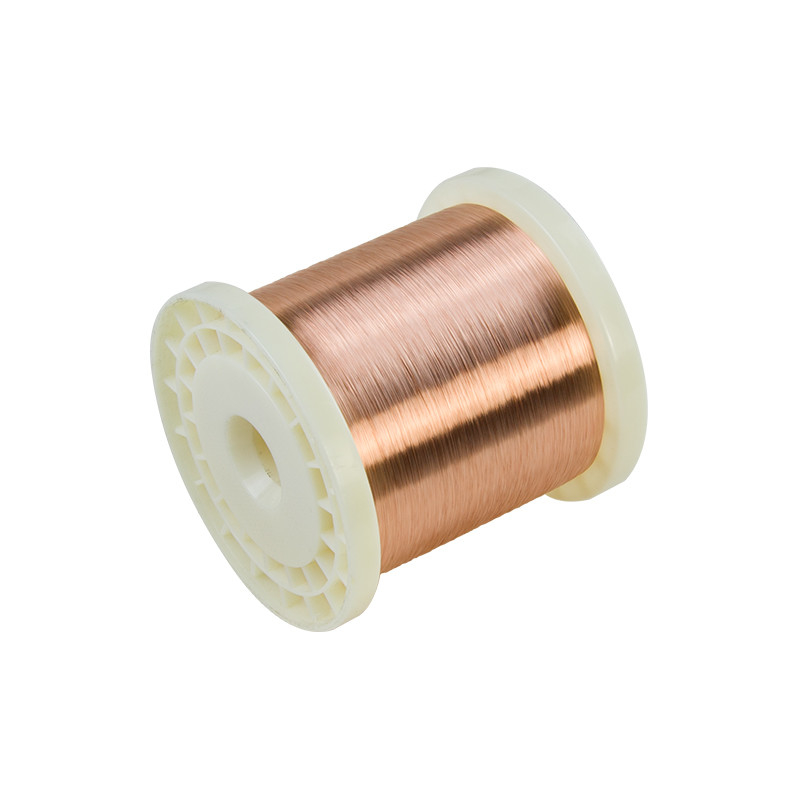

Low Resisitance Nickel Copper Alloy Wire (CuNi15) Copper Nickel Wire Bright Surface

Product Details

Place of Origin: Shanghai

Brand Name: TANKII

Certification: ISO9001

Model Number: Cuni 15

Payment & Shipping Terms

Minimum Order Quantity: 30kg

Price: negotiable

Packaging Details: spool,coil,carton,wooden pallet or box

Delivery Time: 8-20 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 200+ton+month

Get Best Price
Contact Now
Specifications
Highlight:
Material:
Nickel,copper,manganese
Composition:
Ni15%,Mn1%,Cu:bal
Surface:
Bright
Condition:
Soft
Application:
Cable,shunt,automobile
Material:
Nickel,copper,manganese
Composition:
Ni15%,Mn1%,Cu:bal
Surface:
Bright
Condition:
Soft
Application:
Cable,shunt,automobile
Description
Low Resisitance Nickel Copper Alloy Wire (CuNi15) Copper Nickel Wire Bright Surface

Low Resisitance Nickel Copper Alloy Wire (CuNi15) Copper Nickel Wire Bright Surface



Copper nickel alloy,which has low electric resistance,good heat-resistant and corrosion-resistant, easy to be processed and lead welded.It is used to make the key components in the thermal overload relay,low resistance thermal circuit breaker, and the electrical appliances.It is also an important material for electrical heating cable.It's similar as s type cupronickel.



Principally destined for the manufacturing of low temperatures electric resistances so as heating cables, shunts, resistances for automobile, they have a maximum operating temperature of 752F.

They do not therefore intervene in the field of resistances for industrial furnaces. Those are alloys of chemical composition copper + nickel with addition of manganese with a low resistivity (from 231.5 to 23.6 Ohm. Mm2/ft).

The most known, CuNi 44 (also called Constantan) presents the advantage of a very low temperature coefficient.

China Grade from Tankii alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44

Packing: Spool, carton, pallet: Coil, waterproof paper
Tankii Alloy is the best alloy wire and alloy strip producer in China



Form Specification Supply Form Others
Sheet Thickness:0.40-4.75mm,General Width:1000,1219,1500mm Whole Coil or piece of it Cold Annealed,Surface 2B,2E
Plate Thickness:4.76-60mm,Width:1500,2000,2500mm,Length:3000,6000,8000,8500mm(Under 10mm plate can be coiled) Whole Coil or piece of it Single hot rolling,Solid solution annealed state,Surface 1D
Belt Thickness:0.10-3.0mm,Width:50-500mm Whole Coil or Specified size Cold Annealed,Surface 2B,2E
Bar & Rod Rolled barΦ5-45mm,Length≤1500mm Polished Bar(circle,Square) Solution annealing,descaling
Forged barΦ26-245mm,Length≤4000mm
Weld tube Outer diameterΦ4.76-135mm,Wall Thickness0.25-4.00mm,Length:≤35000 mm Base on your requirement Use for PHE
Seamless Tube Outer diameterΦ3-114mm,Wall Thickness0.2-4.5mm Base on your requirement Use for PHE
Wire Outer diameterΦ0.1-13mm Base on your requirement Ni & Ni alloy, Ti & Ti alloy
Forged piece roundness and square alloy Base on your requirement Steel, Alloy
Flangs All kinds of Flangs Base on your requirement Steel, Alloy
Welding Material Coil wire Φ0.90mm/1.2mm/1.6mm Base on your requirement Certificate of Origin:America, Sweden, Britain, Germany, Austria, Italy, France.
Straight WireΦ1.2mm/1.6mm/2.4mm/3.2mm/4.0mm
Welding rodΦ2.4mm/3.2mm/4.0mm
Tube Elbow, three links, four links, different diameter size Base on your requirement Ni & Ni alloy, Ti & Ti alloy
Explosive bonded laminate Raw Sheet Thickness≥2mm Base on your requirement Ni & Ni alloy, Ti & Ti all

294:Common Name:

Alloy294, Cuprothal294, Nico, MWS-294, Cupron, Copel, Alloy45, Cu-Ni102, Cu-Ni44, Cuprothal, Cupron, Copel, Neutrology, Advance, Konstantan

A30:Common Name:
Alloy 30, MWS-30, Cuprothal 5, Cu-Ni 23, Alloy 260, Cuprothal 30 HAI-30, Cu-Ni2, Alloy 230, Nickel Alloy 30

A90: Common Name:
Alloy 95, 90 Alloy, MWS-90, Cu-Ni 10, Cuprothal 15, Cu-Ni 10, Alloy 320 Alloy 90, Alloy 290, #95 Alloy, Cuprothal 90,HAI-90,Alloy 260,Nickel Alloy 90

A180: Common Name:
Alloy 180, 180 Alloy, MWS-180, Cuprothal 30, Midohm, Cu-Ni 23, Nickel Alloy 180
