CuNi2/Alloy 30 Copper Nickel Alloy Wire for Resistance

Name: CuNi2/Alloy 30 Copper Nickel Alloy Wire for Resistance
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: CuNi2
Price: 20 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Model Number: CuNi2

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: USD+20USD/KG

Packaging Details: Cardboard box

Delivery Time: 10days

Payment Terms: T/T

Supply Ability: 10TON/MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                            CuNi2 Copper Nickel Alloy Wire, Alloy 30 Copper Nickel Alloy Wire, Resistance Copper Nickel Alloy Wire


Density:

8.9g/cm3

Density:

8.9g/cm3

Description

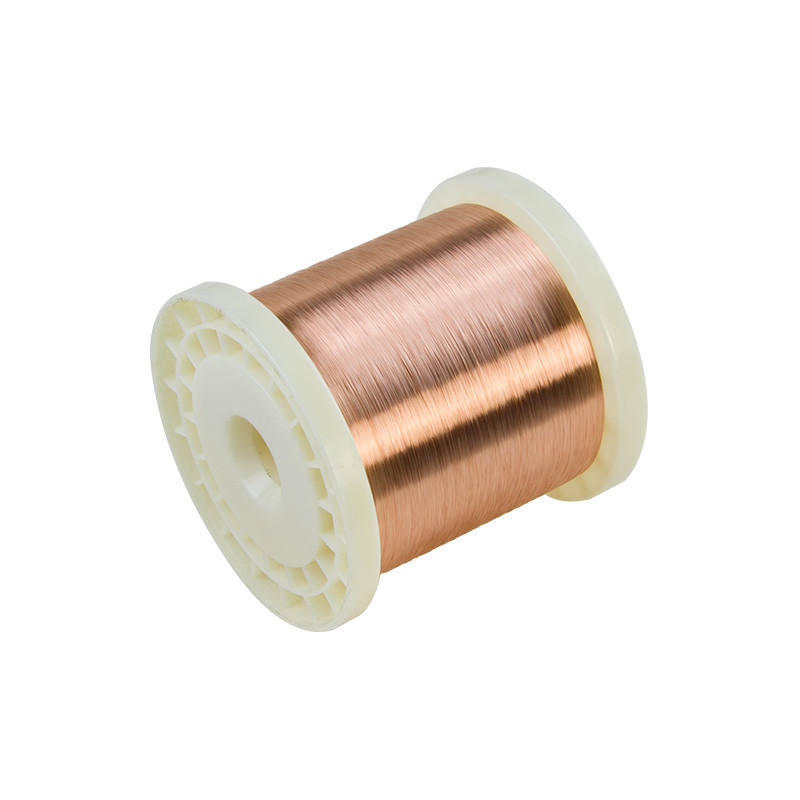

CuNi2/Alloy 30 Copper Nickel Alloy Wire for Resistance

Product Description

CuNi2 / Alloy 30 Copper Nickel Alloy Resistance Wire

Product Description
CuNi2 alloy wire: low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.
Chemical Content, %

Ni	Mn	Fe	Si	Cu	Other	ROHS Directive
						Cd	Pb	Hg	Cr
2	-	-	-	Bal	-	ND	ND	ND	ND

Mechanical Properties

Max Continuous Service Temp	200ºC
Resisivity at 20ºC	0.05±10%ohm mm2/m
Density	8.9 g/cm3
Thermal Conductivity	100(max)
Melting Point	1280ºC
Tensile Strength,N/mm2 Annealed,Soft	140~310 Mpa
Tensile Strength,N/mm2 Cold Rolled	280~620 Mpa
Elongation(anneal)	25%(min)
Elongation(cold rolled)	2%(min)
EMF vs Cu, μV/ºC (0~100ºC)	-8
Micrographic Structure	austenite
Magnetic Property	Non

CuNi2/Alloy 30 Copper Nickel Alloy Wire for Resistance 0

CuNi2/Alloy 30 Copper Nickel Alloy Wire for Resistance 1

CuNi2/Alloy 30 Copper Nickel Alloy Wire for Resistance 2
